Display Problem In LCD TV Repaired

By on September 9, 2015
singer lcd tv repair















lcd tv repair

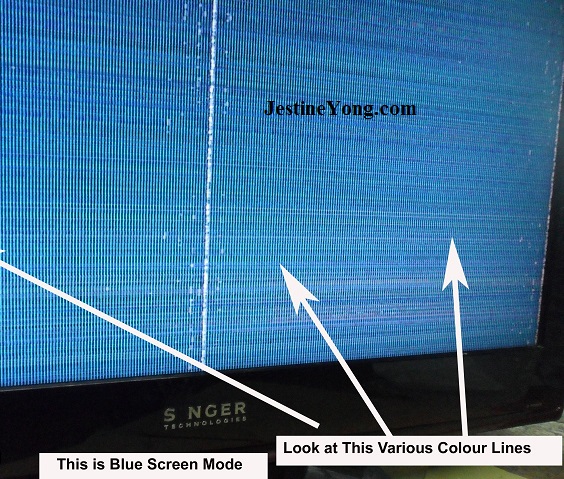

The complaint of this Singer LCD TV was distorted display with a white vertical line across the screen.

2

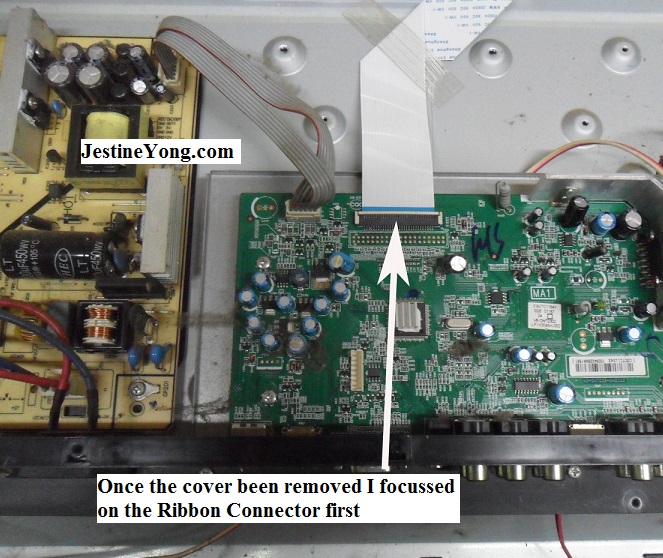

From experience, whenever I see distorted display in the screen the first thing I do would be to check the ribbon cable contacts (connector).

If the contact is dirty, rusted or filled with dirt, it would not be a surprised to see the TV screen with distorted picture or with some weird symptoms.

lvds cable

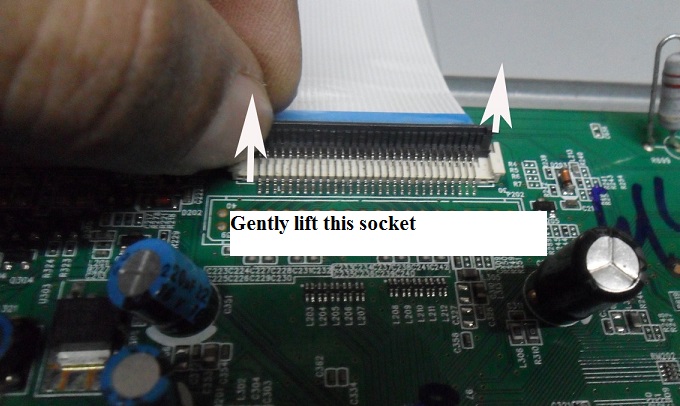

Once you have located the connector, then gently lift up the socket cover so that the cable can be removed.

singer lcd tv repaired

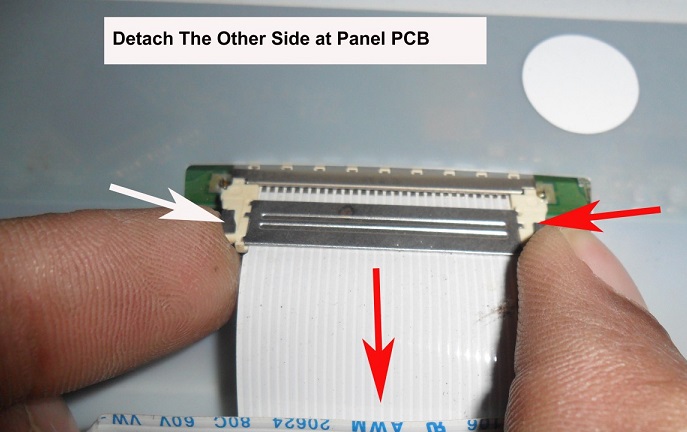

Detach the other side of the cable too as you need to clean both sides to fully restore a good picture.

singer lcd tv repair

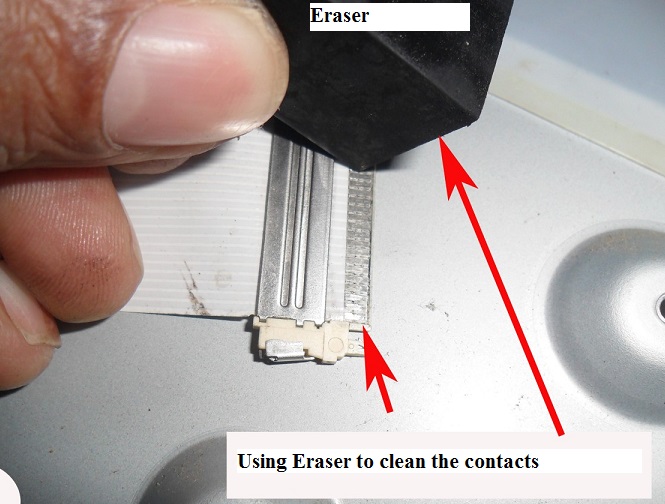

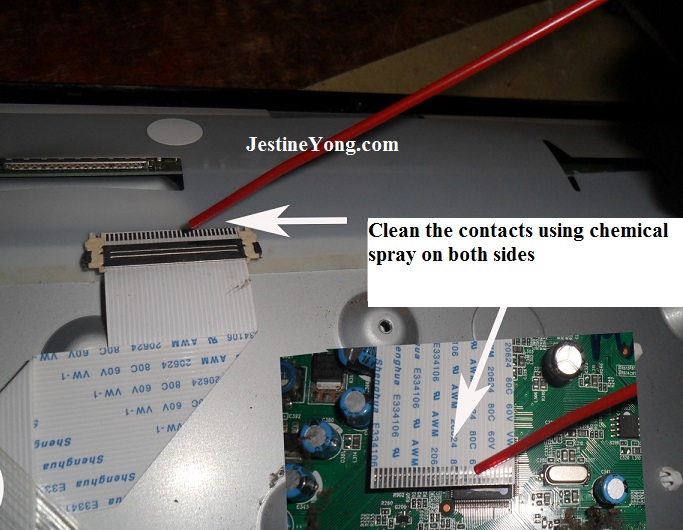

You can use chemical spray contact cleaner and eraser (bottom photo) to remove the dirt and make the contact pins shinning again.

eraser repair contact

7

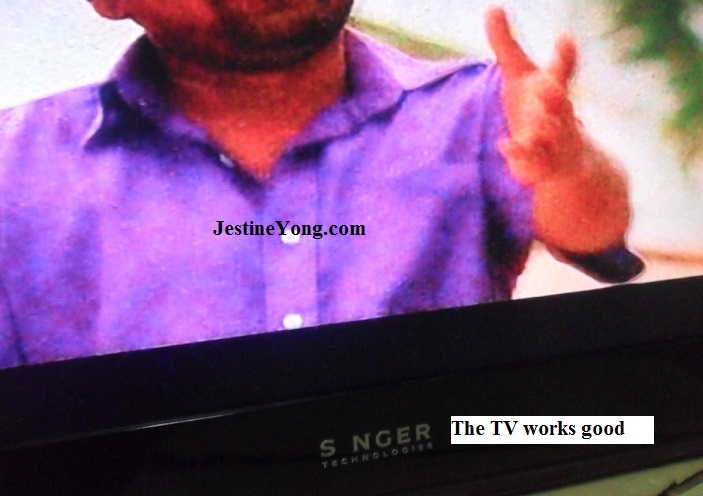

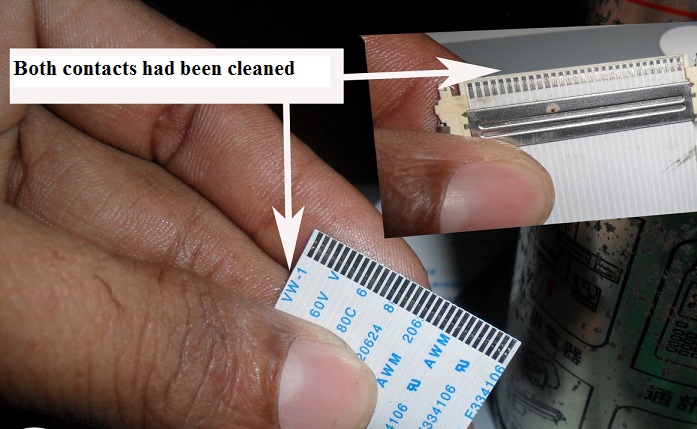

Once the connectors are properly ‘serviced’, you can gently insert the cables back to its location. Do not force it as you insert it otherwise the cable contact pins can bend. This will create another problem and need more time to solve it. So do it safely in the first time to avoid unnecessary problem. After fixing back the cables and powered On, look at the TV screen below:

singer tv repair

Conclusion- If after cleaning the ribbon cable and the problem still persist this means it is not the contact problem. In that case, you may have to check the LCD Panel, T-con board or even the motherboard. If you need to increase the repair knowledge of LCD /LED TVs you can check out Damon’s and Kent’s ebooks.

suranga

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check out his previous repair article in the below link:

http://www.jestineyong.com/no-power-in-hitachi-tv-repaired/
