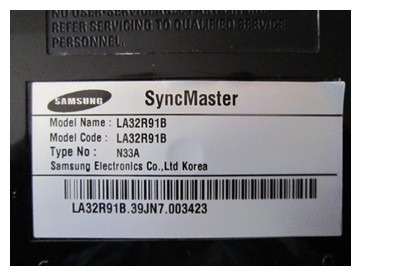

Guest Post- SAMSUNG 32″ LCD TV LA 32R91B IS REPAIRED.

By on April 30, 2013



lcd tv repair samsung

samsung ld tv repairedlcd tv repair samsung

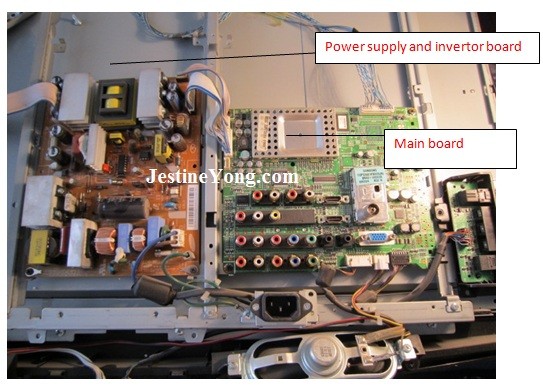

All the functions of this lcd tv were good except  the contrast and brightness controls. When I decreased the contrast and brightness to 50 %, after few minutes it automatically shot up again to 100%. My first suspect was the corrupted program file of EEPROM IC . Since I do not have the original programs I tried to check on the voltages to see if the voltages stable or not.

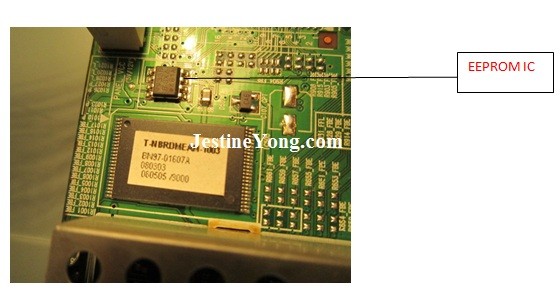

samsungtv2



repair lcd tv

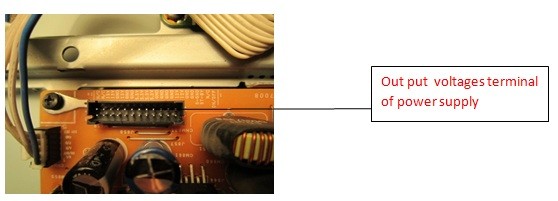

I measured the output voltages from the power supply and found two voltages were good (13v and 12 v). But the 5 volt line seems to be unstable and fluctuated. After that I saw an electrolytic capacitor that was bulged located along the 5 volt line.

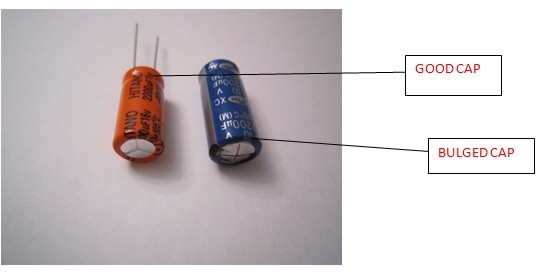

bulged ecaps

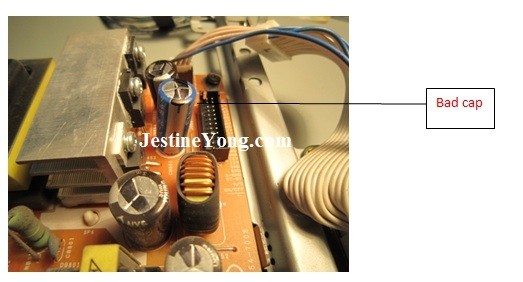

The cap value was 2200 micro farad @ 10 volt 105 C and when tested with my capacitance meter it showed only 32 micro farad. The capacitance value was way out. I checked the same capacitor again with my ESR meter and it showed 2 ESR ohm. By right it should have about 0.02 ESR ohm. After a new replacement was done the control functions of the contrast and brightness  of the TV was back to normal again.

samsungtv5

Note:  I changed the bad cap with new one.   2200micro @ 16volt 105 c   and this works with no problem.

Conclusion : An  exact  and stable voltage is a must for the supply of microcontroller IC.

Enjoy repairing

beh iran







Beh from Iran



Hope you have enjoyed this repair article by Beh and please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.
