Laptop Intermittent Battery Charging Fixed

By on August 24, 2015
laptop power cable repair















I have got one laptop with intermittent battery charging problem. The customer said while he was operating laptop suddenly the brightness of laptop screen turned dim and at the same time the battery stop charging.

Just to confirm the problem I connected the laptop for inspection and I observed while moving power adapter, the above symptom does happened. So this could be problem either with adapter or with laptop DC socket. Further test I concluded that it was the power adapter problem. By wiggling the power adapter cable I could know at which part of the cable was broken internally. The problem was near to the output dc jack. I then cut open the insulation rubber and found that the internal DC wire had a small cut causing it to touch on the outer ground wire.

laptop power cable repair

laptop power cable repaired

Since I do not have the spare DC output jack with me, I had to try repair the broken cable. The things that you need are:

  • Sharp blade
  • Heat shrink tube different sizes.
  • Cigarette lighter
  • And of course soldering material.

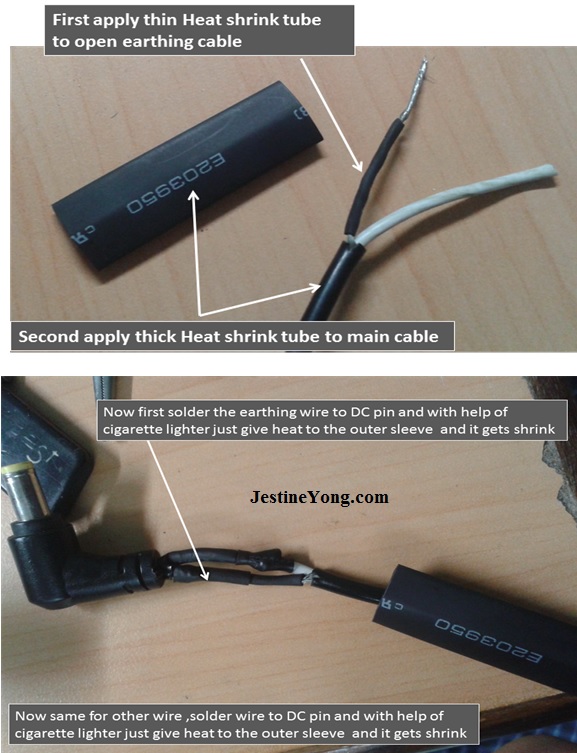

First of all cut the cable to required length.

repair notebook cable

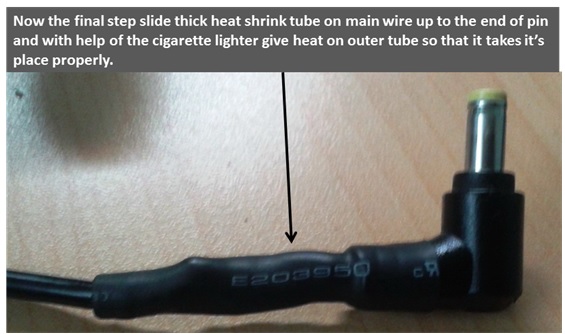

Now final step:

laptop power adapter cable repair

With this final touch up your device is ready to work. After the process I have plugged the adapter to the laptop and it starts working without problem.

yogesh















This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.




Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check out his previous repair article in the below link:

http://www.jestineyong.com/safe-soldering-iron-stand/
