LG Stereo System DVD CD Tray Not Open Repaired

By on October 23, 2015



lg dvd player repair















lg dvd tray not open

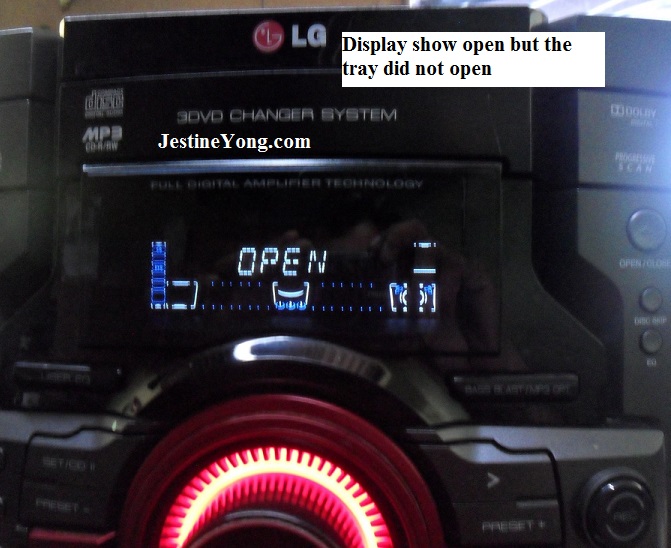

The complaint of this LG stereo system DVD 3 DISC changer was  the display showed open but the tray did not open.

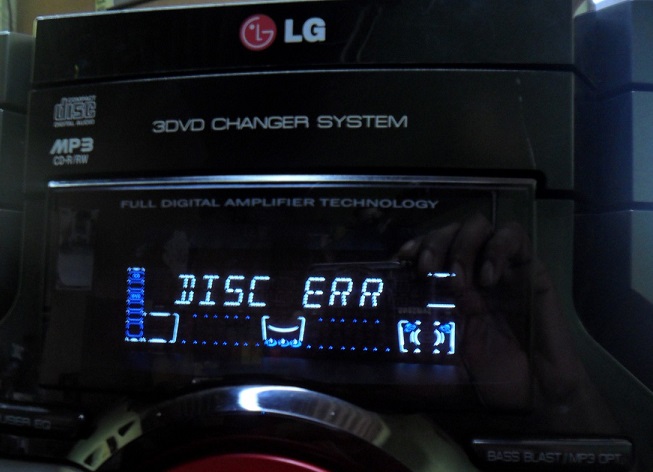

After about 2 to 3 minutes an error message of “Disc Err” appeared! Even though you have pressed many times, the tray just refused to open.

lg dvd disc error

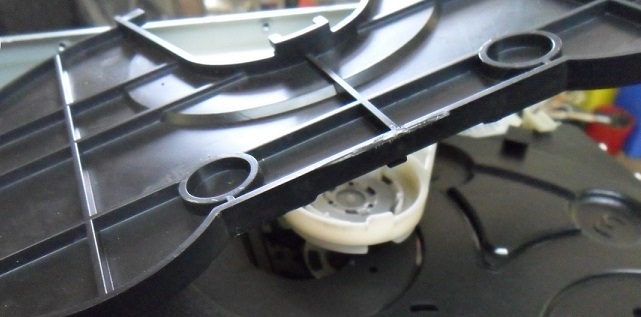

I opened the back cover and then lifted up the lens cover as seen from the photo below:

3

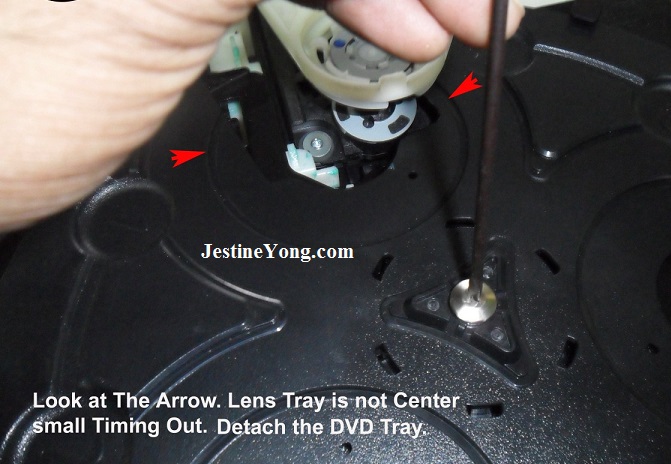

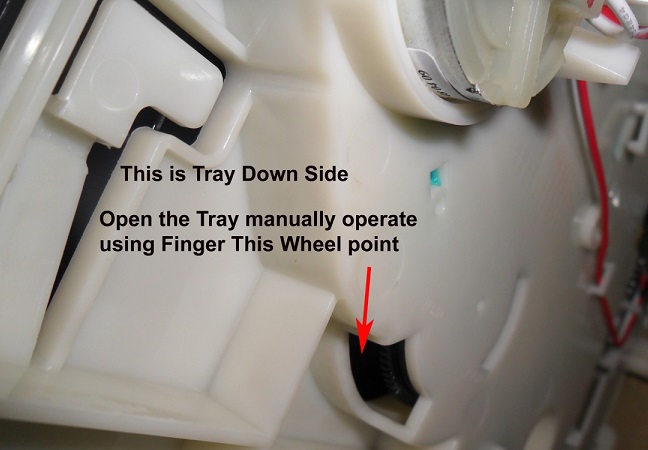

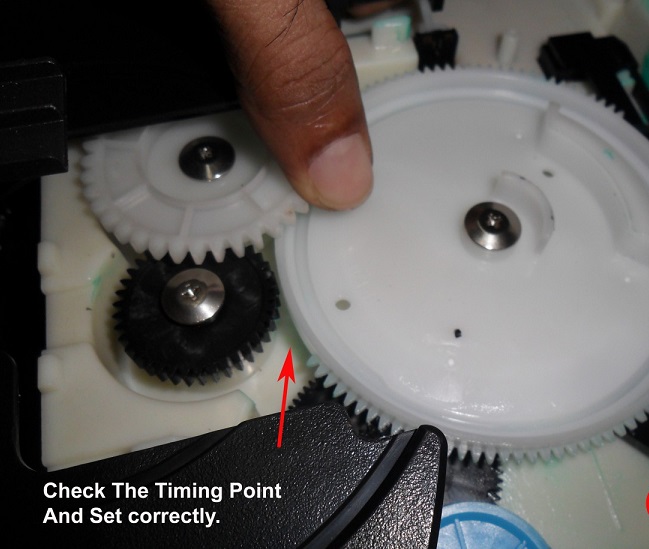

I then performed the alignment check. Please check out the steps below:

4

adjust dvd lg

lg dvd alignment

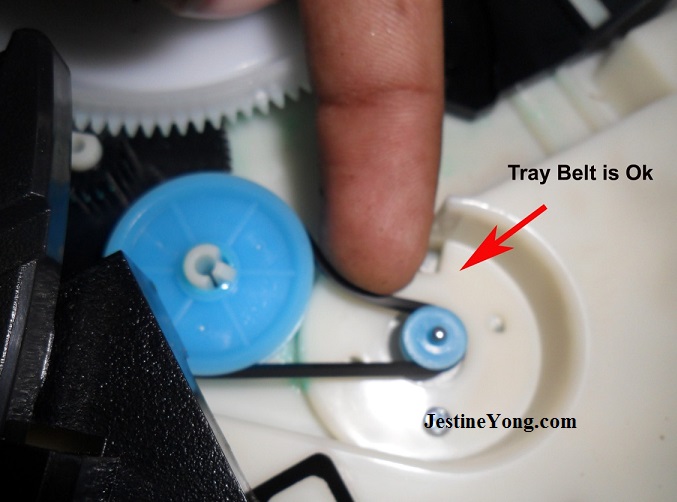

dvd belt

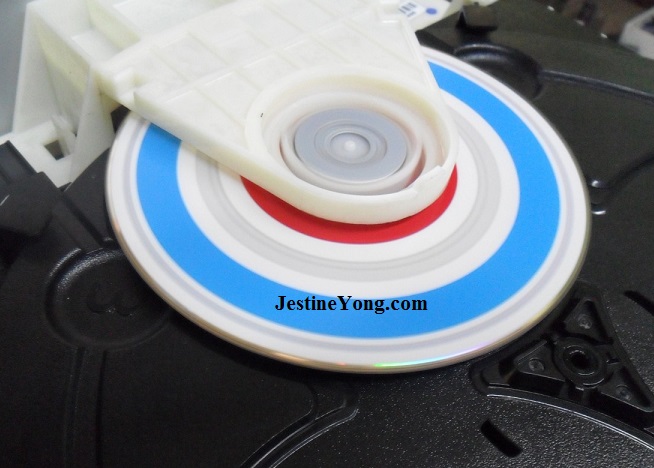

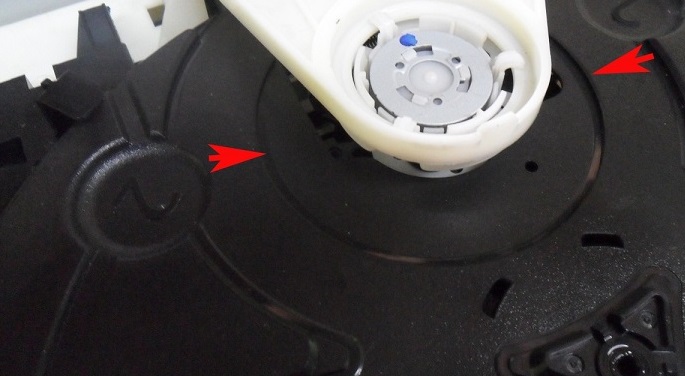

The lens is center now and the set should be working fine. Let’s test it again.

dvd lens center

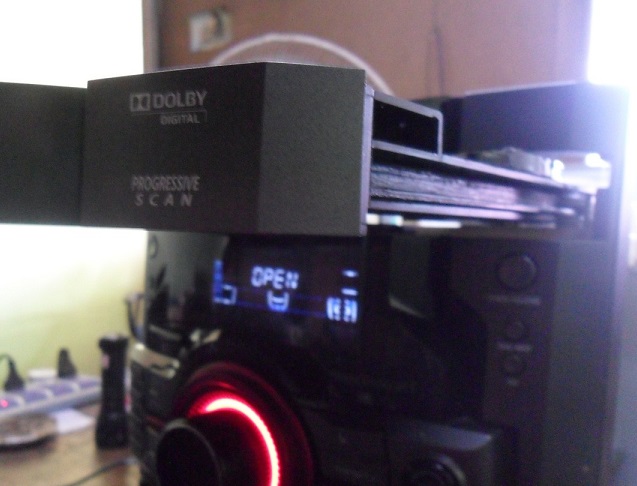

Finally the tray was open and it can play the DVD disc as shown in the below photos.

8

9

repair lg dvd player

Conclusion- Sometimes the belt problem also can cause the tray eject problem. I suggest that you visit another website by Jestine Yong for more information on how to solve the tray eject problem:

http://www.electronicrepairguide.com/repairing-sony-hifi-system.html



Happy Repairing

suranga

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check out his previous repair article in the below link:

http://www.jestineyong.com/small-speaker-horn-repair/



Likes(108)Dislikes(1)





9 Comments

  1. Yogesh Panchal

    October 23, 2015 at 1:52 pm

    Suranga,
    Good job , thanks for sharing.

    Likes(0)Dislikes(0)
  2. Andre Gopee

    October 23, 2015 at 8:44 pm

    I had similar problem and did some alignment and change the belt and it work fine. Thanks for sharing.

    Likes(0)Dislikes(0)
  3. Albert Hoekman, Holland

    October 23, 2015 at 9:22 pm

    Good article Suranga. Thanks for sharing!

    Likes(0)Dislikes(0)
  4. Albert van Bemmelen

    October 23, 2015 at 11:47 pm

    Sometimes the drive plateau won't open, not because of a bad rubber snare or a bad alignment of the mechanic parts. It often is the magnetic top that pushes the disc onto the motor rotor wheel. So it will not leave while turning. Because the permanent Magnet has often just become too strong to elevate and free the disc. This happens with XBOX360 players but also with pc dvd/cd drives, or Philips DVD players for tv. I have confirmed this with an easy test. I weakened the Magnetic field by adding a few layers from a thin adhesive sticker between motor rotator and top magmetic arm. This remedy often did solve this problem immediately.

    Likes(2)Dislikes(0)
    • Humberto

      October 30, 2015 at 10:13 pm

      Albert, I'm going to share soon an article similar to what you say, but regarding to DVD-units in PCs. I'll describe carefully how I solve these situations.

      Likes(1)Dislikes(0)
  5. Henrique Jorge Guimarães Ulbrich - Brazil

    October 24, 2015 at 2:43 am

    I also had a similar problem with my own old Sony Sistem (from 1996). It was hard to find the belts. I've found a belt set for Aiwa that were not exactly the same size, but it worked. Thanks, Suranga.

    Likes(1)Dislikes(0)
    • Humberto

      October 30, 2015 at 10:16 pm

      Sometimes you can find similar belts in old and unused DVD-Drive or CD-Drive of PCs.

      Likes(1)Dislikes(0)
  6. Ulises Aguilar Pazzani

    October 24, 2015 at 10:23 am

    Good Job Sir

    Likes(0)Dislikes(0)
  7. Humberto

    October 30, 2015 at 10:17 pm

    Good repair suranga. Keep up

    Likes(1)Dislikes(0)
