Marantz Remote Control No Power/No Display Repaired

By on November 10, 2014
marantzremotecontrol repair

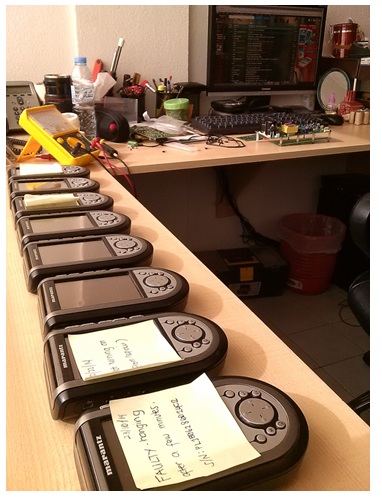

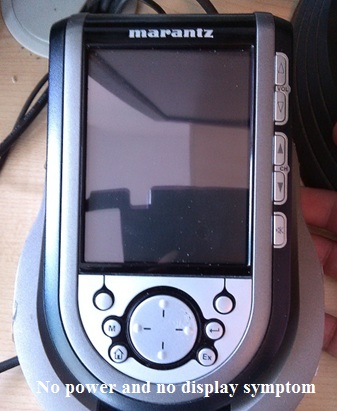

I received some Marantz Remote Control from one of the clients. The complaints were no power/ no display. This complaint is very common on this device. But this remote is not like a normal remote control. This is a programmable remote control you can use it especially for your TV, DVD Player, Satellite Receiver, Amplifier, VHS Player and also Lighting Control and AC( Air Conditioning) in short  for Home Automation use. Here is the picture:

marantz remote control repair

These remote controls could develop some other problems too for example not responding when touching on the screen (touch screen) and “hang” while using it. It needs firmware update in order to solve these kinds of problems.



Read the article below how I have solved the no power/no display problem.

marantz remote control repairs

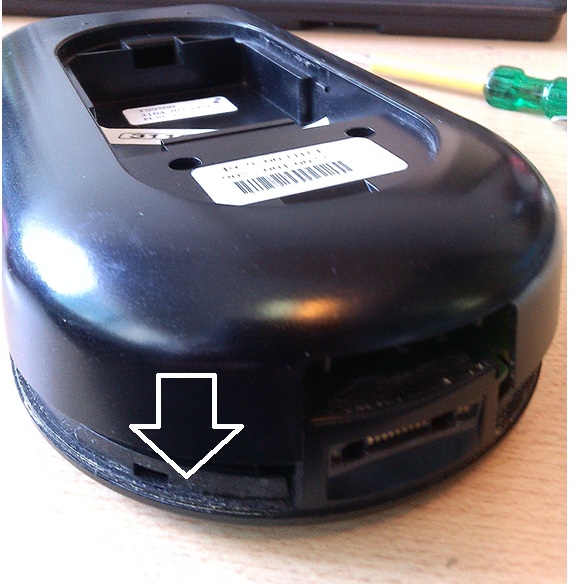

First thing I do was to remove the two screws as seen from the picture below:

 marantz remote control repairing

marantz remote control repairings

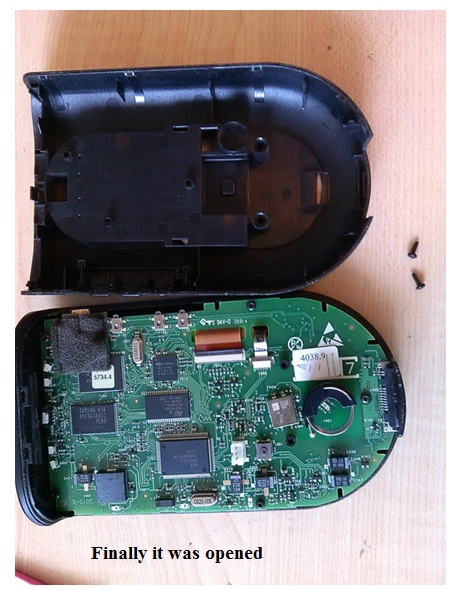

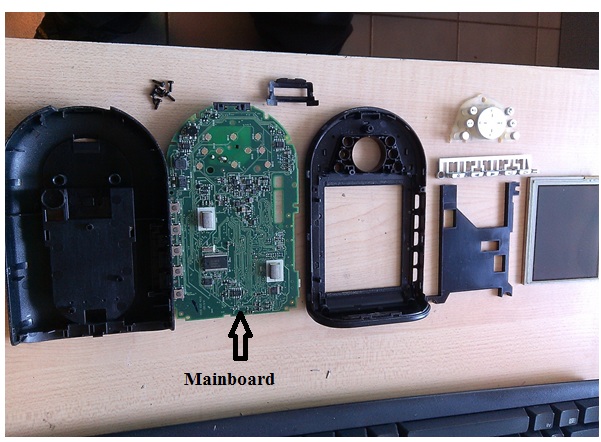

Then open from the bottom as seen from the above photo. Finally I saw the main board inside but there was no sign of damage parts.

marantzremotecontrolrepair



Next I removed the ribbon cable for the touch screen and connect again the battery to check if the problem is from the touch screen. If the touch screen is the cause of the problem once the ribbon cable is disconnected there will be power once it is turned On. But still there was no power.  So I had to remove all the internal parts and left only the mainboard to troubleshoot.

 marantzremotecontrolrepairs

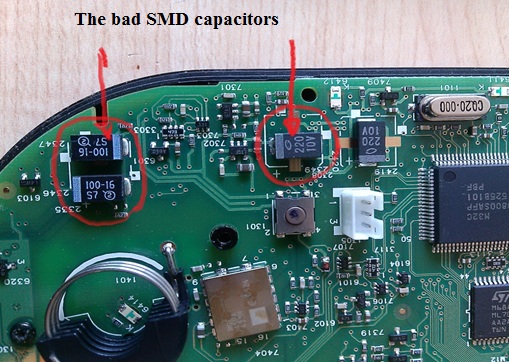

The first thing I did on the mainboard is to check on the components that are related to the base docking station from the charger. I checked on the big components first which were the SMD Tantalum capacitors and found three of them to be defective.

marantzremotecontrolrepairing

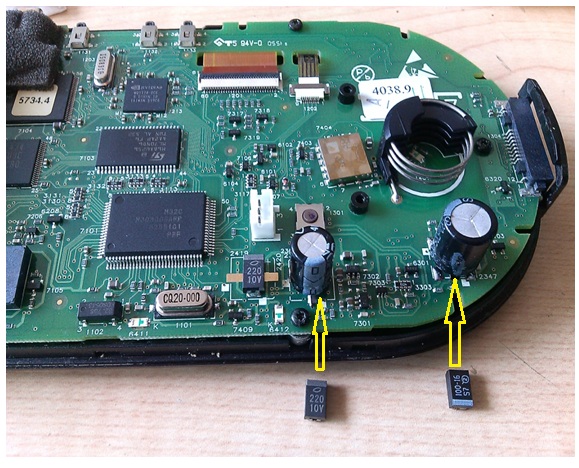

The one with the 220uf 10 volt I replaced it with 470uf 16 volt. The two capacitors 100uf/16 volt I replaced with 330uf 35 volt. I have used the replacement because I do not have the SMD Tantalum capacitors and the good thing is both replacement although is bigger in size the remote control cover would still be able to close. It was a test using the normal type of electrolytic capacitors but found it to be working good.

 marantzremotecontrolrepairings

And after I have replaced the capacitors see what happen.

marantzremotecontrol repairs

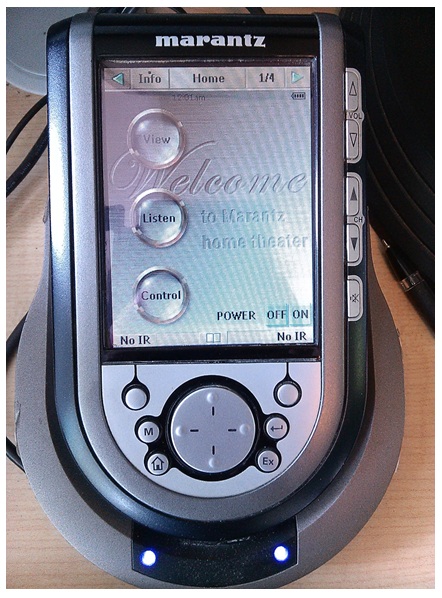

There was display and also charging perfectly on the docking station.

Note: In order to update the firmware one has to install the latest software installer to calibrate the touch screen.

This article is contributed by Fernando Frias from Abu Dhabi UAE. He is currently working in a Technologies company as a technician.



Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.



You may check out his previous repair article below:

http://www.jestineyong.com/samsung-lcd-tv-repair/



Likes(228)Dislikes(0)
