Measuring Resistors Lower Than One Ohm

By on October 23, 2008

 digitalmeter

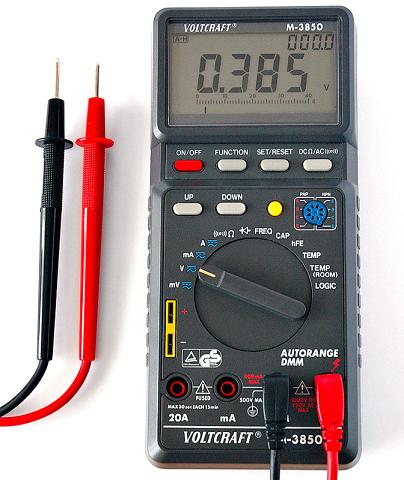

Digital multimeter have the capabilities to perform many functions like measuring resistance, current, voltage, diode test, continuity test, frequency test and etc. Although the digital multimeter could test resistance up to 40 mega ohm but do you know that it does not have the capability to accurately test resistance lower than one ohm? Yes, if you don’t believe try take out one 0.22 ohm resistor and test it with your meter, i guess the result that you will get will be between 0.4 or even 0.5 ohm. The digital multimeter just can’t test such a low ohm resistor.

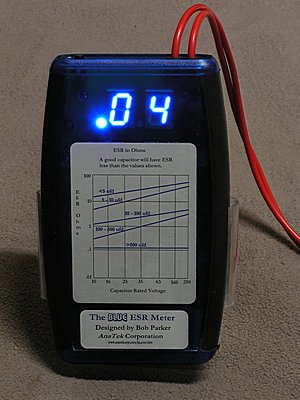

Of course one can always try to direct replace the low ohm resistor and retest the set but as an electronic repairer we must find out (with proof) that indeed the low ohm resistor is the cause of the problem. If you really need to test out the actual low ohm resistor value then i suggest that you use the Blue ESR meter that has the capabilitiy to measure ohm range from 0.01 ohm up to 99 Ohm.

blueesr

You would not believe that by using the meter i could clearly see the exact ohm value of the low ohm resistor. A 0.33 ohm resistance gone high in value to 0.5 ohm caused the power supply to blink! This give me a satisfaction because i’m 100% know that the resistor indeed have problem compare when i just direct replace the resistor and retest the set without knowing exactly how many percent of the low ohm resistor value had changed.

Although i don’t always use the Blue ESR meter to test low ohm resistor, but having the meter made me ever ready to tackle problem that cause by defective low ohm resistor and capacitors as well. Click HERE for more information about Blue ESR meter.
