Motor Fault In Telesonic Stand Fan

By on August 25, 2015
stand fan repair















fan repair

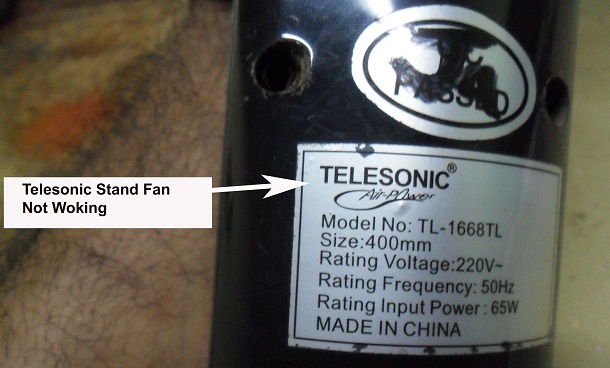

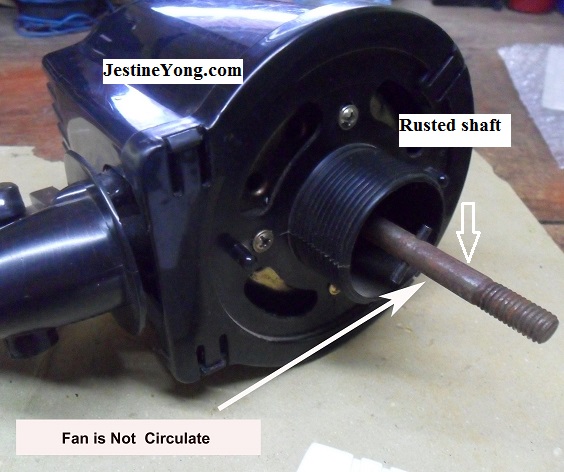

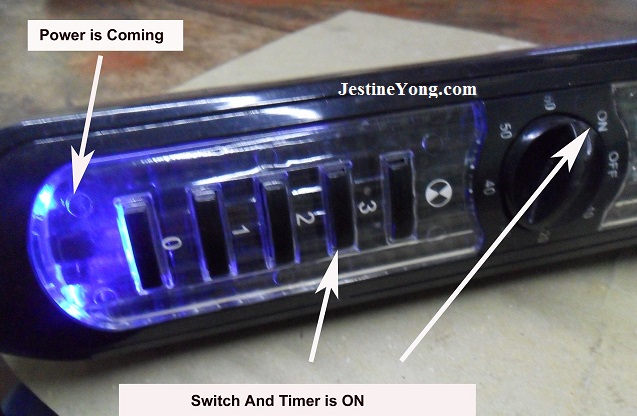

The complaint of this Telesonic fan was the Power and Timer was On but the fan not rotating.

fan repairing

stand fan repair

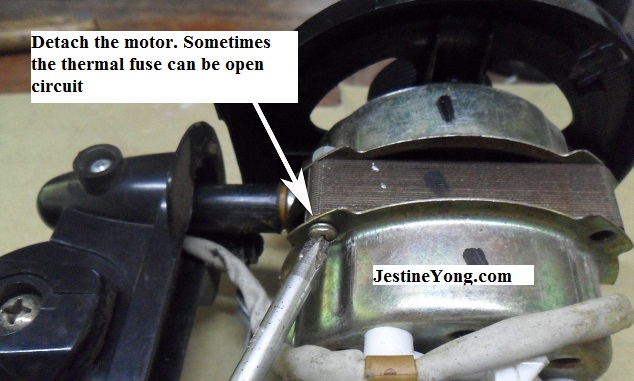

I opened the fan cover and removed the fan motor screws. This is to check if there is any thermal fuse reside in it.

Sometimes this thermal fuse can be opened circuit so replacing only the fuse may bring the fan back to life again.

fan motor repair

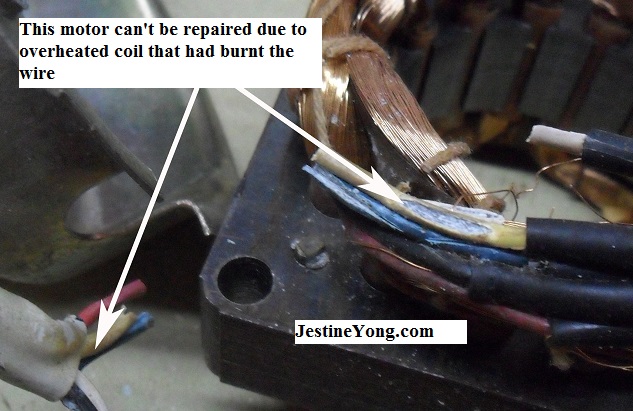

I did not see any thermal fuse built in but what I saw was the coil wires were burnt. This means it was overheated and there is no way you can repair it. The only way is to replace with a fan motor.

fan motor bad

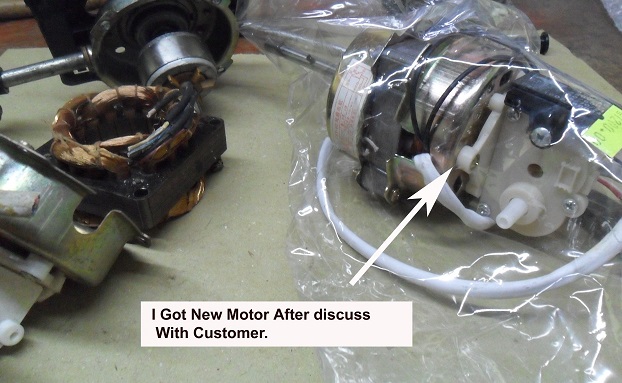

After spoken to my customer he agreed to pay for the new fan motor. So I went ahead to get a new fan motor -see the photo below.

replace fan motor

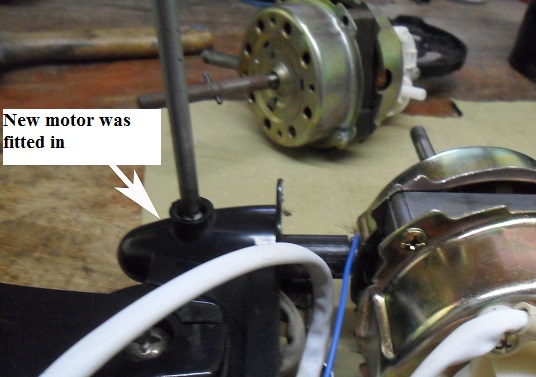

It was not tough to fix in the new fan motor as all the screws holes are all in original position. Just install the fan to its original location and fix in the screws and you are done.

how to install fan motor

One thing that took me sometime was the fan motor wires. First take a snapshot of the original wiring with your digital camera or camera from your phone. By referring to the photo, you are now ready to cut away the old wiring and solder in the new wiring.

fan control button wiring

Once done all the soldering, I powered up the fan and saw the shaft was rotating and I was happy as my job was done. See you again in the next article.

stand fan repaired

suranga

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check out his previous repair article in the below link:

http://www.jestineyong.com/transformer-problem-in-usb-fm-receiver/







Likes(105)Dislikes(0)

8 Comments

  1. yogesh Panchal

    August 26, 2015 at 12:21 am

    Congratulations! for this fix , You are lucky to get exact replacement of motor.

    Likes(4)Dislikes(0)
  2. Robert Calk

    August 26, 2015 at 5:56 am

    Good job, Suranga. I found the thermal fuse in a fan I repaired for my son hidden in the wiring.

    Likes(2)Dislikes(1)
  3. Waleed rishmawi

    August 26, 2015 at 9:13 am

    How much was the motor worth? In my country it is a lot cheaper to buy a new one than replacing the motor. I hope it was worth your time and money. Good repair though

    Likes(4)Dislikes(0)
  4. mike retz

    August 26, 2015 at 3:31 pm

    excellentjob! i have found that in fan motors a cause of failure is the motor bearing run out of oil and the motor slowly slows down and finally seizes. the motor windings get hot and the thermal fuse opens. thats what its there for. never jump it because that motor can get red hot and start the plastic housing on fire if the motor winding does not open in time. that thermal fuse is sometimes buried deep in the windings and sometimes hard to find and thats a reson people simply through the fan away and buy a new one. thermal fuses come in diferent trip temperatures and just putting in any fuse will not give proper protection. make sure you use the rite fuse with the same rating.

    Likes(1)Dislikes(0)
  5. Chris

    August 27, 2015 at 6:55 pm

    Congratulations!

    Likes(0)Dislikes(0)
  6. Gurpreet

    August 29, 2015 at 10:27 pm

    Hello

    It is good to take photograph before detaching wire because after fault repair you again have to set up all things back. Thanks for sharing article.

    Likes(0)Dislikes(0)
  7. Humberto

    September 2, 2015 at 1:31 am

    Hi, you are lucky in finding a similar motor. In my country it's very hard to get a new one and we have to wind the coils, an expensive process.

    Likes(0)Dislikes(0)
  8. Tesfaye kebede

    October 30, 2016 at 11:02 pm

    thank you for your successful repairing article

    Likes(0)Dislikes(0)
