Parker Probe Handheld Magnetic Particle Yokes Repaired

By on January 23, 2015
parkerproberepairings

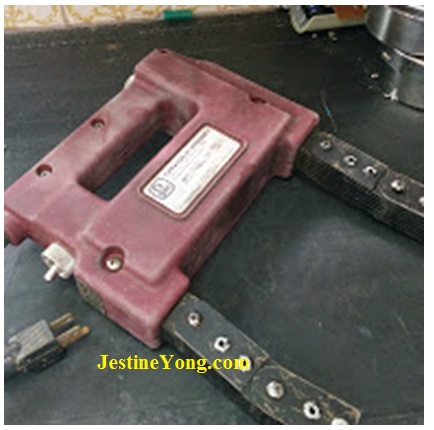

A customer brought this piece of equipment… This is called an AC/DC Magnetic particle Yoke. The purpose of this equipment is to test welding joint for cracks and fractures in the industry. The complaint was that they plug it into an onsite generator and it started to smoke. The below picture is the equipment… it is made by Parker Probe. Here is a link to the probe. http://www.tedndt.com/cat/cat50_Parker.php

parker probe repair

There are 5 screw and nuts to be remove before you can open the probe.

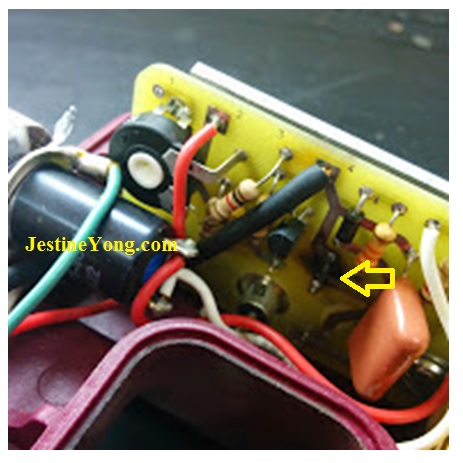

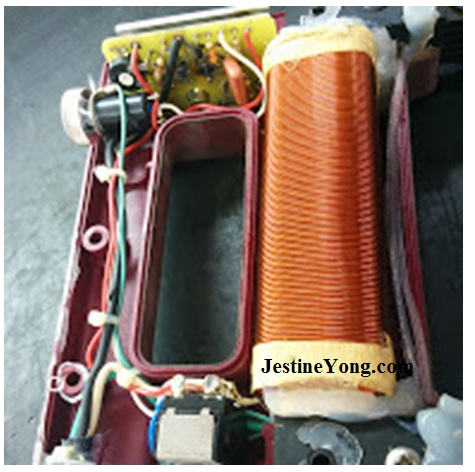

Inside there is only one circuit board with a large heat sink.

 parker probe repairs

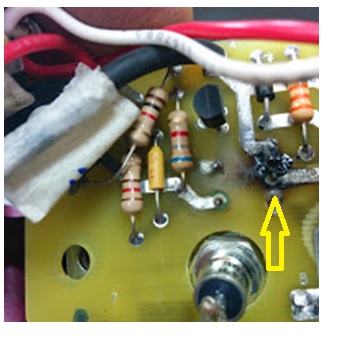

From the picture below you can see burnt marks on the board

parker probe repairing

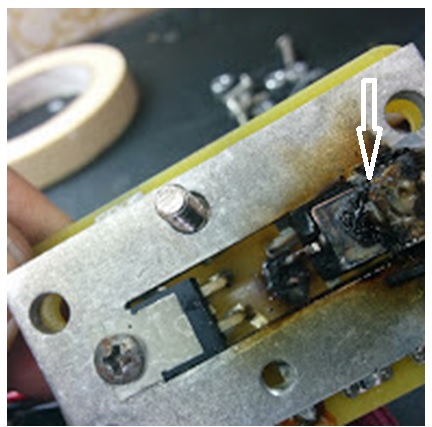

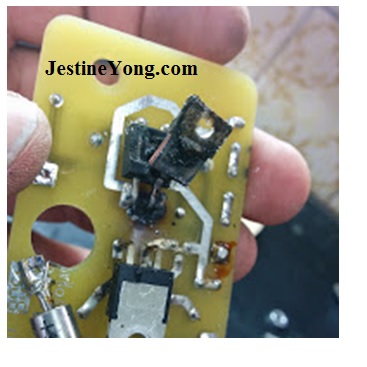

On the other side you can see the damage component. It is burnt beyond recognition.

 parker probe repairings

Luckily I have another Yoke just like and I was able to get the part No. This was a Triac part No. MAC224A8 which is a 40 amp, 200 thru 800 Volt.  I replace the damage component and check the other components and found the SCR on the other was also blown Part No. 2N2508

 parkerproberepair

Some of the circuit trace was damage and I had to make new trace using wire. I forgot to take a shot of the trace.

parkerproberepairs

After I replaced the bad components the equipment came back to life. I tested the AC side and then the DC side and it work perfectly. Mission accomplish.

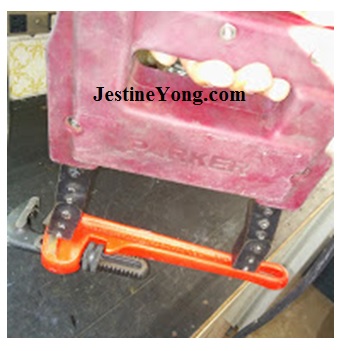

I am lifting a 14” Pipe wrench with the switch is on the AC side and then DC side:

parkerproberepairing

This article was prepared for you by Andre Gopee from Calitech Limited Trinidad West Indies.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

By the way if you have any good repair article that you want me to publish in this blog please do contact me HERE.



Likes(154)Dislikes(0)
