No Power In Samsung LCD TV Repaired

By on October 30, 2014



samsung lcd tv repairings

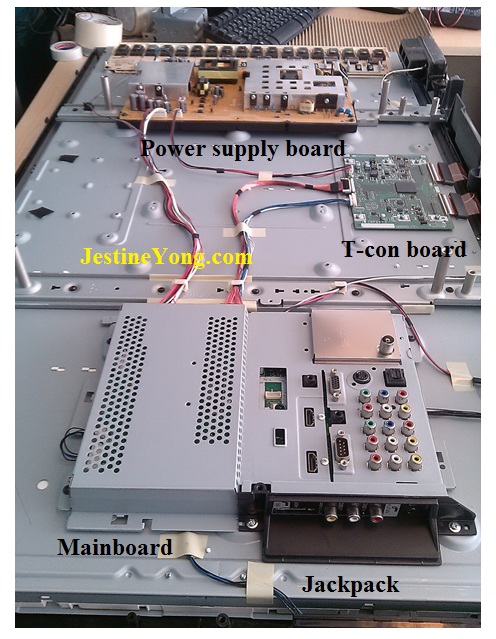

One of the clients in my company called me to check on his 65” Samsung LCD TV and the complaint was no power. I went to his villa and tested the LCD TV and the problem was indeed “no power”. The challenge that I had was about removing the LCD TV from the wall. I managed to remove it and placed it on a soft surface. After that I removed all the screws and successfully opened the back cover.

samsung lcd tv repairsamsung lcd tv repairs

The first component that I have checked was the main fuse and it was tested good. I further checked the main filter capacitor and there was 300VDC.

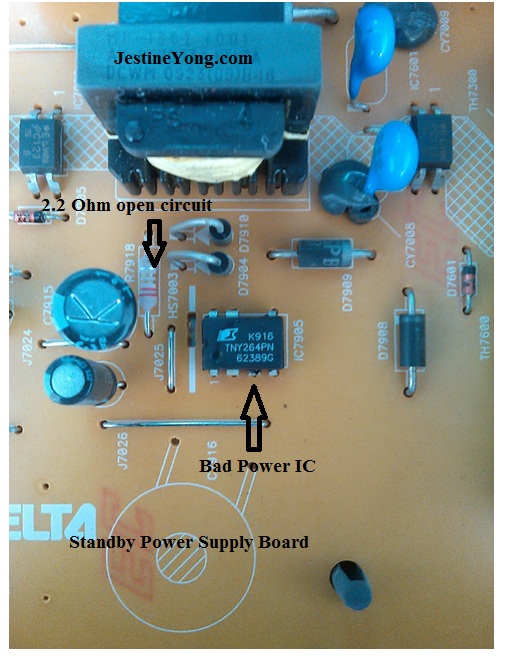

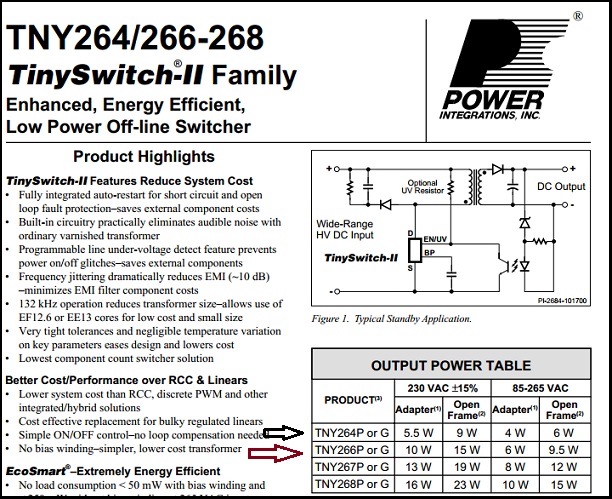

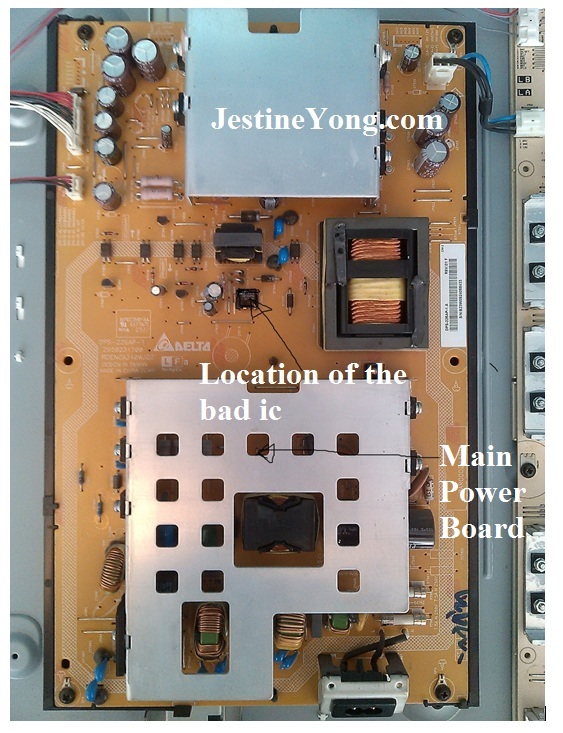

I continued to check on the standby power supply area and found a resistor 2.2 Ohm open circuit. This resistor was connected to the source pin of the TNY264PN IC (8 pins). All corresponding components were checked to be good. Since I do not have this part number I have used another part number TNY266PN.  TNY266PN has higher specification than TNY264PN- see the below picture:

tny264pn



samsung lcd tv repairingsamsunglcdtvrepair

After the replacement of the resistor and the power IC the LCD TV was brought back to life again.

This article is contributed by Fernando Frias from Abu Dhabi UAE. He is currently working in a Technologies company as a technician.
