Samsung Subwoofer Damaged By A Mouse

By on October 28, 2015
subwoofer repair

















samsung subwoofer repair

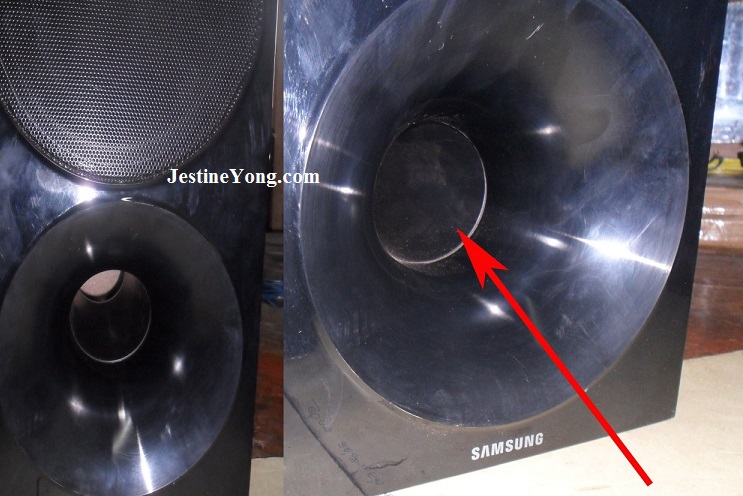

The complaint of this Samsung subwoofer was no sound and the customer said he saw a mouse went into that hole.

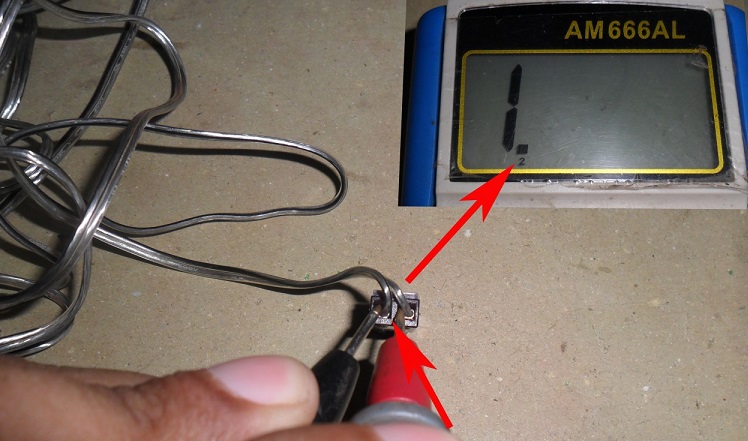

The first test I done on this subwoofer is to check the speaker Ohm and as expected there was no reading-see the photo below:

testing speaker

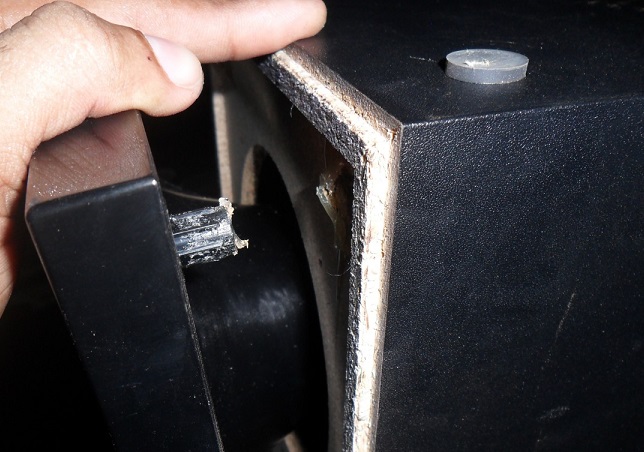

The next step was to detach the cover so that I could check what was wrong with it. In my opinion the speaker wire could have been broken.

open subwoofer

open speaker

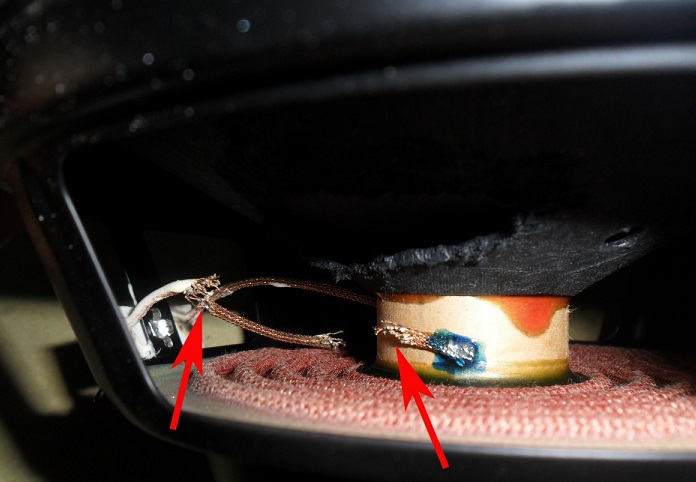

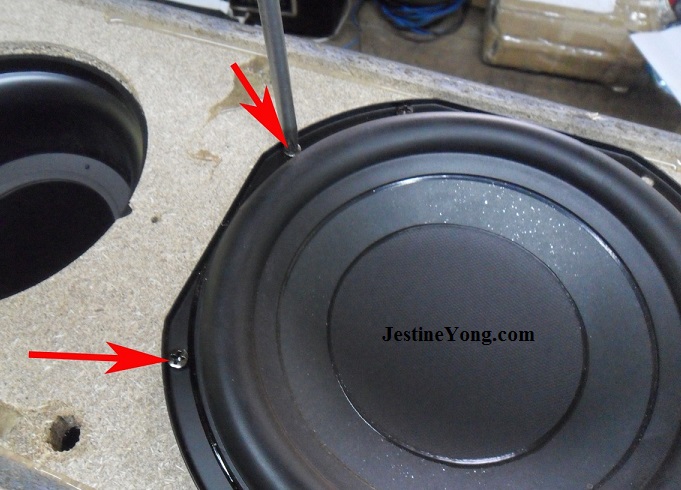

Once the screws of the speaker had been removed my guess was right-the speaker wire was torn and the culprit was the mouse-see the photo below:

broken speaker wire

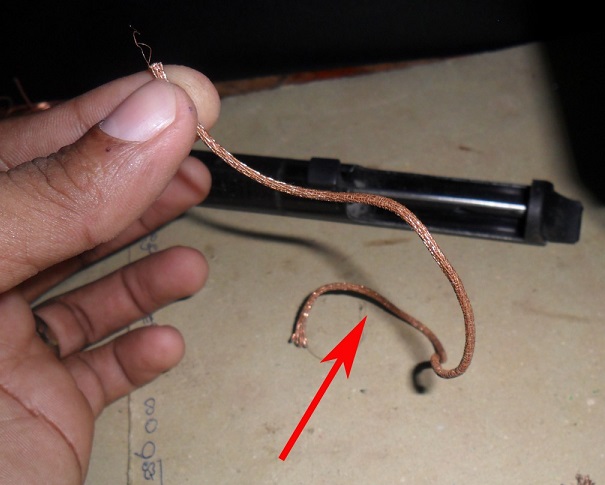

The next thing to do is to search for a new speaker wire and my compartment had one-see the photo below:

new speaker wire

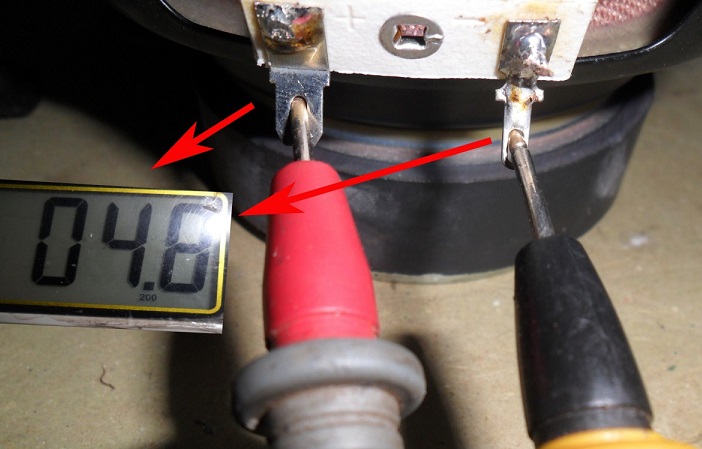

After done the soldering of the new wire onto the speaker I rechecked the speaker Ohm resistance and found that it shows 4.8 ohm which means it was good.

testing speaker ohm

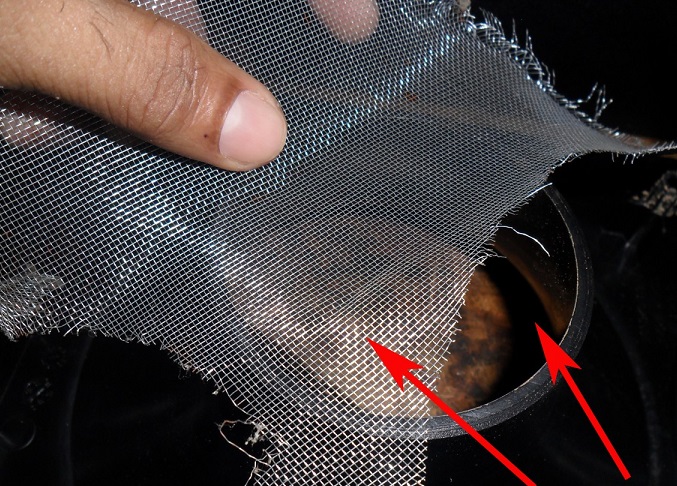

I knew that if the customer take back his subwoofer, I can guarantee that the same mouse will attack the speaker wire again thus I came out with a solution which is to put in a metal net to block the mouse from going into the subwoofer again.

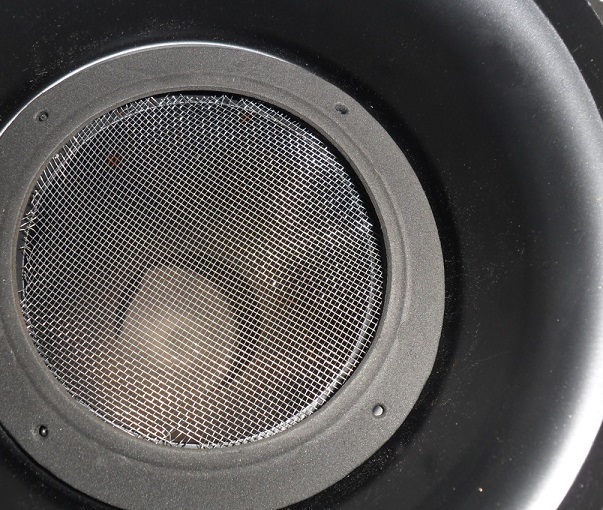

speaker net

fixing speaker net

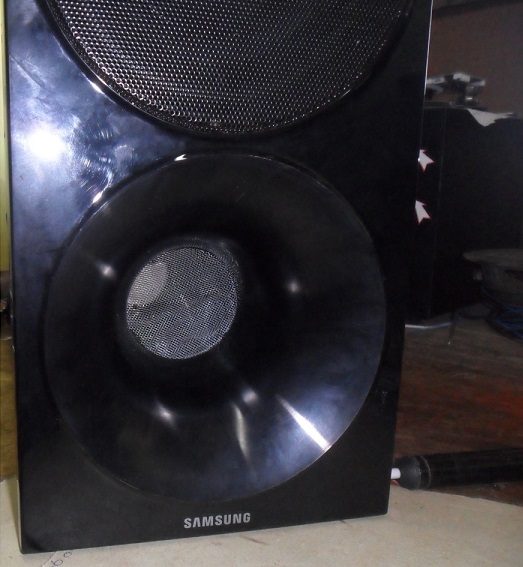

Take a look at my idea below and I hope the customer will catch the mouse soon.

repair speaker

suranga

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check out his previous repair article in the below link:

http://www.jestineyong.com/lg-stereo-system-dvd-cd-tray-not-open-repaired/
