Singer DVD Player Tray Can’t Fully Open

By on May 20, 2016
singer dvd player tray can't open

















Singer DVD Player Tray Can't Fully Open

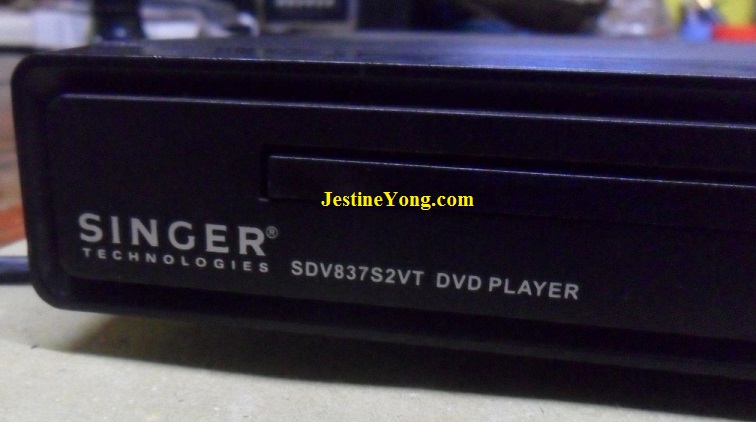

Customer sent to me this Singer SDV837S2VT DVD player with the complaint of the tray only coming out halfway.

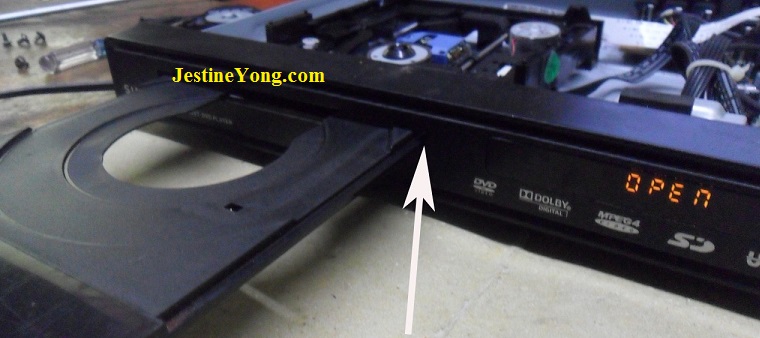

Usually this kind of problem is due to broken gear or the tray assembly need servicing (preventive maintenance). See the photo below of the tray being ejected halfway only.

Singer DVD Player repair

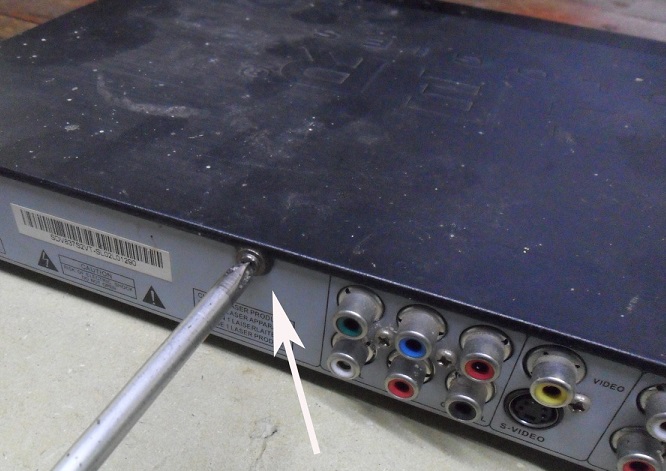

As usual, one has to open up the back screws in order to lift up the cover and to perform the checking.



how to open dvd player

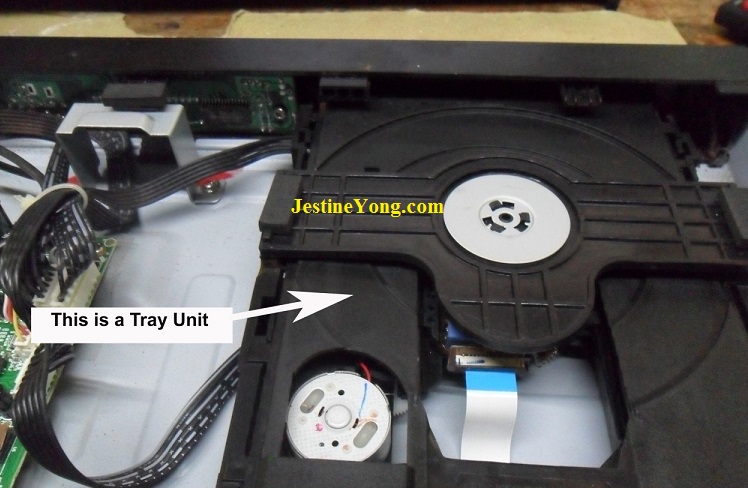

In the below photo, you could see how is the “Tray” look like. The Tray is where the CD landed on its platform. This means, if the tray can’t be opened then you can’t insert the CD.

how to open dvd player for repair

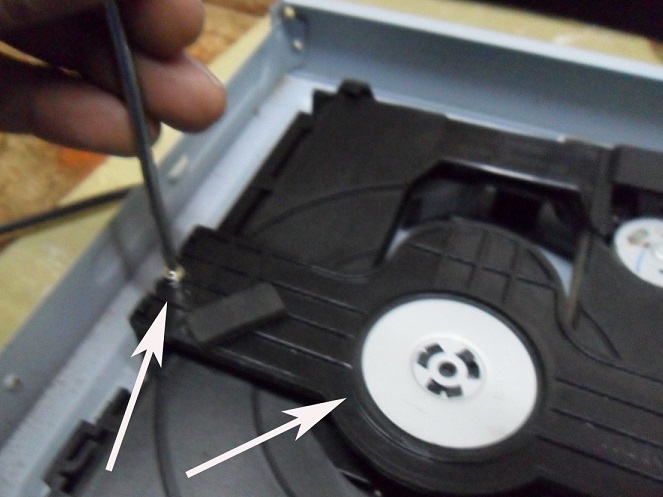

The DVD motor cap had to be removed in order to see what’s wrong with the assembly.

dvd repair

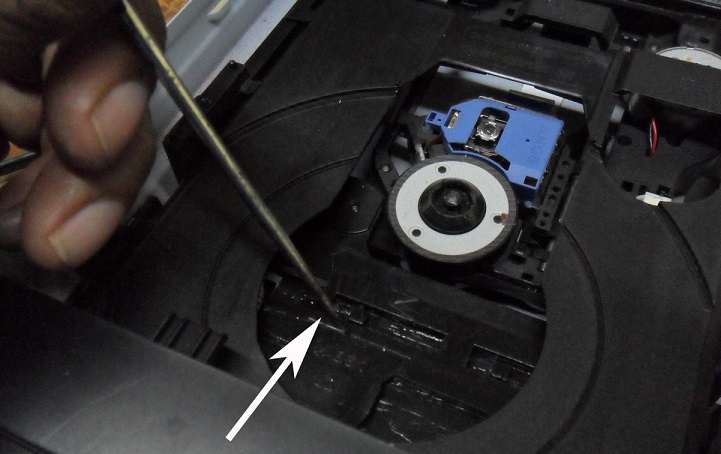

Now, open the tray manually with the help of a small flat tool. Be careful as not to break all the fragile plastic.

open dvd tray



Once opened I could see that the belt was loosen and need replacement. I then cleaned all the wheel with soft cotton.

service dvd tray

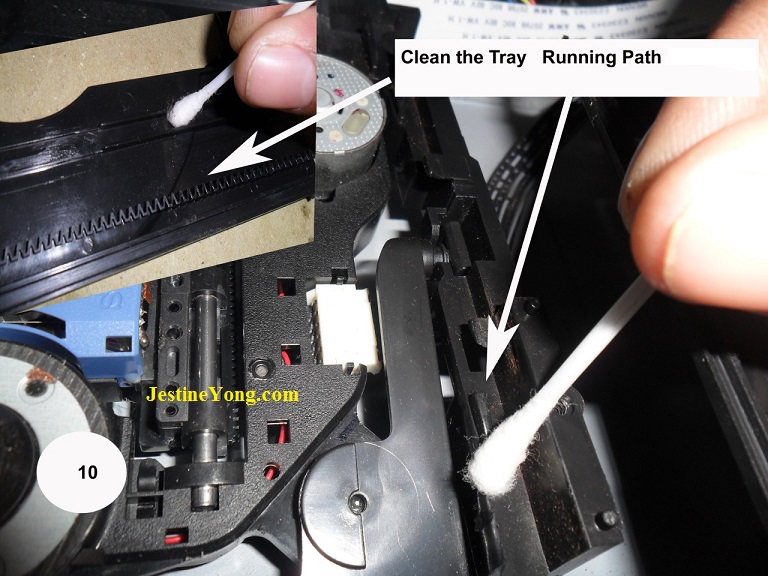

The tray running path also had to be cleaned.

dvd tray problem repai



Once the servicing and cleaning was done, I powered up the DVD again and this time the tray can be fully ejected. In this case, there was no parts being replaced. If you would like to learn how to repair DVD player you can check out this Ebook by Humphrey.

dvd repaired



suranga

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.

Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments. If you have electronic repair articles to share with us, please contact us HERE.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check out his previous repair article in the below link:

http://www.jestineyong.com/how-to-easily-locate-the-different-speed-wires-of-fan-motor/
