A Sony Play Station 3 Controller Problem Repaired

By on August 21, 2013
sonyplaystationrepairings

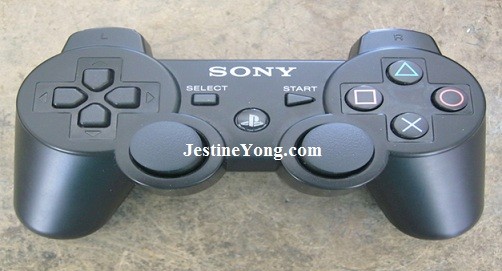

This blue tooth game controller was brought to my shop by a friend of mine. He said that this controller was working fine till his son spilled juice on it. As we all know that juice is liquid and this liquid has sugar and that is not good news for this controller. The buttons were sticky and were very hard to push.

 sonyplaystationrepair

The good thing about this guy, he brought me this controller right away and the first thing that I did was to take the battery out. So let us hope that the sugary liquid did not do any serious damage. So, here we go.

 sonyplaystationrepairs

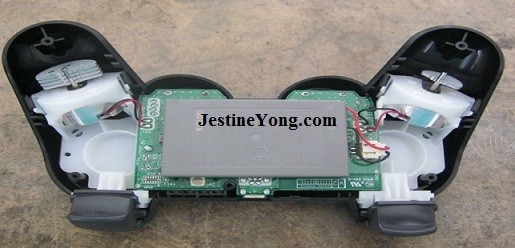

As you can see from the previous picture, the grey piece is the battery. The moment I took the battery out, I could see the main board. Sorry, I could not take more photos. I was busy working on this piece that I forgot to take photos of the process.

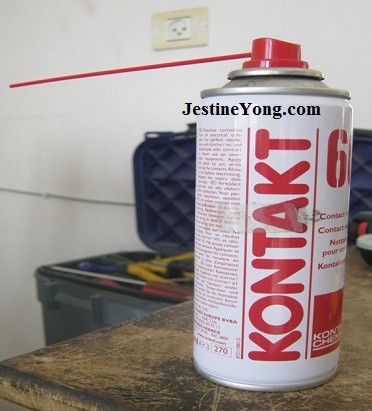

Anyway, I could not see any shorted parts but all the board was wet and sticky. I used a chemical solution to clean the board. It was very easy to clean the board but once I get to the buttons and the control sticks, it was hard because I could not reach inside. I was forced to use the contact spray that I usually use to lubricate and clean switches.

 sonyplaystationrepairing

I had to take every piece apart and clean very carefully. The most delicate thing I was dealing with was the flex cable inside. I had to be very careful when taking it out. It was a very fragile part and damaging it will make all the repair time wasted in vain.

Finally it was all cleaned up and all the parts looked nice and shinny. I had to put it back which was not hard to do. Once I did that and put the battery back in the socket, I could see the light coming on. There were about five red lights in a row flashing and I guess that was a good sign.

I plugged everything together and the controller worked just fine. There was a big smile on the customer’s face when he showed up to my shop and that made me smile as well. After all, we are here to serve and help others to the best of our ability. Mission Accomplished.

waleed rishmawi







This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment. Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

By the way if you have any good repair article that you want me to publish in this blog please do contact me HERE.
