ATX PSU modified into a car battery charger- part 1

By on April 14, 2016
atx power supply modification

















Some months ago a friend of mine gave me a main board of an old defective ATX PSU, just for me to use it as a spare parts source. All it was a populated PCB only. No covers, no cooling fan etc.

Well, some days ago, I had a phone call from my younger brother Aristos. He was explaining to me about some trouble he had with his car, specifically with a malfunctioning switch which recently left him with a totally flat battery, early in the morning, while he had to leave for work… During the discussion he started asking me about details in order for him to decide about buying a good car battery charger. Then I had the idea! To see what was wrong with that PCB I had available and instead of using it as a spare parts source I could possibly restore it and afterwards modify it making of it a 12V car battery charger for my brother.

You can see this PCB below:

 ATX PSU modified into a car battery charger

 I found all those missing parts from whatever salvaged I had available and managed to restore it in an acceptable final appearance of a PSU, after repairing and modifying it.

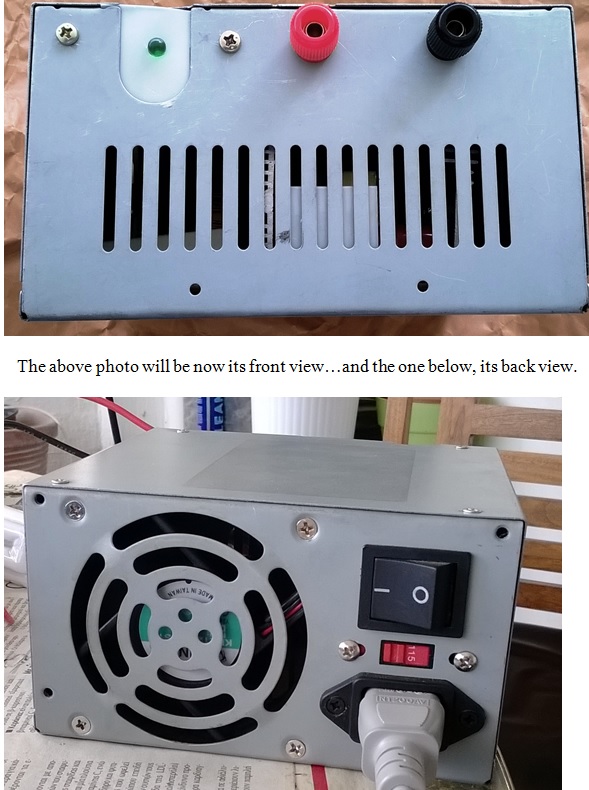

You can see below its final shape, after having completed all the modification work.

 atx modification work

 When I started troubleshooting it, I noticed that it had its fuse intact. That was good news, as I realized that it had a “not starting” problem.

I was very lucky so far and things seemed to be much easier now. I already had the good news that the primary switchers were intact. Nevertheless I typically proved this by taking static measurements on them. Everything was in perfect shape as I expected.

I continued with a fast check on the secondary side semiconductors, not expecting again to find anything wrong there. Just for confirmation that this side was trouble-free too. In addition I “scanned” all the electrolytic caps for bad ESR. No problem found.

Now was the time for dynamic checks. I connected the “soft fuse” (the test lamp) in series with the mains input of it and plugged it into the mains. I saw only a short glow of the lamp and then nothing. That was also a good sign. Next I checked the standby power supply, those 5V on the violet colored cable, and this was also fine.

The following voltage tests I run on the mains rectification and filtering were OK, my auxiliary (standby) PSU was already OK and the voltage to the PWM modulator IC was there, but when trying to energize it there was no signal at its outputs to drive the power transistors.

The PWM IC used in this PSU was the TL494, well known for decades now. As I recall the first time I saw this chip was back at the beginning of the eighties. At that time I joined the Panasonic servicing staff here in Athens-Greece. The actual IC was an equivalent version of that TL494. It was a μPC494 made by the Japanese company NEC. At that time I was so amazed by the way this power supply worked, after I had repaired it, that I bought some pieces of this chip in order to start experimenting with it…First love…never forgotten…This chip introduced me in the magic world of the SMPSes…Those were the days…

So I knew very well now what I had to do next. I checked all the voltages around the pins of this IC, in order to locate a possible “output inhibit” condition. Nothing relevant found by the measurements. The sawtooth oscillator’s frequency was in place, but the “5V reference” was missing and there was no activity at its outputs. So the decision was easy. This IC should be replaced. Indeed, after the replacement and connecting the PSU again to the mains (after bridging the free terminals of the green cable with a black one at the motherboard connector end, which equals the start command) the fan I already had connected to it started spinning. The indication that the restoration was already done was present. I further proved that by measuring its output voltages which were all at the correct level.

Next to that, since there was no further intention of mine to use this PSU for powering a computer even for a single time and in order to make things much easier in case of a possibly new repair of it in the future, I decided to strip it down removing anything that was not needed from the secondary side of the PCB. In other words I removed all the components related to the +5V and +3,3V outputs along with anything related to them and I saved these components as spare parts for future repairs. I left only the +12V output circuitry there.

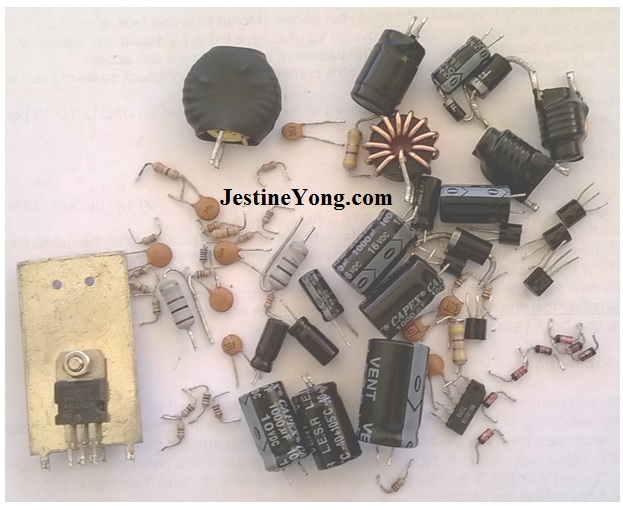

You can see the almost naked secondary side of the PCB along with the components I removed, below:

 atx power supply circuit board

atx power supply circuit board repair

However I had two basic problems to solve. The first was the output voltage.

As you know, in order to charge a 12V car battery one needs a slightly higher voltage than that. Otherwise there is no charging at all. The typical voltage used in cars is 14,4V. For floating use (keeping the battery permanently charged over time, in standby state) the typical voltage is 13,5V. So, I had to increase the voltage output of this PSU…

My brother on the other hand was very demanding! He wanted not only the boost charge function, but also the “maintenance” or “floating” one. Therefore I had to take this requirement in account and provide him with two switchable output voltages. One for boost charge, which I decided to be 14,7V and the other one, for the floating function, at 13,2V.

The second problem to be solved was the obvious need for an inclusion of a current limit protection in it, which would protect it against overloading and also against any accidental short circuiting of its output cable clamps before connecting them to the battery to be charged. Originally this PSU had not such protection circuits for any of its outputs. This explains the reason of the instant blow of various power semiconductors when these cheap designed PSUs either exceed their maximum power output capabilities or, especially, when their outputs face a short circuit.

Click HERE to go to Part 2
