Computer Motherboard Shutdown After Few Minutes Solved

By on August 24, 2013
cpurepairings

I got a motherboard from one of my customers with a problem of automatically turning off after running 5-10 minutes. Below is the motherboard specification:

Motherboard: – ASUS M2N-MX SE PLUS

Processor: – AMD Athlon ™ 64×2 Dual Core 5200+

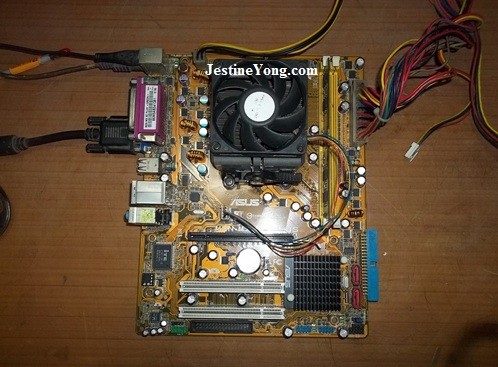

 cpurepair

As I test the motherboard I found it was running only for 5 minutes and turned off. I simply went to the BIOS setup and I noticed the temperature was rising in every second.

 cpurepairs

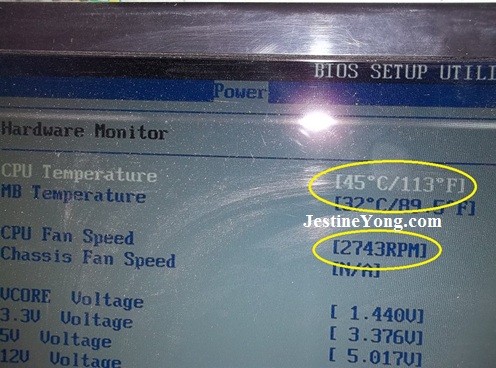

First the CPU temperature starts from 38 degree and went up to 75 degree Celsius. This high temperature had caused the motherboard to go off. Initial fan speed was about 2743 RPM and later it went up to 3250 RPM (Maximum speed). By right the maximum fan speed should be more than 3250 RPM. So I decided to change the CPU fan with a new one.

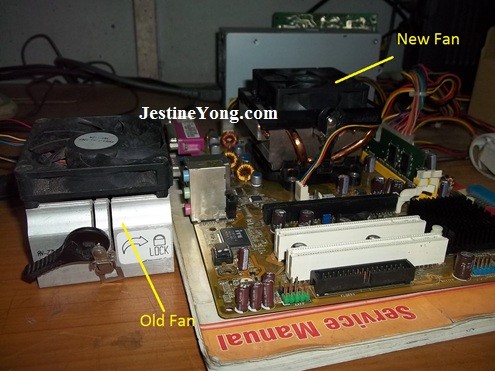

cpurepairing

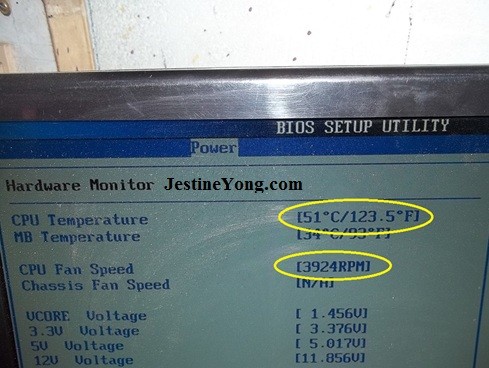

Voila! It worked and the CPU temperature doesn’t go beyond 51 degree Celsius as seen from the photo below. The fan maximum speed of 3924 RPM had really cooled down the CPU temperature.

 cpumotherboardrepair

Almost every problematic AMD processors gets hot in few seconds and were caused by defective fans. The above problem was a common fault and I suggest any new buyer to buy a good quality CPU fan with good speed that can brings down the CPU temperature tremendously.



This article was prepared for you by Narayan Sharma-Computer Care, Guwahati (Assam) India. Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

By the way if you have any good repair article that you want me to publish in this blog please do contact me HERE.

Likes(27)Dislikes(2)

65 Comments

  1. ZED

    August 24, 2013 at 5:54 pm

    Thanks for the repair info. Great.

    Zed

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 25, 2013 at 12:04 am

      HI Zed,

      You are welcome!

      Jestine

      Likes(1)Dislikes(0)
  2. Albert Hoekman

    August 24, 2013 at 7:20 pm

    The main cause of temperature raising of the CPU is the bad condition of the thermal paste between de cooling block en the CPU.
    The first thing is to dismount the cooling unit and clean it with compressed air and test the fan if it runs very smooth.
    Also clean the contact surface of both the cooling block and the CPU with a non aggresive fluid like Isopropyl Alcohol on a paper tissue.
    Put a VERY LITTLE bit of thermal paste on the CPU contact surface and use your finger to spread it out. It should be a thin film.
    After replacing the cooling unit the temperature of the CPU will be of mostly normal values (55 degrees Celcius).

    Albert Hoekman (NL)

    Likes(2)Dislikes(0)
    • Jestine Yong

      August 24, 2013 at 11:35 pm

      HI Albert,

      Thanks for sharing the additional tips.

      Jestine

      Likes(1)Dislikes(0)
  3. David

    August 24, 2013 at 7:49 pm

    Great repair repair tip! The BIOS is a source of great info. How did you know about the fan speed spec? Is the info in the computer? Thanks.

    Likes(1)Dislikes(0)
  4. Waleed Rishmawi

    August 24, 2013 at 8:21 pm

    very good article. very informative one and I thank for it.

    Likes(1)Dislikes(0)
  5. Keith

    August 24, 2013 at 9:18 pm

    Well I never! An inherent factory fault from AMD ? Jestine I take my hat off to you for finding this. Who would suspect an inefficient fan? I wonder if you knew beforehand that this was happening in other AMD M/b's or did you find that out later. Another thought - don't they test for this at the factory or is their ambient temp maybe way down? Perhaps they expect the end user to fit additional fans to their enclosures. I have 2 extra fans in my box as our room temps soar here in South Africa.
    Thanks for all your interesting informative emails.

    Likes(2)Dislikes(0)
  6. frank

    August 24, 2013 at 10:15 pm

    This article is completly useless, the cause of overheat it's NOT the fan speed but probably heatsink not touch correct to cpu or heathsink compound problem, absolutly NOT THE FAN SPEED.

    Likes(1)Dislikes(1)
    • Jestine Yong

      August 24, 2013 at 11:38 pm

      HI Frank,

      Yes heat sink and blocked fins does plays an important part but the speed of the fan (RPM) has to be take into consideration. Perhaps you can share your own experience on this?

      Jestine

      Likes(1)Dislikes(1)
      • tenterarmaf

        September 2, 2013 at 9:04 pm

        I'm with you jestine

        Likes(1)Dislikes(0)
  7. Noel Gervais Gerard

    August 25, 2013 at 12:17 am

    Hi sir thanks for the tips on how to repair CPU motherboard so it's a great advantage to know how a fault like this can prevent the motherboard to work properly thanks again to share

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 25, 2013 at 8:18 pm

      HI Noel,

      You are welcome.

      Jestine

      Likes(1)Dislikes(0)
  8. Dave Maltz

    August 25, 2013 at 12:41 am

    Thanks for the great tip and the comments as well.

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 25, 2013 at 8:18 pm

      Hi Dave,

      You are welcome!

      Jestine

      Likes(1)Dislikes(0)
  9. Bill Eitner

    August 25, 2013 at 1:53 am

    I agree with Albert and Frank.

    I run a non-profit computer refurbishing business where we provide real-world experience to graduates of two local trade school computer service technician programs. Part of the refurbishing process is servicing the CPU cooler. Remove it, clean out the old thermal paste, disassemble it, clean the heatsink and fan thoroughly, reassemble it, apply new thermal paste and reinstall making sure there is proper contact and spring tension. We also use a straight edge to make sure the CPU and heatsink mating surfaces are reasonably flat. Sometimes we also put a drop or two of oil in the fan bushing if it seems like it needs it.

    In my experience, when considering an idling CPU (being in the CMOS setup program is a similar state), if the heatsink is in reasonable thermal contact with the CPU, the heatsink isn't too dirty, and the fan is running at any reasonable speed, the CPU won't overheat and cause a shut down--especially not in 5 to 10 minutes when running on a bench outside of the case.

    What happened here was not a fan replacement. The entire CPU cooler was replaced. The new one is a more deluxe model with heat pipes that probably came with fancy gray thermal paste--all of which was unnecessary (in my opinion). For the price of a 3mm diameter ball of common white thermal paste and maybe a drop or two of light oil, using the procedure outlined above, the problem would have been solved. Further, if the fan on the new cooler runs almost 1200 RPM faster than the old one with a low CPU load, it's likely to be noisier all the time. I'm familiar with Socket AM2 and AM3 processors. In the CMOS setup program there is often a CPU cooler fan throttling adjustment. The idea is to set a goal temperature with a tolerance percentage and a minimum fan speed percentage. An example would be 60 degrees with 5% tolerance and 0% minimum fan speed. In that situation, until the temperature is within 5% of 60 degrees, the fan is completely off. With the motherboard sitting on a bench outside of the case, and doing nothing more than navigating the CMOS setup program, the fan may not come on at all for quite a while depending on the ambient temperature and ventilation.

    In conclusion, I hate to say it but I believe the customer was done a disservice in this case as a new CPU cooler was not necessary. The technician/business loses too as more could have been made in labor. In other words, the customers bill would be lower--yet all of it would be profit for the technician/business. A successful electronic repairer will be able to go to a more granular level than his competition. Repair at the modular level isn't profitable unless the volume is high. Most repairers need to squeeze as much profit from each repair as possible. That means spending as little as possible on parts. That philosophy is also a green philosophy in that is wastes the fewest resources. This is a perfect case in point. I'd bet there's nothing wrong with the old CPU cooler that a good cleaning, a drop of oil in the fan bushing, and fresh thermal paste wouldn't solve.

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 25, 2013 at 8:18 pm

      HI Bill,

      Thanks for your good sharing and I believe many blog readers and repairers will benefits from your post.

      Jestine

      Likes(1)Dislikes(0)
    • Narayan Sharma

      August 26, 2013 at 1:22 pm

      helo bill

      yes agree with your words. did every thing as you said, but the fan is too old and not working smoothly. thank you for your details.

      Narayan Sharma

      Likes(1)Dislikes(0)
    • Amendar

      August 30, 2013 at 1:53 pm

      Hi,

      Thank you for sharing and ideas.

      There is a question and thats if its correct to put oil in fans'?

      I believe oil + dust will make fan life time very very shorter than usual!?

      Thank you.

      Likes(1)Dislikes(0)
  10. Tesfaye kebede

    August 25, 2013 at 2:53 am

    Thank you for repair friend and jestine it is a usefull repair article

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 25, 2013 at 8:19 pm

      HI Tesfaye,

      You are welcome!

      Jestine

      Likes(1)Dislikes(0)
  11. kings

    August 25, 2013 at 4:32 pm

    This information is correct and works perfectly.Who said this is useless? What is the work of fan and heatsink? Just share what you have and don't condenm.

    Likes(1)Dislikes(0)
  12. joseph fernandes

    August 25, 2013 at 4:56 pm

    I have been trying to purchase the books but it is not possible with the credit card ,I do not why ,is there some other way I can send you the amount via western union , if yes send me details please reply ,looking forward to get the e-books
    Thanking you
    Kind Regards
    Joseph Fernandes

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 26, 2013 at 9:58 am

      Hi Joseph,

      I have sent a personal email to you.

      Jestine

      Likes(1)Dislikes(0)
  13. Charles

    August 25, 2013 at 5:21 pm

    I know this basic problem cause by overheat on cpu temperture, and fix my computer long ago,

    Likes(1)Dislikes(0)
  14. Glicerio

    August 26, 2013 at 2:24 am

    Many problems could arise in the computer world, no matter if PCs are new or old. This tip is intersting to keep in mind. Thank you for sharing the info.

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 26, 2013 at 9:53 am

      Hi Glicerio,

      You are welcome!

      Jestine

      Likes(1)Dislikes(0)
  15. petr

    August 26, 2013 at 4:05 am

    Thank's!!!!!!! This a good article ,recommend to all. thanks again .

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 26, 2013 at 9:53 am

      Hi Petr,

      You are welcome!

      Jestine

      Likes(1)Dislikes(0)
      • RONESH

        August 28, 2013 at 6:44 pm

        hi,JESTINE Great repair repair tips

        Likes(1)Dislikes(0)
        • Jestine Yong

          August 28, 2013 at 11:35 pm

          HI Ronesh,

          You are welcome!

          Jestine

          Likes(1)Dislikes(0)
  16. Amir Mukhtar

    August 26, 2013 at 4:04 pm

    Thanks you Sir for your nice and inforative Sharing.

    thanks you
    your Student
    Amir Mukhtar AShrafi

    Likes(1)Dislikes(0)
  17. Mark Tembo

    August 26, 2013 at 4:15 pm

    I have experienced this problem before. The PC was running a bigger machnine, the UNISYS NDP300 quantum series (the machine that captures images and MICR codeline for bank cheques). What used to happen is that, once you power up the machine, it could run for a few minutes and then power suddenly cuts off(the machine stops running and the PC starts rebooting on its own). Fortunately, I had a similar PC running the other NDP300, so I swapped. To my surprise, everything worked well. So I had this PC examined, and found that the CPU fan could run normally and then very high, and then the PC starts rebootig on its own. When I replaced the fan, everything went on well, and this is how I rectified this problem.

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 26, 2013 at 5:31 pm

      HI Mark,

      Thanks for your sharing and this confirms that fan plays an important part besides the heatsink compound and blocked heatsink fins.

      Jestine

      Likes(1)Dislikes(0)
  18. Diarmuid Marsh

    August 26, 2013 at 5:16 pm

    This is a very well put together artical however it is allways important tochange heatsink compound

    Likes(1)Dislikes(0)
  19. Bernie Scott

    August 26, 2013 at 11:27 pm

    Good article....Not to up on PC repair but thermal grease can cause all sorts of overheating problems in electronics.....After a long period of time the grease gets old and hard and loses it's ability to conduct heat..I find this in lots of vintage power amplifiers and whenever I have a repair, I always clean off the high power transistors and temperature sensors and put a fresh coating of thermal grease on them...for the amount of time it takes it is well worth the extra effort and I always explain that to customers who are paying for the repair...and I have never had a customer that didn't listen to my advice....they are paying for the labour to have the unit repaired...while you are inside of it it makes perfect sense to apply a fresh coating of thermal grease(if you feel it requires it),and to take a quick look for bad solder connections and lose connectors etc to prevent a possible call back in the near future...By doing this you not only repair the original problem but you have possibly have prevented another problem that could act up at a later date....

    Likes(1)Dislikes(0)
    • Jestine Yong

      August 27, 2013 at 9:29 am

      Hi Bernie,

      Thanks for the advice.

      Jestine

      Likes(0)Dislikes(0)
  20. Nazareno Jacosalem

    August 27, 2013 at 11:06 am

    This is another good article that I have read and very informative, everybody is sharing their knowledge and the less fortunate like me gain more, Thanks to everybody. I also experience all of the above situation, and all the factors are all important, thermal grease dried out, dirty heatsink fins and fan blades, and low grade defective fan.

    Any one of these should be considered in malfunction of the computer.

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 28, 2013 at 9:03 am

      Hi Nazareno,

      You are right!

      Jestine

      Likes(0)Dislikes(0)
  21. mikel

    August 27, 2013 at 6:51 pm

    you are a great and unselfish man. Thanks for the information.

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 28, 2013 at 9:02 am

      Hi Mikel,

      You are welcome!

      Jestine

      Likes(0)Dislikes(0)
  22. Raymundo Saura

    August 28, 2013 at 7:52 am

    thanks sir jestine and y Narayan Sharma-Computer Care for this great info and sharing your time and talent for us to learn. GOD bless

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 28, 2013 at 9:01 am

      Hi Raymundo,

      You are welcome!

      Jestine

      Likes(0)Dislikes(0)
  23. Tana

    August 28, 2013 at 10:55 pm

    The cooling fan can be lubricated with some WD application.Also the heat transfer compound re freshened. But changing the fan was a fast job and fast money. Good luck.

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 28, 2013 at 11:35 pm

      Hi Tana,

      Nice to hear from you again. Thanks for the tips.

      Jestine

      Likes(0)Dislikes(0)
      • Sandeep Kumar

        August 29, 2013 at 3:48 am

        Dears

        I have 10 numbers of Hipro Made PC Smps, all having same problems.Power Good not comming. when i m shorting green and black wire then Led near Power plug goes off. Please Help

        Sandeep

        Likes(0)Dislikes(0)
        • Jestine Yong

          August 30, 2013 at 9:23 am

          Hi Sandeep,

          May i know what do you mean "LED near power plug went off"? When you turn on the PC is the PC LED lights up? Have you checked all the output voltages from the power supply?

          Jestine

          Likes(0)Dislikes(0)
          • Sandeep Kumar

            August 30, 2013 at 1:36 pm

            Yes Sir
            I have checked all the voltages, all voltages proper but power good voltage (Gray Wire) not coming.

            Sandeep

            Likes(0)Dislikes(0)
            • Jestine Yong

              August 30, 2013 at 4:23 pm

              Hi Sandeep,

              Then you need to trace backward to see where the 5 volt had lost. It can be bad ic, open resistor, bad filter caps and etc.

              Jestine

              Likes(0)Dislikes(0)
  24. Shah

    August 29, 2013 at 1:47 pm

    Nice info!,
    there are 3 elements can cool down the processor temperature.
    I . fan speed
    II. heatsink should be kept clean, no dust
    III. fan rotation must be stable

    *add a fan in the housing and make sure the air flow outwards.

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 30, 2013 at 9:18 am

      Hi Shah,

      Thanks for the comment.

      Jestine

      Likes(0)Dislikes(0)
  25. Tyrone.

    August 30, 2013 at 4:57 am

    Thanks for this wonderful information Jestine.

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 30, 2013 at 9:16 am

      Hi Tyrone,

      You are welcome!

      Jestine

      Likes(0)Dislikes(0)
  26. sampson nyarko

    August 31, 2013 at 2:02 am

    thanks a lot for your post please my problem is i also have dell optiplex 380 desktop which gives me a constant Orange led when switch on with no display please i need help thanks.

    Likes(0)Dislikes(0)
    • Jestine Yong

      September 2, 2013 at 10:24 am

      Hi Sampson,

      It can be caused y bad power supply or even motherboard. If it is motherboard then it will be a big problem because many factors could cause this situation such as bad Rams, north/south bridge ic, Rom, shorted components and etc. The best is touse a PC post card to narrow down the problem.

      Jestine

      Likes(0)Dislikes(0)
  27. Daniel Melendrez

    August 31, 2013 at 4:27 am

    Great Job but you could also disassemble the cooler fan and clean it with isopropyl alcohol and apply a little amout of grease to the rotor.

    I believe this solution is cheaper.

    Best regards.

    Likes(0)Dislikes(0)
    • Jestine Yong

      August 31, 2013 at 8:58 am

      Hi Daniel,

      Thanks for the suggestion and I believe the readers could benefit from it.

      Jestine

      Likes(0)Dislikes(0)
  28. Al-Amin Dewan

    September 2, 2013 at 11:50 am

    This motherboard repair tips is a great solutions. please keep it up.

    Likes(0)Dislikes(0)
  29. nicolas

    September 2, 2013 at 8:36 pm

    u are a life saver

    Likes(0)Dislikes(0)
  30. Mircea

    September 3, 2013 at 2:24 am

    Hi Jestine! My PC is rebooting.After changed cooler resolved.

    Likes(0)Dislikes(0)
    • Jestine Yong

      September 3, 2013 at 1:00 pm

      Hi Mircea,

      Thanks for sharing.

      Jestine

      Likes(0)Dislikes(0)
  31. ben

    September 3, 2013 at 6:12 pm

    Hi,bro, thanks for the sharin with us.

    Likes(0)Dislikes(0)
  32. chris

    September 5, 2013 at 9:04 am

    great tips. thanks sir.

    Likes(0)Dislikes(0)
  33. Mutai

    September 12, 2013 at 4:00 pm

    sampson nyarko

    your machine has a problem in south-bridge(ICH)and its need to be reboll

    Likes(0)Dislikes(0)
  34. Mian Muhammad Nasir

    September 12, 2013 at 11:41 pm

    Thanks dear for posting this beneficial tip, My cousin had similar problem Hopefully it will work. Nice work, Keep it up.

    Likes(0)Dislikes(0)
  35. Cristian

    June 23, 2020 at 11:22 pm

    Hola, me he encontrado con esta página investigando el problema de sobrecanlentamiento en esta misma placa, en mi caso con un procesador AMD Athlon 64 X2 Dual Core 5000+. He probado cambiar la grasa térmica, lubricar el cooler y el problema no se soluciona así que he decidido cambiar el disipador-cooler como lo dice en esta publicación. Espero poder solucionar mi problema. Desde Argentina. Muchas gracias.
    =====================================================================
    Hello, I have come across this page investigating the overheating problem on this same board, in my case with an AMD Athlon 64 X2 Dual Core 5000+ processor. I have tried changing the thermal grease, lubricating the cooler and the problem is not solved so I have decided to change the heatsink-cooler as it says in this post. I hope I can solve my problem. From Argentina. Thank you very much.

    Likes(0)Dislikes(0)
