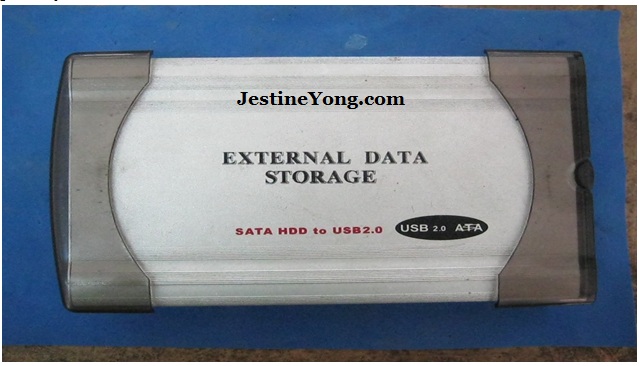

External hard drive storage repaired. Sata to 2.0 USB

By on July 21, 2014
external hardddisk repairings

















An old man brought this to my shop for repair. He explained that he powered up the device and he could smell something burning. He brought the power supply that he used for that hard drive and when I looked at it, it did not match the power specification on the hard drive. . He used 16 volts and he did not pay attention to the voltage polarity. He used a power supply with the positive volt to ground and it should have been positive to the hot pin of the power jack.

external hardddisk repair

It was easy to open. Just slide the hard drive and the power board out and you will see what inside of it.

 external hardddisk repairs

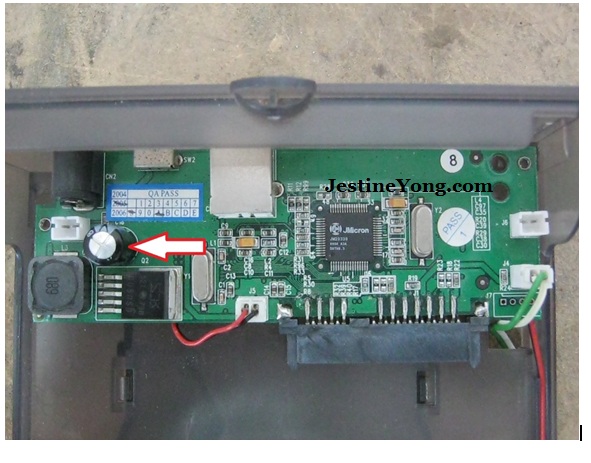

The moment I slide the whole thing out, I saw a bulged capacitor near the power jack. It was 680uf/16 volts.



I was expecting something like that since the voltage polarity were reversed.

 external hardddisk repairing

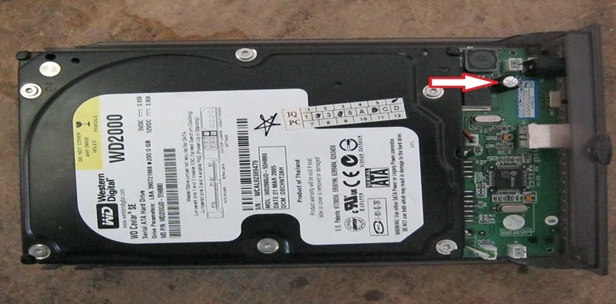

Here is a closer look of this bad capacitor and of the whole power board. This board was also attached to the fan and the actual hard drive. Take a look

 external hardddiskrepair

 I have already replaced the bulged capacitor. I have used 1000uf/16 volts.

 external hardddiskrepairs

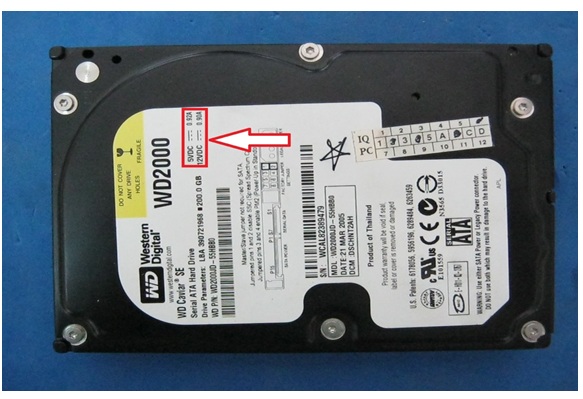

If you look at the arrow, you could see the voltage rating of this hard drive. It was 12 volts and just a little bit under 1 amp. I have used 12 and 1 amp transformer and the moment I powered up the hard drive, the fan started to spin. It was working fine.

I have plugged it though a USB cable to my laptop and seems like everything was working fine. Sorry I forgot to take a picture of it.

The green light came on and the computer recognized the hard drive. I was able to import and export information to the hard drive and off the hard drive.

The customer came into my shop while I was testing it (that is why I could not take a photo of the hard drive working) and was happy that his drive was working again.

I have explained to the customer what he did wrong and it seems like he was accepting it very well. Mission accomplished.
