Is Scanner HP 4070 Irrepairable due to Kamikaze Transistor?

By on March 10, 2014
bad-ic















This story started when I got this HP Scanner and was told that it was rejected by HP repair center. The complaint was that it can’t be powered up.

After opening the Scanner I found just two boards. One is the power supply/main board and the other one is the inverter/high voltage board to power up the CCFL light. This Scanner comes together with a 12 volt external power adapter.

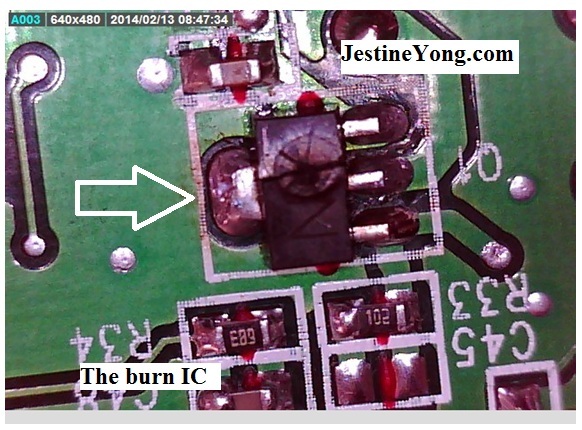

The only bad part that I found in this Scanner was just an exploded SMD transistor and a bad fuse. The SMD transistor has a marking of “NY”.

bad ic

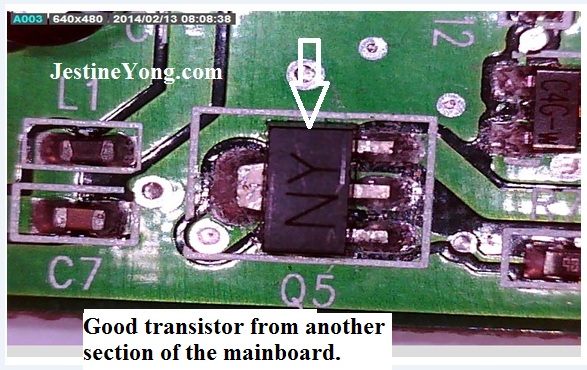

It was very hard to search for this SMD IC data. I found 9 NY SMD transistor code in the VRT-ECA semiconductor book but the size of the transistor were different from the original one which was SOT-89 package. I found this transistor to be unique and suspected it could be the customized transistor by HP.

smdtransistor

I asked myself the following questions:

1-    Why there are no other bad components in this Scanner except that burnt transistor?

2-    Why HP repair center cannot repair this Scanner ?

3-    Why HP repair center does not have this part?

4-    Why this  transitor exploded without any reason?



Here is  one possible answers that I could come out with:

It could be the designer of this circuit board use a transistor that has a specific life span. This means after the expiry time the transistor itself will automatically turn bad and causing the Scanner can’t be powered On.

Note: This is just my personal opinion.

This kind of policy in designing of HP products is not new for me.  I came across a Printer model 5600 that can only work with genuine HP cartridge. The reason for it is because a special IC was installed in the cartridge and if the printer can verify that IC it will begin to work otherwise it will stop working.  I have to mention that the price of a pair of cartridge for black and white and color is equal to a complete set of printer. This means that each time you change the cartridges it is just like you are buying a new printer.

In the above story, since I could not find the replacement part I could not repair the Scanner.

beh









This article was prepared for you by Mr Beh, one of our ‘Master Authors’ from Iran.



Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

Latest Update:

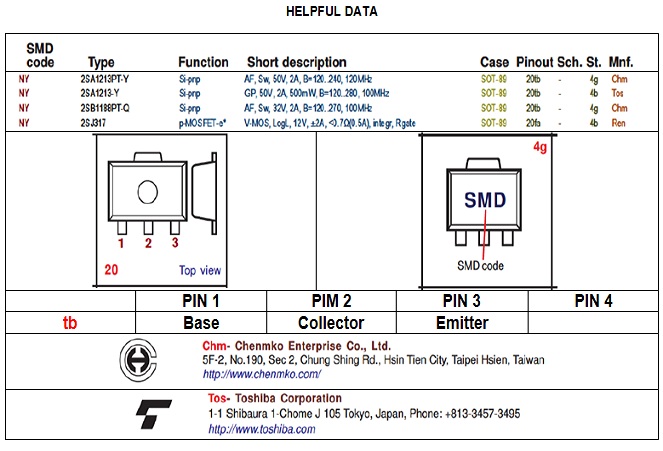

Below is the helpful data sent by one of the blog readers:

smd ny

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.





Likes(154)Dislikes(3)
Likes(5)Dislikes(0)

2 Comments

  1. SANDEEP SINGH

    July 11, 2020 at 12:31 am

    Dear Jestine Sir,
    i have a hp scanjet 4070 scanner which malfunctioned after plugging in a 12 v power supply with reverse polarity.
    I think the pcb has gone bad as even after changing fuse there is no initialization.
    pls help me.

    Regds
    Sandeep
    India

    Likes(0)Dislikes(0)
    • Jestine Yong

      July 13, 2020 at 11:59 am

      Hi Sandeep,

      Just open up the printer and trace the fuse circuit track downstream to see if there is any bad or burnt components.

      Jestine

      Likes(0)Dislikes(0)
