Line Protector Repaired

By on May 30, 2015
line protector repair

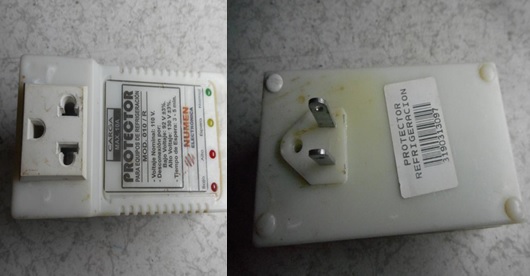

This week-end I was in hurry because the Line Protector of my old Hotpoint fridge got suddenly out of order.

ac line protector repair

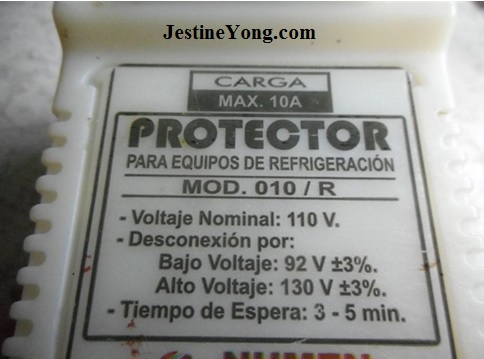

It comes designed specifically for refrigeration equipment and with a max load of 10 Amp. Its brand is NUMEN and Cuba made.

line protector repairing

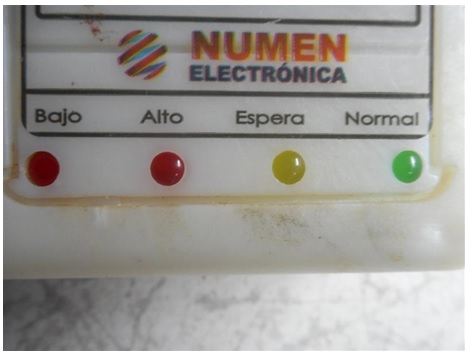

It has four stages of duty represented by means of 4 LEDs:

 line protector repair2

  • Bajo (red LED): this LED lights when the volt-in is low, under 92 volts. The fridge will not start and it is protected againt low-voltage.
  • Alto (red LED): this LED lights when the volt-in is high, above 130 volts. The fridge is protected against high voltage and will not start.
  • Espera (yellow LED): when you connect it (or when the electricity is restablished from a black-out) it waits for about 3 – 5 minutes to supply electric energy to the fridge.
  • Normal (green LED): when the volt-in is in a normal range (between 93 and 130 volts) it lights, so the fridge is protected too.

Note: remember the AC voltage in my country is 110 volts.

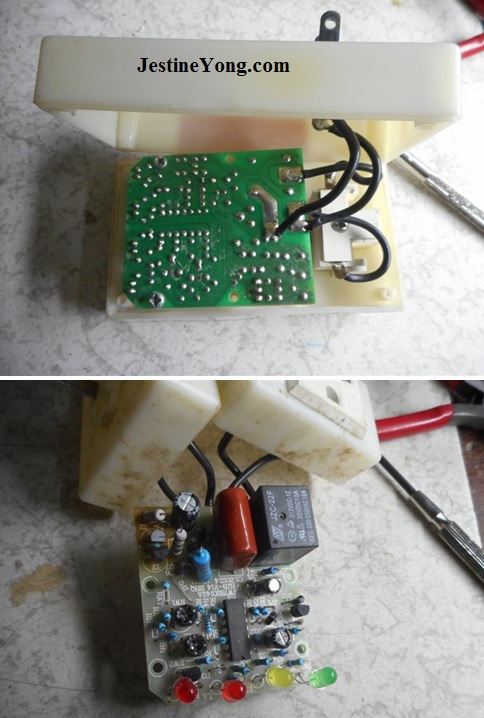

The Line Protector was fully-dead, in other words, when you connected it to the wall-outlet, it showed no signs of life, so the equipment was opened.

line protector repair3

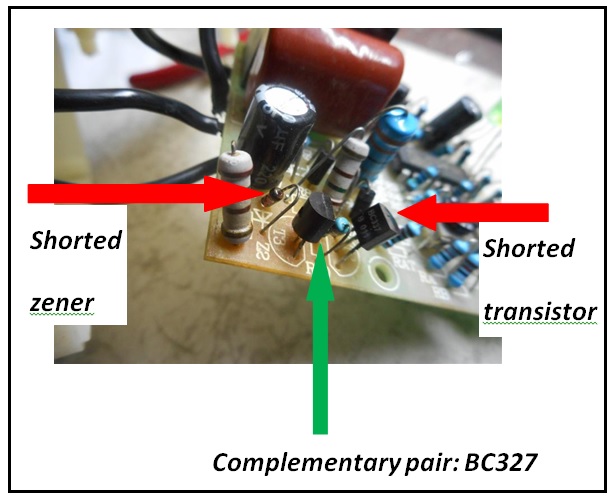

My first search was in the AC-in circuit, and found a shorted transistor (BC337: NPN Epitaxial Silicon Transistor: switching and amplifier applications) and a shorted zener diode of 9 volts.

line protector repair4

In this case an exception had to be made, let me explain carefully: this BC337 works as a complementary pair with the BC327 (situated in front of it, look at the photo above), so I had no BC337 of spare and then I had to look for another complementary pair: BC546 and BC556 (NPN and PNP Epitaxial Silicon Transistors: switching and amplifier applications), of course it was done by consulting both datasheets.

line protector repair5

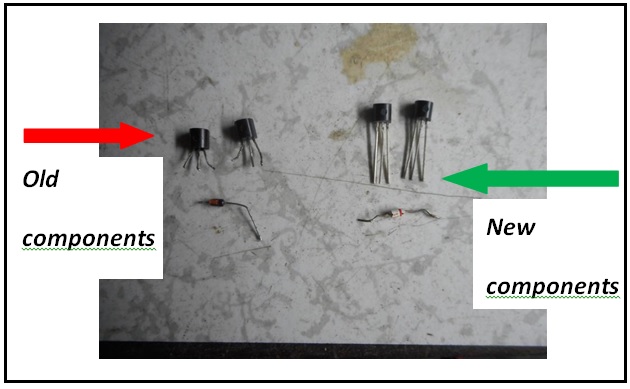

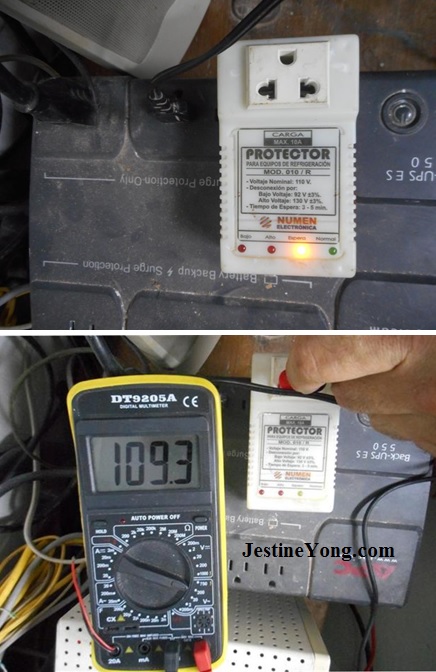

Both transistors and the zener diode were replaced in the PCB and the equipment was tested in the AC mains, look at the result in the photos below.

line protector repair6

This time the Line Protector was working perfectly and it was saved from the dump.
