Monitor Repair Forum

By on August 25, 2007

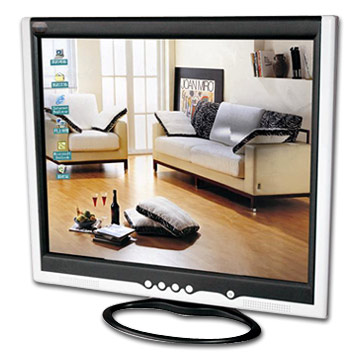

 monitor repair forum

Monitor repair forum play a very important part in helping me to gain knowledge in monitor and electronic repair. I joined the anatek repair forum many years back and the website was handled by John Bachman and his wife Pamela. I would like to thank him for setting up the repair forum where i learned  a lot from the super techs who was actively answering questions post by other fellow repair members. That was a small amount of fees impose in order to become the member.

Now, there are lots of free repair forum in the Internet and this caused many members moved out. If you are now searching for any repair forum, why not join this Monitor repair forum that covers also TV and moderated by Imran Khan. It is a yahoo group and free to join. You can join the Monitor repair forum by visiting this link.



  1. music

    January 9, 2008 at 5:02 am

    very interesting.
    i'm adding in RSS Reader

  2. printerman

    July 23, 2008 at 12:51 am

    Good Day,

    Laser and inkjet printersmashines and now used everywhere, in office and at home.
    They’ve become so easy to use that you don’t have to be an IT specialist and
    know the technology to use a machine. When a printer stops printing, usually it
    simply requires another inkjet or printer cartridge to replace the depleted one. But
    not everyone knows what ink or toner cartridges the given printer uses.

    Now there is a fast and easy way to find cartridges for you printer. All you
    have to do is click your model of printer, the compatible cartridges will be right there.

    Best regards zh.

  3. LEE

    January 18, 2009 at 2:38 pm

    I recently repaired 2 LCD Monitors.
    One a Chimai 22in
    It was blowing fuse and i ended up replacing the bridge rectifier
    and a Fet.
    The second was 17in HP
    It wasn't turning on and that was bloated electrolytic caps
    in the secondary of the power supply.

  4. admin

    January 18, 2009 at 11:36 pm

    Congrat on your successful repair Lee


  5. p.k.gupta

    June 19, 2009 at 5:00 pm

    Looking for replace pqart/cross reference for BUH1015HI ,model compro
    monitor ,also same Logix.
    plz suggest replacement part.

  6. admin

    June 19, 2009 at 11:22 pm

    Hi Gupta,
    Try BUH1215


  7. Susilo

    August 3, 2009 at 2:04 pm

    Hai Jestine,monitor acer ac511 tampilan gambar horisontal tidak penuh walaupun horizontal size sudah
    100%.Sewaktu dihidupkan tampilan BIOS normal,tapi kemudian tampilan windows mengecil.Dimana problemnya?

  8. admin

    August 5, 2009 at 8:11 pm

    Hi Susilo,

    Sekiranya anda dah cuba set kat OSD dan masih ada masalah yang sama cuba check capacitor sekitar flyback dgn menggunakan digital capacitance meter. Capacitor itu adalah jenis non polar.


  9. Susilo

    August 27, 2009 at 11:08 pm

    Hallo mr Jestine,thanks utk advice-nya,saya dah coba ganti capasitor
    2.2/50v non polar dan 22/200v elco,tapi belum ada perubahan.Saya cek B+ hanya 60v,dimana lagi saya harus cek?

  10. admin

    August 30, 2009 at 3:32 pm

    Hi Susilo,
    Check capacitor yang mempunyai nilai voltage antara 250v hingga 2000 volt. Sebelum B+ FET anda dapat berapa volt?


  11. Susilo

    September 10, 2009 at 5:01 pm

    Hallo,Mr Jestine,saya cek tegangan sebelum B+Fet sebesar 64.5V.(moni
    tor Acer AC511).
    Kalau Tegangan B+ melebihi 70V apa akibatnya?


  12. admin

    September 11, 2009 at 9:35 pm

    HI Susilo,

    Apa masalah dengan Monitor tersebut?


  13. Susilo

    September 12, 2009 at 4:33 pm

    Hallo Mr.Jestine,
    Masaalah acer ac 511,horizontal size 100%,display tidak penuh.
    Tegangan sebelum B+Fet 64.5v,dimana lagi harus saya cek?

  14. admin

    September 12, 2009 at 11:22 pm

    Hi Susilo,

    Sila check non polar cap sekitar flyback. Kalau nilainya lari gambar akan kecut/kecil.


  15. Susilo

    September 14, 2009 at 5:15 pm

    Hallo mr Jestine,thanks utk advice-nya,saya dah coba ganti capasitor
    2.2/50v non polar dan 22/200v elco,tapi belum ada perubahan.Saya cek B+ hanya 60v,dimana lagi saya harus cek? Sebelum B+ FET didapat 64.5v.


  16. admin

    September 14, 2009 at 7:52 pm

    Hi Susilo,

    Check gate signal of B+ fet ataupun terus tukar h/v oscillator IC. Kalau tiada signal ke gate of B+ fet gambar akan kecil.


  17. Susilo

    September 17, 2009 at 2:50 pm

    OK,thanks utk advisenya


    August 24, 2010 at 11:08 am

    dear sir
    please help me electronics repairing guaid

  19. admin

    August 24, 2010 at 7:36 pm

    HI Ghulam,

    Please visit this link:


  20. hasan

    September 6, 2010 at 5:48 am

    lg tv flat screen the picture became dark and top and botom one inch fold itry to increase screen brightnes but many vertical line apears on the screen if i reduce the line disapear but pictur become dark. Help me solve this problem

  21. hasan

    September 6, 2010 at 6:01 am

    justine thank you asistant tv repaire your the best on net

  22. admin

    September 6, 2010 at 10:24 am

    Hi Hasan,

    You are welcome.


  23. admin

    September 6, 2010 at 10:26 am

    HI Hasan,

    Check the vertical section and make sure no dry joints and the supply voltage is good and stable.


  24. Mathews

    September 14, 2010 at 6:09 am

    Hello Jestine,

    I have an LG 500G. I have checked SMPS as far as possible but could not find any thing suspecious. The problem is that when I turn on the monitor, the Green LED keeps blinking continuously. Nothing appears on screen. When the data cable is connected to the VGA port and the computer is not turned on, I get a stable Orange light. However, as soon as the computer is turned on the green light keeps blinking continuously. I have replaced KA3842B as well as 7N60. But the problem remains the same. I am at a loss to understand where to put my head next.



  25. admin

    September 14, 2010 at 7:06 am

    Hi Mathews,

    I suggest that you visit this link to isolate the problem :

    Something shorted in the downstream could cause power to blink.


  26. hasan

    September 14, 2010 at 5:45 pm

    hi teacher justine to me you are not only a teacher but your a master,i would like to know how to trouble shoot vertical problem on lg 29inches plat screen from the output of smps and help to understand the supply of horizatal and vertical section the last question is it possible to mesure G2 VOLTAGE thank you in advance Dost may God bless you

  27. admin

    September 15, 2010 at 5:36 am

    HI Hasan,

    I suggest that you get a tv repair book which have all the complete explanation of the circuit. I recommend "Troubleshooting and Repairing Solid State Tvs by Homer L Davidson". As for the G2 yes you can test the voltage with a digital voltmeter.


  28. hasan

    September 17, 2010 at 2:44 pm

    thank you for your advise sir jestine but idint get in my area. Please give me short advise on how troubleshooting tv imean simple methods to know where the problem is

  29. admin

    September 17, 2010 at 7:24 pm

    HI Hasan,

    I suggest that you get this tv repair book from "Troubleshooting and Repairing Solid State TVs by Homer L Davidson". It has the simple explanation of the cause of the problems and solutions. I fully recommend this book.


  30. hasan

    September 18, 2010 at 4:57 pm

    thank you again ill work hard to get the book you advise.have a blessed wekeend

  31. hasan

    September 19, 2010 at 4:41 pm

    hallo sir today iwent to a castomer to install satellite dish after istalling the dish he ask me to repair his 14 inch sanyo tv the screen was black the led light ok when i switch it on i hear high volt sound .iswitch it of check for dry joint ifound and solder the area it work very well.THANK YOU JUSTINE I READ ALLOT IN YOUR WEBSITE

  32. admin

    September 20, 2010 at 4:55 am

    HI Hasan,



  33. hasan

    September 24, 2010 at 4:25 pm

    halo sir jestine iwould like to know what happen if the tv fillament dose not recieve the 6.volt and what is the suspect componet imean how to solve the problem , second is to thank you for your time to answer question , third is i have kenya shilling ready to buy esr meter i do not have credit card or visa card and irealy need the blue esr meter and blue ring what will do Thank you again

  34. admin

    September 24, 2010 at 9:59 pm

    HI Hasan,

    I've already sent a reply to your email.


  35. hasan

    October 4, 2010 at 4:29 pm

    sir sory for reply yes i got your email i will let you know im ready to send .

  36. Raphael

    January 6, 2011 at 9:07 am

    Hi Jestine,
    I like your forums very much.
    I have a Sony Flat screen TV.When I put on the power,it just comes on with sparks on the screen like its coming on the goes off.I have checked all the components and the only component which I found burnt was only the STR.The problem is still there,how do I go about it?

  37. admin

    January 7, 2011 at 5:04 am

    HI Raphael,

    Try isolate the problem using the link below:

    You need to know if the power supply is functioning well or not.


  38. supun

    January 8, 2011 at 2:18 pm

    Hi jestine
    i need panasonic TH-32LX10 lcd tv schematic diagram

  39. admin

    January 8, 2011 at 9:27 pm

    Hi Supun,

    Sorry i do not carry any schematic diagram.


  40. supun

    January 9, 2011 at 1:04 am

    please tell me web sites that i can buy panasonic TH-32LX10 lcd tv schematic diagram

  41. admin

    January 10, 2011 at 9:50 am

    Hi Supun,

    Try search from this website:


  42. David

    January 19, 2011 at 8:51 pm

    Bridge Rectifier for Insignia NS-LCD32
    Part U15K 80R 676D
    Does anyone know what other type of Rectifier would fit
    this tv. I have extra parts from a Toshiba, but the Rectifier
    is much wider. This has 4 legs on it. - ac ac +

  43. admin

    January 20, 2011 at 11:02 am

    HI David,

    Sorry, i have no info on that part. But you can use four pieces of 1N5408 diode to fabricate it into a bridge rectifier as a replacement.


  44. kalinga

    February 7, 2011 at 4:38 am

    hi jestine,i have samsung syncmaster monitor.after long time,i fix it's power problem and give power to the shows no signal message about 5 between that time,i herd some"tik tik" sound inside the monitor.after that,suddenly any picture is not shown in screen.i also replace the horizontal out transistor before that problem.relay is turn on and off normally,light is blink when connected to computer normally.i didn't see any other problem in that flyback not work?or any other?please help me.thank you.

  45. admin

    February 7, 2011 at 10:02 pm

    Hi Kalinga,

    Try this link:


  46. amila

    February 9, 2011 at 7:47 am

    hi,can you please tell me the equivalent H Out for J6815?thank you very much.

  47. admin

    February 10, 2011 at 4:24 am

    HI Amila,

    Sorry no info on that. Perhaps you can try to use C5047 or C5411 as replacement. If it is hot after running for a minute or two then both numbers are not suitable.


  48. Nagal

    March 24, 2011 at 7:14 am

    Sore Jestine,

    Saya sangat tertarik dengan buku LCD Monitor Repair, apa ada dalam versi bahasa indonesia / malaysia, soalnya inggris kurang ngerti.

    salam sukses

    Nagal HO

  49. admin

    March 24, 2011 at 9:14 am

    HI Nagal,

    Maaf, saya tiada buku dalam bahasa Melayu.


  50. Tom Snively

    April 15, 2011 at 2:57 pm

    I want to learn how to fix a projection tv it is a Sony KP-46WT510. when u turn it on all it says is auto zap. I have not connected an antenna or cable box yet to begin troubleshooting. Can I use a splitter an connect to one box. Would it then always be on the same channel as the other set?
