No Display In PC ASUS P5LD-VM Motherboard Repaired

By on January 29, 2016
PC ASUS P5LD-VM repaired

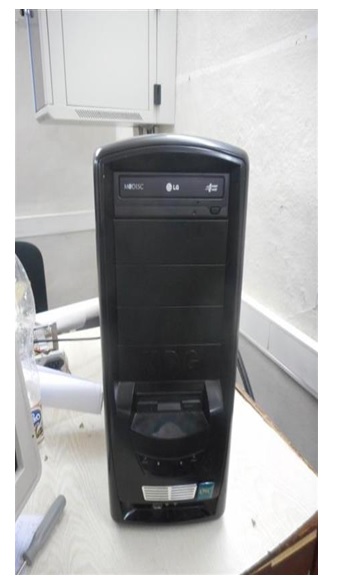

This PC (ASUS P5LD2-VM/S) was brought to me and the complaint was the Motherboard was fully dead.

pc repair

The lateral cover was dismantled (only two screws) to check on the inside especially the Motherboard.

pc motherboard repair

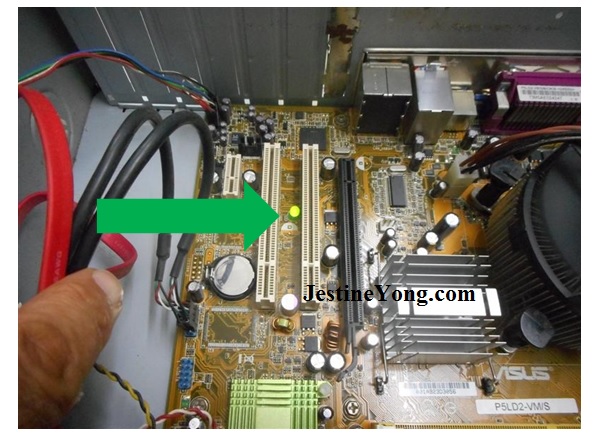

First thing I saw in the Motherboard was the Onboard LED, so far everything was good.

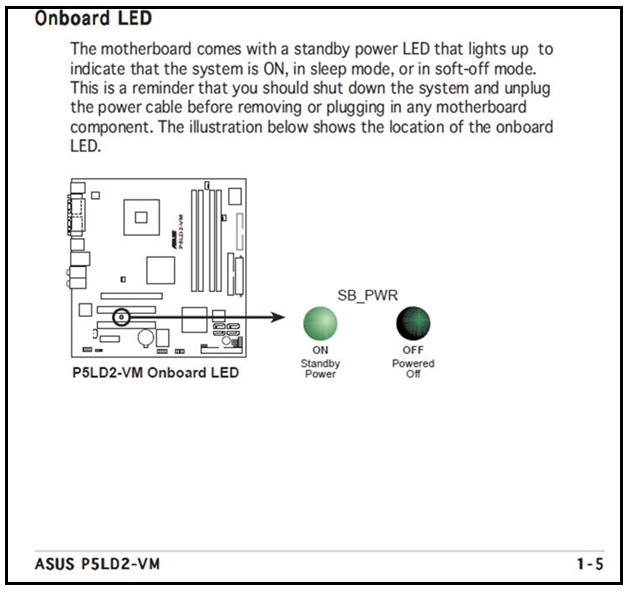

Look at the extract of the User Manual of this Motherboard in the photo below.

motherboard user manual

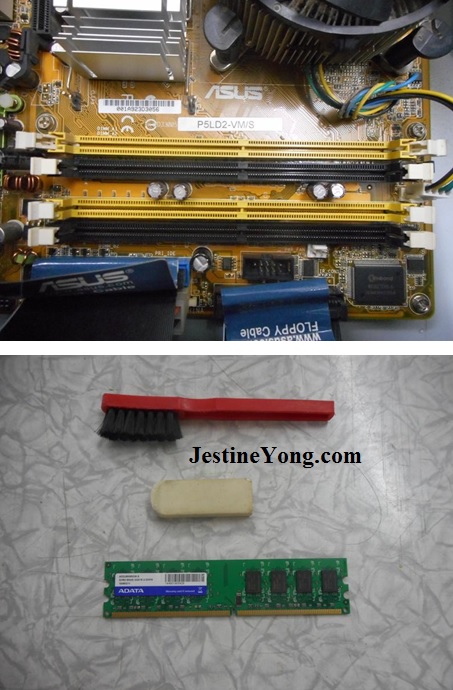

First idea that came to my mind was to extract the RAM DDR2 module of the PCB to clean the golden contacts with my STAEDTLER eraser.

cleaning ram

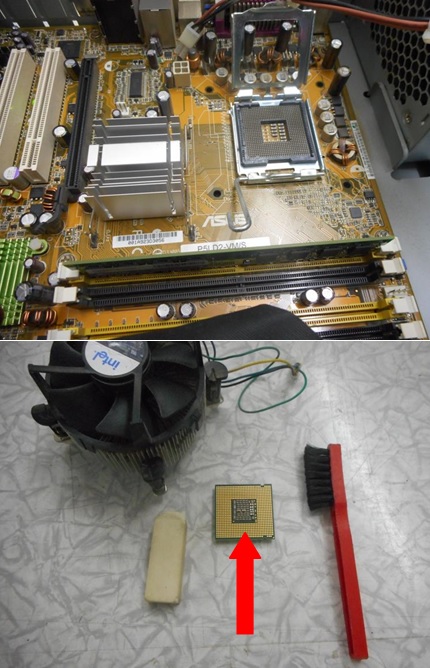

When it was cleaned and inserted into its slot, the PC was turned on, but there was no Video-out. Then other idea came to my mind (idea that has save me in some other occasions), to extract the Microprocessor for cleaning its golden contacts with the same STAEDTLER eraser.

cleaning cpu ic

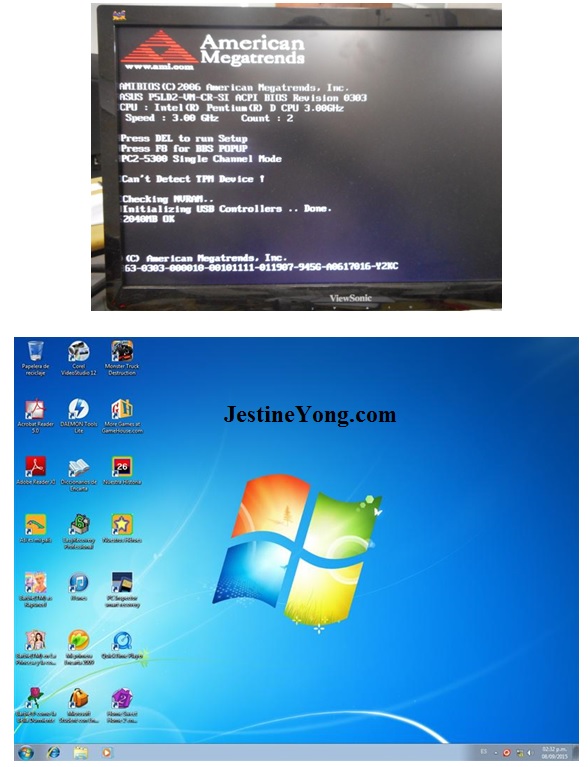

When it was inserted into its LGA-775 slot and the PC was turned on, look at the photos below-see what happened then:

pc repairing

This time there was Video-out and the Motherboard was brought back to life. Mission accomplished.

humbertophoto5





















This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Note: You may check his previous repair article in the below link:

https://www.jestineyong.com/no-display-and-restart-in-pc-repaired/
