7 Inch Notebook Power Adapter Repaired

By on March 28, 2015

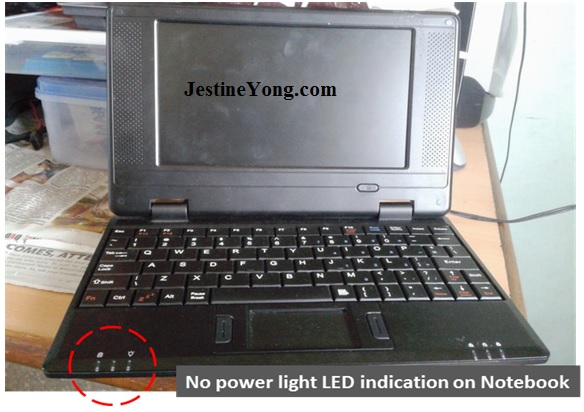

Customer visited my place with 7 inch notebook with the complaint of power On intermittently. When I have connected notebook with power adapter on mains there was no power light LED indication on notebook.

power adapter repair

I have tested power adapter for voltages but I did not found any output voltages and this means the culprit is the power adaptor itself.

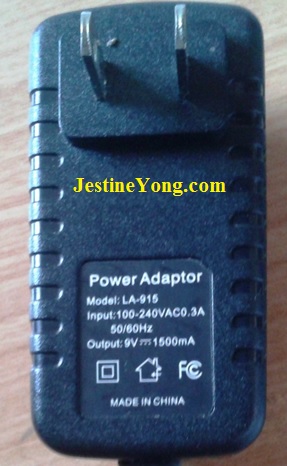

On visual inspection I found this adapter’s output power rating is 9VDC with 1500mA.

power adapter repair 1

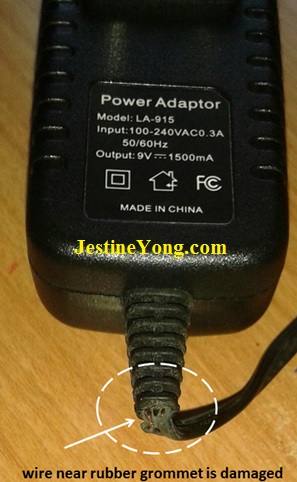

So I have decided to open the power supply and check if I could find some burn mark or physical damage. While opening the adapter I found the wire near rubber grommet was damaged.

power adapter repair 2

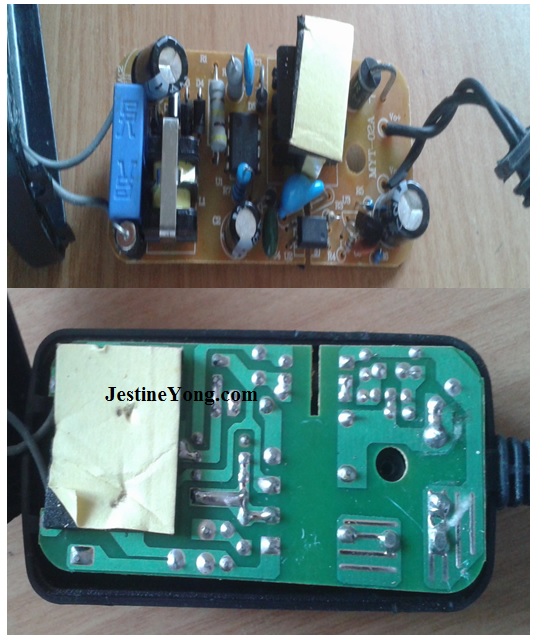

So for this repair work I had to open the adapter and I did not find any physical damage/ Burn mark. Tested all surrounded parts by meters everything seems to be ok.

power adapter repairing

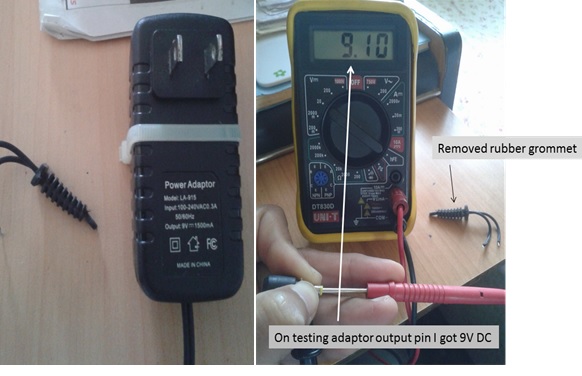

So final conclusions I had to cut the damaged wire and resolder the good one and once the power was applied the meter read  9.10V which means the power adapter is good.

power adapter repair 4

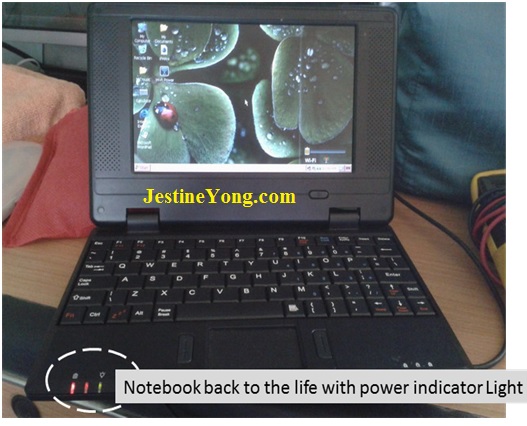

Hence I have connected the adapter to the laptop and it can be turned On and managed to bring the laptop back to life again.

notebook power adapter repair

This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.

laptop repair

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!

Likes(88)Dislikes(3)

5 Comments

  1. Merlin Marquardt

    March 28, 2015 at 8:42 pm

    Very good.

    Likes(4)Dislikes(0)
  2. Robert Calk

    March 28, 2015 at 11:42 pm

    Good job Yogesh. Sometimes people miss the simple faults.

    Likes(2)Dislikes(0)
  3. Peter O

    March 29, 2015 at 7:51 am

    Those pesky twin conductor leads regularly fail at the junction with the grommet.
    This has happened to me more often than other failures & always the grommet is of poor design & too stiff as is the cable it should protect.
    Then of course users tend to apply strain to their cables without thinking.
    You were lucky, generally I find that the shorted cables at the failure point cause other damage which makes any repair uneconomic.
    Replacements from Ebay are generally low cost.

    Likes(0)Dislikes(0)
  4. BHUPENDRA THAKUR

    March 29, 2015 at 10:16 pm

    Hi Yogesh,
    Good job Keep it up and thanks for sharing.
    Regards.
    BHUPENDRA

    Likes(0)Dislikes(0)
  5. Humberto

    March 30, 2015 at 7:48 pm

    Hi Yogesh, good job. Another device saved from the dump. Congratulations.

    Likes(0)Dislikes(0)
