Philips CRT TV set was slow to coming on repaired

By on August 28, 2013

A guy brought this TV to my shop. He explained the problem of the TV set. He turned it on but it took about five minutes to come on. From experience, this is a capacitor problem and it should be an easy fix. At least, that is what I thought but it turns out to be a difficult one. Here is the story.

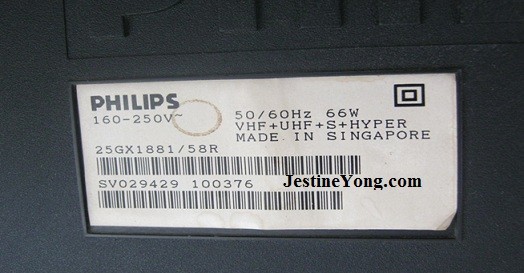

 crttvrepair

To be honest with you, I do not like Philips TV sets. It does not matter what kind of TV set it is. I just do not like Philips TV sets. They are too complicated to work on. Anyway, the moment I took the cover off, I saw all this dust covering the board. The customer told me that this TV set was put in the storage room for more than a year.

 crttvrepairs

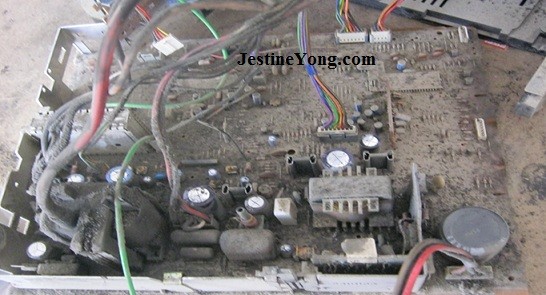

Testing with ESR meter, I had to replace all the capacitor you can see in the photo. Before I did that, I had to blow all the dust away so I can see what parts I am dealing with. Sorry I do not have the photo of the clean board. Anyway, after replacing all these capacitors, the TV started coming on in less than five minutes. This was a step closer to fixing it but not fully repaired yet.

What could be the problem here? I was thinking out loud. From experience, replacing these capacitors should have solved the problem.

Then I realized something, the fly back transformer was humming too loud, and it did not sound right. I took out the hair dryer and heated up the fly back transformer and to my surprise, the TV came on. It stayed on for a long time but the moment I unplug it, the same problem happens again and I have to heated up to get it working. Again, capacitor problem but why this is happening?

crttvrepairing

The answer to the humming noise on the fly back, I found a transistor C368 just in the fly back area.  It was failing under load.  I also found 4.7 UF/35 volts in the power supply. It was a small capacitor that I did not see before that was causing this delay in powering up the TV set. Mission accomplished.
