Uniden Phone Power Supply Repaired

By on February 8, 2015
wireless phone charger repair

This story is about a wireless UNIDEN (VietNam made) phone and the complaint was the phone never switched on, and therefore, the owner could not use it.First thing done was to disassemble the Power Supply Unit (PSU) which had the following features:

  • Output: AC 8 volts.
  • 300 mA.

The photo below shows the base of the phone.

wireless phone charger repair

The PSU was disassembled. Once it was in my hands the continuity of the primary winding of the transformer was checked with a Digital Multimeter. There was no continuity, now I had a clue to continue my job.

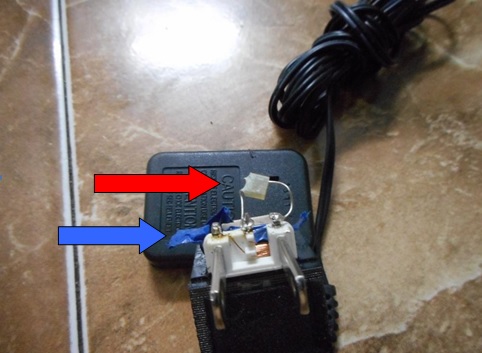

I had an idea which has saved to me in many occasions: to break the isolation ribbon (blue colour in this case) of the primary winding of the transformer. Why? Because in a great deal of cases the manufacturers hide a fuse in this place, look at the photo below.

 wireless phone charger repair1

As you can see in the photo above the fuse was hidden under the isolation of the primary winding. The fuse was tested with the Digital Multimeter and it was open. Therefore it was substituted for a similar one. The PSU was connected into the AC outlet of the wall and there was AC out in the secondary winding. The PSU was assembled again and connected to the phone.

The DC-out of the base was tested and it was fine, look at the photo below.

wireless phone charger repair2

The wireless phone could be connected to its base now.

 wireless phone charger repair4

 The owner was very happy because he could use his wireless phone again. Mission accomplished.

humber

This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.





Likes(28)Dislikes(0)

6 Comments

  1. Robert Calk

    February 9, 2015 at 12:56 am

    Good job Humberto. When I fixed my sons' fan that had a bad thermal fuse on the motor, I bought a bunch of them in various temps to have on hand the next time I need one.

    Likes(1)Dislikes(0)
    • Humberto

      February 10, 2015 at 9:23 pm

      Thanks Robert

      Likes(0)Dislikes(0)
  2. Amir Mukhtar

    February 9, 2015 at 2:35 pm

    Mr. Humberto Rodriguez Thanks you for your Nice Article.
    Mostly, ITE Adapters having Thermal fuse inside the Tape Insulation, Which saving amount to Re-wind transformers.

    Good Job and Keep sharing expertise with us.

    Thanks you
    Amir MUkhtar AShrafi

    Likes(1)Dislikes(0)
    • Humberto

      February 10, 2015 at 9:24 pm

      Hi Amir, you are welcome

      Likes(0)Dislikes(0)
  3. Mark Tembo

    February 13, 2015 at 10:30 pm

    Smart job indeed! thanks.

    Likes(1)Dislikes(0)
    • Humberto

      February 16, 2015 at 10:33 pm

      Thanks Mark Tembo

      Likes(0)Dislikes(0)
