Replacement For SMD Diode

By on January 16, 2010

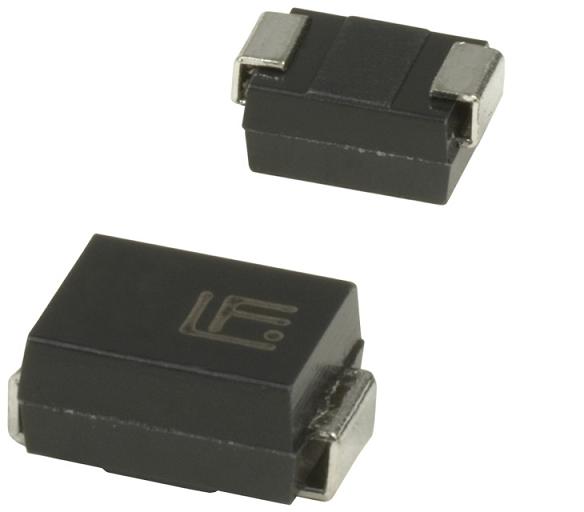

smddidoe

If you come across a SMD diode that the part number could not be found from the internet, what would you do? Assuming the SMD diode had a short circuit. Do you just remove a similar size SMD diode from another board (although with different part number) and test the circuit out? Although i rarely see SMD diode shorted, if i come across one and i do not know the spec, i would just use Uf4007 diode to test the circuit. Since i have no other choice, so far this is the best method for me to test the circuit and hope that it will work.

What would you do if you face similar problem like me?

Likes(6)Dislikes(3)

17 Comments

  1. Andi Sapli

    January 16, 2010 at 7:28 pm

    Hi Jestine,

    I have tried this before for a JVC TV with power cut off after a few second,its not a diode problem but a transistor problem.I accidently damage the Smd transistor and hard to find the original part.I knew that the trans was a NPN trans so I have no choice ana I replaced with a normal bipolar NPN transistor and it works perfectly.I think for the diode also can.

    Thanks

    Andi Sapli

    Likes(1)Dislikes(0)
  2. admin

    January 16, 2010 at 8:37 pm

    HI Andi,

    Thanks for the good info!

    Jestine

    Likes(0)Dislikes(0)
  3. Waleed

    January 17, 2010 at 4:44 am

    good info about the diode. I came across a shorted smd diode in the phone base. someone put a phone base that was made in the states and need only 110 volts, he put it on 220 volts. the transformer was brunt along with some parts inside the phone base. one of the parts that gone bad was a diode. it has writings on it so I replaced it without any problems.

    Likes(0)Dislikes(0)
  4. admin

    January 17, 2010 at 5:01 am

    HI Waleed,

    Thanks for sharing!

    Jestine

    Likes(0)Dislikes(0)
  5. Tomas R

    February 16, 2010 at 6:05 am

    Hi,
    I am repairing crest audio power amp and some components were SMD TYPE OF DIODE was shorted, Is There any replacement which I Can easily get in the market as a replacement?the value showing in the part is L K then at the bottom part 3 A and and when I look at the same amplifier the the part number of the diode is different shows LK 44 A, My question is, Is it posible if I can use any ordinary diode as rectifier? or is there any posible effect if I change it,with?

    Many things...

    Likes(0)Dislikes(0)
  6. admin

    February 16, 2010 at 9:52 am

    Hi Tomas,

    Usually it is very hard to find replacement for diode in SMD package. Yes you can always use a normal diode as rectifier for replacement. Let the machine run to see if the diode hot or not. If it is hot then i guess the replacement part would not work and you may need to replace with other part number.

    Jestine

    Likes(1)Dislikes(0)
  7. burhan

    June 25, 2010 at 6:45 am

    hi i have circuit of mercedes benz diagnosis multiplexer, i check the diode with the multimeter what i did is i put the multimeter in diode function mode and then i removed 1 leg of diode from the circuit and test it showing short so what dodes it means whether i should replaced with another or is there any other to test that diode. please reply

    thanks
    burhan

    Likes(0)Dislikes(1)
  8. admin

    June 25, 2010 at 7:58 pm

    HI Burhan,

    If you have confirm that it is a diode and have tested it with your meter and it shows short circuit then the diode is faulty and need replacement.

    Jestine

    Likes(1)Dislikes(0)
  9. Jason

    October 20, 2011 at 3:25 am

    I am looking for a replacement component. It is labeled D1 on the board which I assume to be a diode, or transistor of some type and it has the label L4 printed on it. The picture below shows what it is if anyone knows what it is that would help me a lot.

    This is what I need.
    http://i329.photobucket.com/albums/l368/Zocons/DiodeL4.jpg

    This is what I have.
    http://i329.photobucket.com/albums/l368/Zocons/D1L4Missing.jpg

    Likes(0)Dislikes(0)
  10. admin

    October 21, 2011 at 2:19 am

    Hi Jason,

    Referring to the link below l4 could be a schottky diode:

    http://www.marsport.org.uk/smd/mainframe.htm

    Jestine

    Likes(0)Dislikes(0)
  11. Marulitua Hutabarat

    October 21, 2011 at 3:05 am

    Hi Jestine,
    Let me know you, I've been repair the smps power supply 24V.
    Two mosfets broken and the other smd part, one diode broken too.
    The code was 2U67 and it's difficult to find the same type.
    What's your suggest to replace that smd diode part?
    Thanks in advance.
    Marulitua Hutabarat

    Likes(0)Dislikes(0)
  12. admin

    October 24, 2011 at 12:36 pm

    HI Marualita,

    Sorry no info on that part number and i guess you may need to try to put in the bigger size diode instead of the SMD. Try UF4007.

    Jestine

    Likes(0)Dislikes(0)
  13. ALAIN

    June 13, 2012 at 2:14 am

    Hello,

    I seek for Laptop Packard Bell IPower GX-M-101FR

    I research : diode CMS PJ 86 LV

    In place D1 on the motherboard near the jack 19 volts.

    Or characteristics of this diode:
    intensity, tension….

    Cordially
    Alain

    Likes(0)Dislikes(0)
  14. Lai KM

    October 18, 2014 at 9:59 am

    Toshiba LCD TV model 32AV600E with no picture connected to antenna and video. found that faulty SMD diode marked 5-6 from main board and could not find the manufacturer. how to fix this ?

    Likes(0)Dislikes(0)
    • Jestine Yong

      October 18, 2014 at 5:32 pm

      Sorry no info on this. Guess you may have to use other part number to test it out (trial on error).

      Jestine

      Likes(0)Dislikes(0)
  15. mahesh

    November 7, 2019 at 1:40 am

    6-501-696-01 DIODE RSA39LATE25 can you help me with this diode it was shorted and any replacement for it

    Likes(0)Dislikes(0)
    • Jestine Yong

      November 7, 2019 at 9:08 pm

      Hi Mahesh,

      Sorry I do not have info on this diode replacement.

      Jestine

      Likes(0)Dislikes(0)
