Transformer Problem In USB FM Receiver

By on August 24, 2015
fm radio repair















fm radio repair

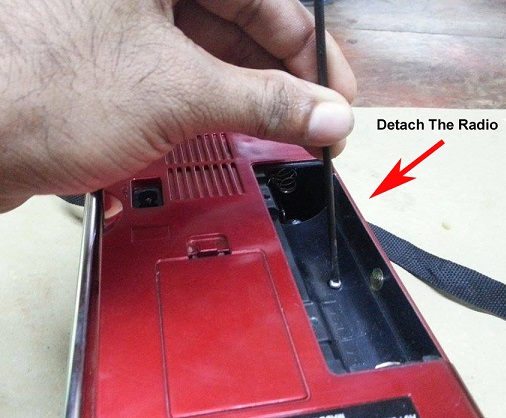

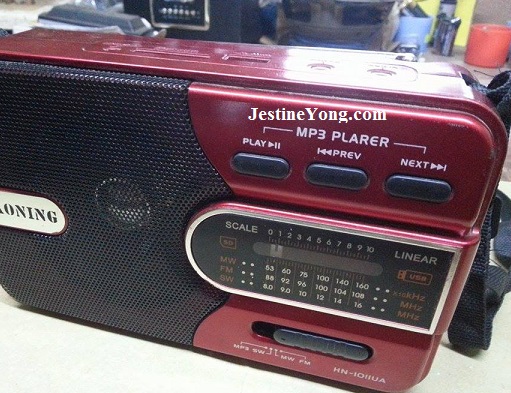

This USB FM radio receiver came in for repair with the complaint of no power. With few screws removed, the cover can be lifted up.

repair radio

I powered On the set and check if there is any AC voltage at the secondary side of the 3 volt linear transformer.

And the result, there was totally no output voltage which could mean either the transformer itself have problem or the primary side area has an open circuit.

transformer bad

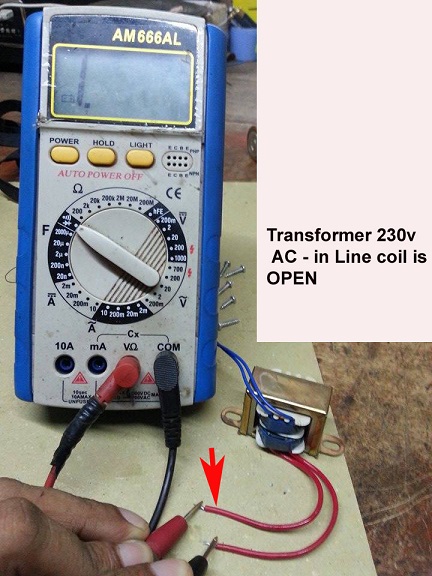

When I checked on the linear transformer primary winding I found that it was having problem.

repair radio receiver

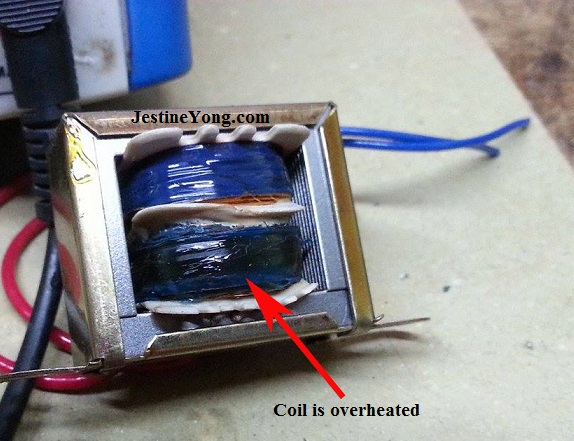

And when I carefully observed the transformer, I saw that there was burnt mark in the transformer probably overheated-see the photo below:

burnt transformer

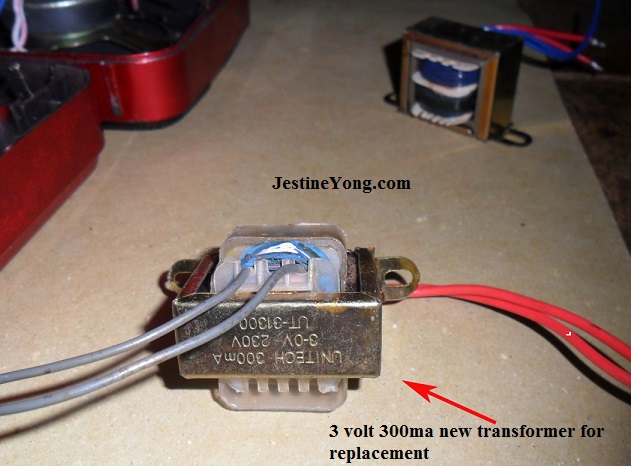

Since the transformer already burnt, I left no choice other than to replace with a new linear transformer with the specification of 3 volt output 300 Milliamp (ma).

replace linear transformer

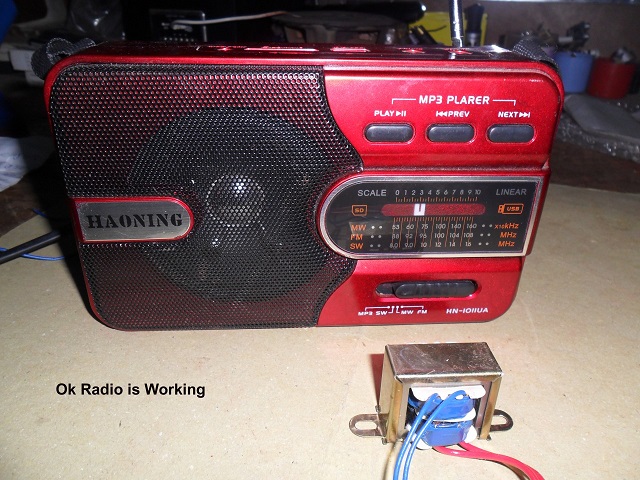

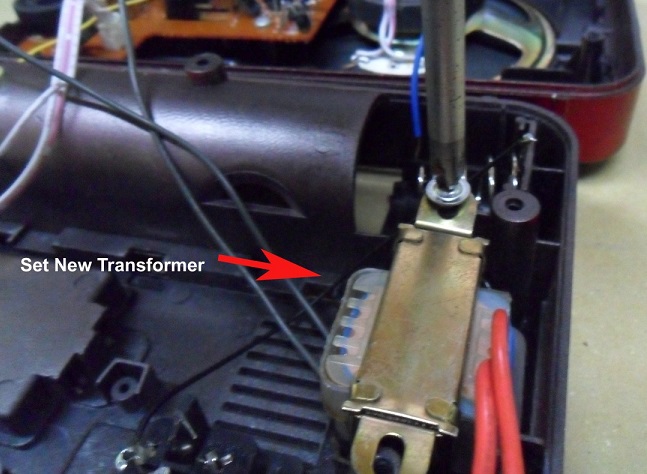

It was working fine so I installed the transformer back to its location.

install transformer

It is not tough to repair electronics devices. The best you must know the systematic approach of the troubleshooting procedure. If you are a beginner and would like to venture into this repair field whether to be a repairer or just for hobby interest you can check out Jestine’s Ebook here.

repair transformer radio

suranga

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.
