Videocon LCD TV StandBy Mode Repaired

By on December 30, 2015
standby lcd tv repair















Videocon LCD TV StandBy Mode Repair

This Videocon LCD TV complaint was red light or in standby mode and it can’t be turned on using the remote control or even by pressing on the front panel power button.

Usually standby mode problem in TV is caused by the mainboard section or improper dc supply voltage by the SMD voltage regulator IC.

Videocon LCD TV StandBy Mode Repairing

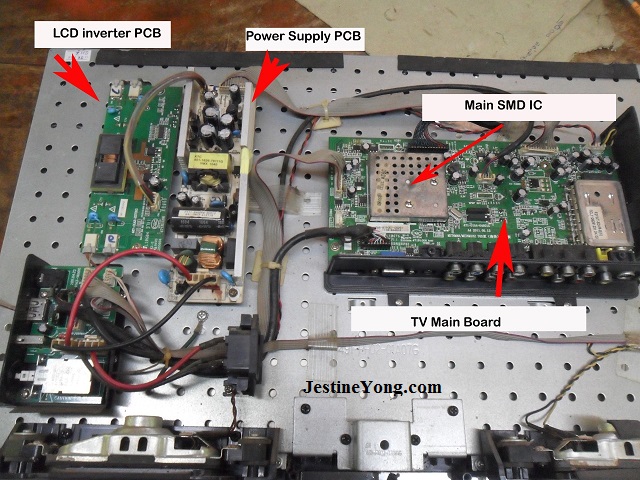

Once the cover was removed, I could see three circuit boards. One is the power supply board, one is the Inverter board and the last one was Mainboard or Main SMD IC board.

lcd tv boards

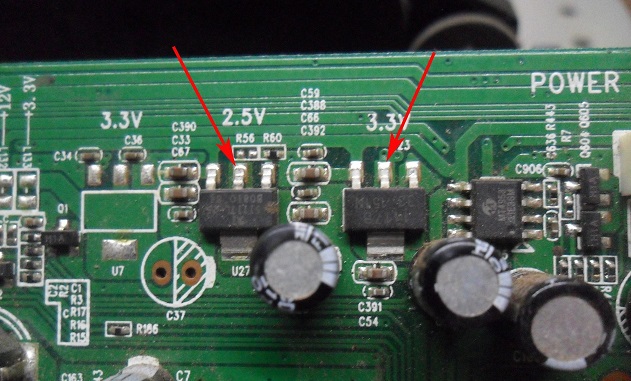

I took out my digital multimer to check on the SMD voltage regulator ICs 2.5 volt and 3.3 volt and both ICs were found to be good.

lcd tv repair

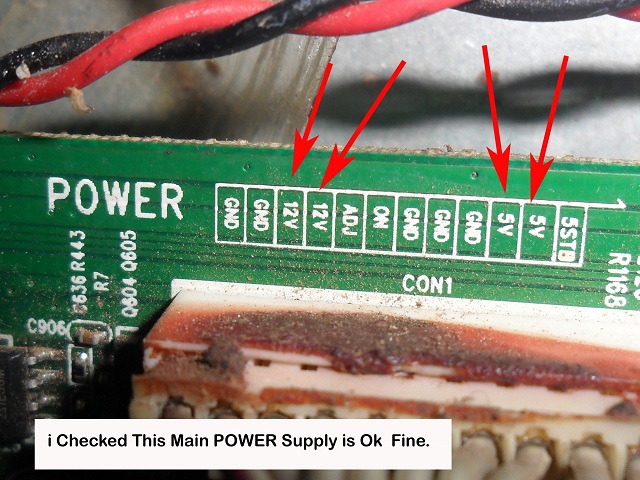

The 12 volt and the 5 volts were presence also.

videocon lcd tv repair

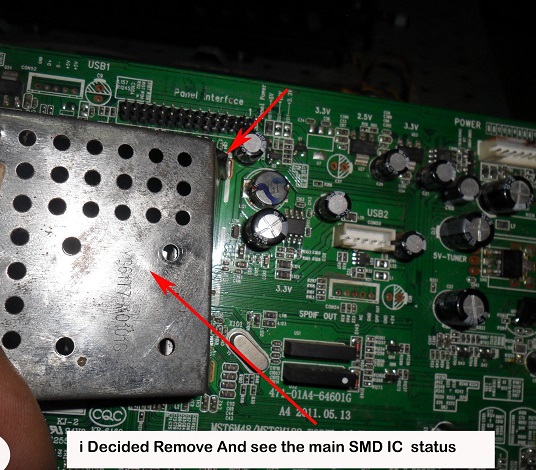

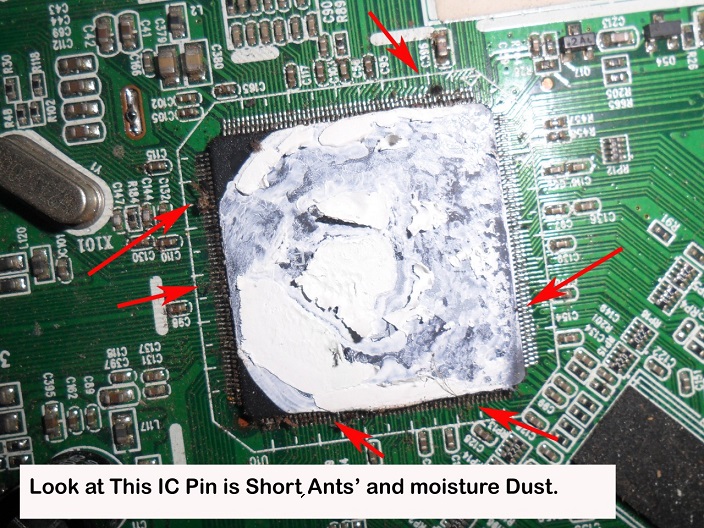

Since the DC supply voltages were good, I now focused on the mainboard MCU IC. This IC was covered with a metal shielding and once it was removed I was surprised to see dead ants and dust on the IC legs/pins. See the two photos below:

lcd tv mainboard mcu ic



lcd tv mainboard repair

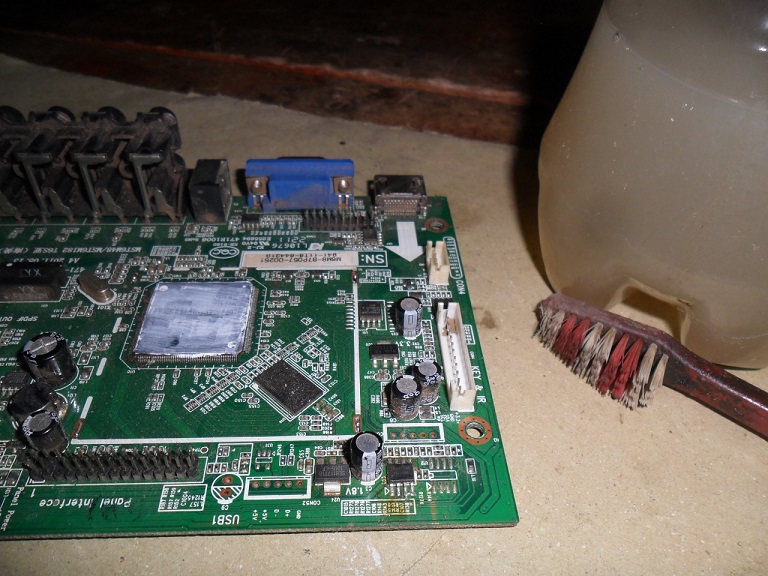

Next, I cleaned up the IC area using a used tooth brush and with a cleaning solution.

repair lcd tv mainboard

clean mcu ic

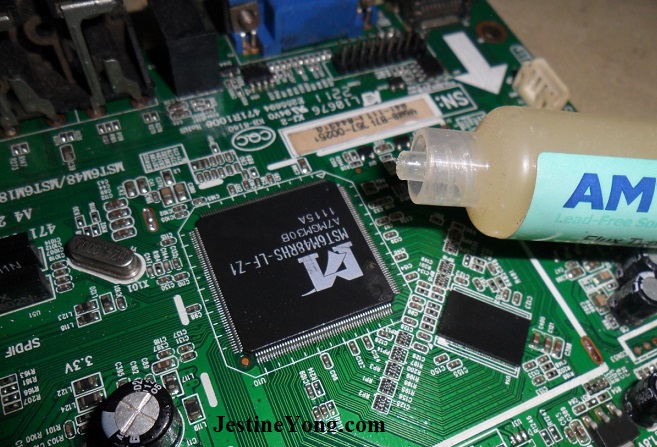

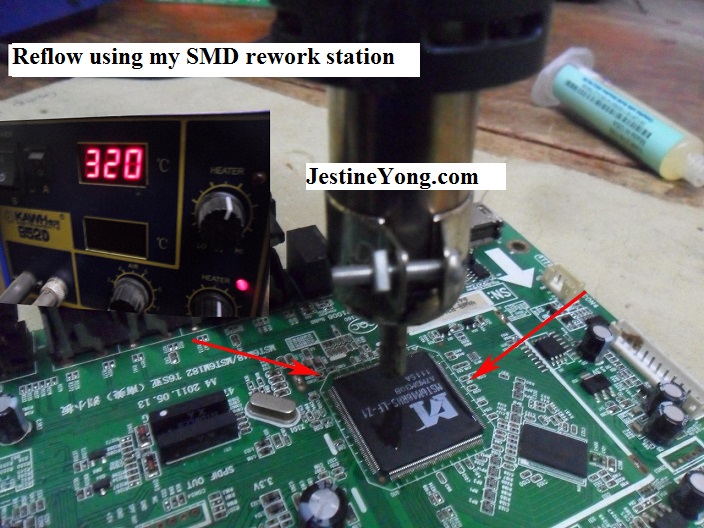

Once done the cleaning, I do a reflow on the IC using my SMD rework station.

reflow mcu ic



When I put back the mainboard and powered On, the display came out and no more red light-problem solved! If you want to learn how to repair LCD or LED TV you can check out Kent’s ebook here and Damons’ ebook here.  If you are a beginner in LCD TV repair you can check out John’s ebook here.
