Display Problems In CRT TV/Monitor
By Jestine Yong on May 9, 2010

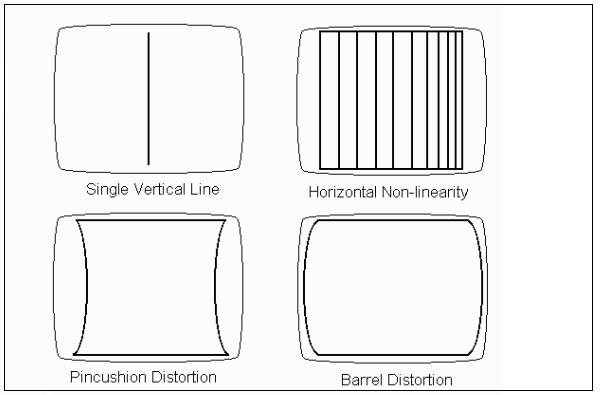

I suggest that you print out this images of CRT TV/Monitor display problems for reference. To some beginners, they do not know how a pincushion or a keystone distortion problem look like. It is important to know these images so that you will know which section to check when you test the CRT TV/Monitor with a test colour pattern program or generator. Please click on the ebook cover below if you want to be good in CRT TV Repair:
Likes
(86)Dislikes
(20)
(86)Dislikes(20)
346 Comments
Leave a Reply
Halesh nc
June 21, 2016 at 9:09 pm
Sir I am also having the same prob red screen no image ritrus lines plzz help
I checked the transistors CRT board and some basic troubleshootings plz help me
Jestine Yong
June 22, 2016 at 8:52 pm
Hi Halesh,
Have you compare the signal(voltage and waveform) between the red and the blue/green transistors? Some times a shorted red cathode also can cause reddish with flyback lines.
Jestine
Arun
January 21, 2017 at 4:52 pm
Hi sir my Samsung 21 CRT TV red and blue colour mixed screen flyback lines no picture i check the voltage of rgb is perfect if i look deep on screen they getting red blue lines colour
Ahmed Naser
January 22, 2019 at 9:28 am
hi mr. jestine yong
how are you ?
I am in a problem i repairing crt tv main voltage 110 volt to flybake transformer , and replace new other one but no picture and light screen and no sound .
what can i do to fix this problem
please tell me in short time
Robbin Mwangi
August 18, 2016 at 5:22 pm
My crt tv is showing no pictures nor sound.... i was watching then there was a red screen for a few seconds then the screen went off n the sound too.... what might be the problem?
Jestine Yong
August 20, 2016 at 10:40 am
HI Robbin,
I suggest that you check if there is any dry joints in the CRT board especially on the CRT white socket and transistors.
Jestine
miljon
September 4, 2016 at 3:29 pm
hi i have problem with my crt tv, there is no signal only blue is displayed, i think the problem is in the tuner,,how can i fux this,thanks
Jestine Yong
September 5, 2016 at 10:54 am
Hi Miljon,
Have you tried connect to a DVD Player?
Jestine
ibrahim
September 14, 2016 at 3:55 pm
hi,I have a sony 14" crt tv.it has sound but no picture.when you press menu button it shows menu on screen.it has no picture when input video signal.
Jestine Yong
September 15, 2016 at 9:54 pm
Hi Ibrahim,
Have you tried increase the screen G2 voltage?
Jestine
Mzungu
June 3, 2019 at 3:40 pm
Usually increasing the voltage might bring faint images. I have a similar problem here and I'm thinking about replacing tda 8843.I assume this might be the source of problem.
Rohith
September 15, 2016 at 12:51 pm
Hi sir I have LG computer monitor. Its power on but nothing show on the monitor. I am replaced the board with same monitor. But again nothing show on the monitor how can I fix the problem.
Jestine Yong
September 15, 2016 at 9:53 pm
Hi Rohith,
Did you replace with the same board? Does it have power? What about high voltage? If no high voltage then there will be no power.
Jestine
sahin rahman
September 15, 2016 at 11:21 pm
sir,i have a pincushon distortion problem of crt tv . how to fix it please..
Jestine Yong
September 19, 2016 at 11:08 am
Hi Sahin,
Check for shorted modulation diode, shorted pincushion transistor or even low B+ supply voltage.
Jestine
Hopewell
September 16, 2016 at 6:55 pm
my TV 74" there is no picture but the sound is there what's wrong
Jestine Yong
September 19, 2016 at 11:06 am
Hi Hopewell,
It can be due to low G2 screen voltage, missing heater voltage, no B+ supply, no pulse signal to base of HOT and even weak picture tube.
Jestine
Arif
September 19, 2016 at 1:26 am
Sir
My C.R.T.T.V does n't start,though it gains current from board.I know it because as soon as the board switch having been on the red bulb being in front of the T.v lights. But for opening the T.V when I use the remote or click the T.V opening switch,there is no reaction in the T.V.It remains same as it was. Why is it?
Jestine Yong
September 19, 2016 at 11:15 am
Hi Arif,
Do you mean it has power but only show Red LED light?
Jestine
Faraz
September 23, 2016 at 11:04 pm
Sir i have 29 samsumg CRT TV its problem is its display size gone small
Jestine Yong
September 26, 2016 at 9:27 am
Hi Faraz,
What is the B+ supply voltage?
Jestine
Prashanth Suvarna
September 29, 2016 at 1:00 pm
TV was dead due to high voltage which destroyed the board.A different new reliable board, which I have used in many other tv,s was installed. Got an odd pic first due to open collector res of opt vdo transistor of one of the guns. Now pic has come, but its refusing to get"balanced"(RGB setting is on remote) After shutting dwn clr completely,I have still never got a perfect B/w pic. The best Pic has pink in place of "white" and is got a tired pic look no matter how much I juggle the on screen settings or the screen control on the Eht. The pic is pale lacks strength and "bleeds if pushed a bit more".I don't suspect the kit as I've never had any probs on this account. The picture on the tube using the previous original board was excellent. Something tells me that the PT is the prime suspect... any leads will be deeply appreciated... Thank you.
Jestine Yong
October 2, 2016 at 4:31 pm
Hi Prashanth,
If the picture is weak, even with a new original circuit board it would be hard to tuned to the balanced color. If you get a nice OSD menu color then it will not be the picture tube fault.
Jestine
Hank Henderliter
October 17, 2016 at 3:42 am
I have Santo 27in crt. Heard pop in TV, now no picture, just black screen, but good sound. Do I need a new picture tube? Thanks for any help.
Jestine Yong
October 17, 2016 at 12:15 pm
Hi Hank,
It sounds that that your problem is not related to picture tube. It is more likely could be a capacitor have exploded.
Jestine
Ravin Kumar
November 17, 2016 at 6:08 pm
The working 22 inch CRT TV , In that resistor blown and before blown picture comes within fraction of second goes to OFF.This happens at horizontal section parallel connected resistor and diodes. May I know what may be the issue,how can I resolve this..?
Daniel
November 23, 2016 at 1:49 pm
Hi; I'm Daniel from Rivers State of Nigeria I had a burnt fly back transformer replaced; And non of write-ups is displayed,tv is on,blue background is there,but when menu is pressed nothing will be seen;And when program is pressed,I noticed the background moves from blue to blue! (no write-ups,no Image.)
Jestine Yong
November 28, 2016 at 10:07 pm
Hi Daniel,
Did you replace with the original flyback? Have you connected to a DVD player and test it?
Jestine
Andre
November 24, 2016 at 7:29 pm
I have 54cm lg crtv no picture but sound is okay I get 185v on cpt board I have replace the ic cpt still no heaters plz help
Jestine Yong
November 25, 2016 at 8:32 am
Hi Andre,
In order for the flyback to work and get heater voltage the flyback must receive B+ voltage which you already got and pulse waveform to the base of HOT. And also the flyback should not have problem.
Jestine
KHYeoh
November 24, 2016 at 10:48 pm
Mr. Jestine, hi, I have a 14" Hitachi crt tv. When switched on, there is picture and sound, BUT the picture gradually disappears. Sound is still good when that happens. Sir, what could be the probable cause? Thanks.
Jestine Yong
November 25, 2016 at 8:34 am
Hi KhYeoh,
It can be dry joints. Check to see if there is screen voltage (G2) about 250vdc and the heater in the pc tube lights up.
Jestine
junsky
November 28, 2016 at 5:54 pm
sir i have panasonic crt tv. It has display but its only 6" and its blue.i tried to change capacitors but still the same.ive tried to resolder joints but nothing works.
Jestine Yong
November 28, 2016 at 9:16 pm
Hi Junsky,
6" wide or 6" height?
sisay
November 28, 2016 at 8:11 pm
Hi dear Jestine
My LG led 24 inch tv, model number 24LB451A-TA(M10) has sound but no picture. I opened the back cover and I got two boards. One the power board and another on the top side horizontally longer board.
I unscrew the small nuts and turned over the board and got a very small component burnt. I couldn’t know what that burnt component is. I couldn’t even get the same tv in the surrounding to compare it. Pls help me to know it if that might be the problem.
Thanks sisay.
Jestine Yong
November 28, 2016 at 9:46 pm
Hi Sisya,
You need to look for the same TV or schematic/service manual to find out the burnt parts.
Jestine
sisay
November 29, 2016 at 9:01 pm
Good morning Dear Jestine
I hardly tried to look for the same TV. But unable to get that. how can i get its schematic diagram or service manual pls?
glad to see you again
Jestine Yong
November 30, 2016 at 8:11 am
Hi Sisay,
Good morning. Try search from eserviceinfo.com
Jestine
Rejith
November 29, 2016 at 9:26 pm
Hi Sir
my 14" crt color tv had starting problem..after replacing the exploded ceramic capacitor tv monitor was not displays
Jestine Yong
December 5, 2016 at 9:47 pm
Hi Rejith,
If the cap was exploded then you need to check around the circuitry to see if there is other components that has gone bad as well.
Jestine
Rejith
November 30, 2016 at 2:51 pm
Dear Mr.Justine
my crt tv shows "factory" at top left .How it can be fixed? please help me sir
Jestine Yong
December 5, 2016 at 9:45 pm
Hi Rejith,
It can be caused by corrupted eeprom ic data. You need to look for the service manual how you can enter into the service mode and set it to default. If the problem still the same then the eeprom ic probably the data could have been corrupted.
Jestine
sisay
November 30, 2016 at 10:05 pm
Hi Dear Jestine,
When I power on JVC 24 inch MODEL NO. AV-14FTG has sound. But, the picture goes off after about one minute. I turned off the power and wait for some minutes and power it on again. The picture appears for about a minute and goes off again. But the sound is ok. What should I try sir?
With great respection
Jestine Yong
December 5, 2016 at 9:48 pm
Hi Sisay,
Have you checked if the output voltages from the power supply slowly rise or not. if it slowly rise it can cause shutdown or power turn off problem.
Jestine
sisay
December 8, 2016 at 8:00 pm
Hi Dear Jestine
As you told me, I checked JVC 14 inch MODEL NO. AV-14FTG if the out put voltage from the power supply is rising or not. And I tested the out put voltages on the secondary out put diods (they are 3 out put diods)and got the following valus.at my Dijital Multi Meter set 1000 Dc.
-At Diod 1 = 114 or 115
-At Diod 2 = 022 or 023 and
-At Diod 3 = 011
What else sould i do next sir?
glad see u again
Jestine Yong
December 10, 2016 at 10:38 pm
Hi Sisay,
Did the output voltages rise? Can you feel if there is a high voltage?
Jestine
sisay
December 11, 2016 at 7:39 pm
Hi Dear Jestine
Had i checked those voltages before and known the vales at the out put when the tv was at normal condition, I could have aderstood whether the voltages i have seen now are higher or not. But, those voltages i got now are not rising up continouosly or lowering down continouosly. The are just constant values when i check them four times.
See you sir
Jestine Yong
December 13, 2016 at 10:42 pm
Hi Sisay,
Ok noted. Is the high voltage presence? No high voltage means no display.
Jestine
Chris
December 6, 2016 at 10:48 pm
Hi
Please sir. I need your help. When I turn on my CRT TV, when its about to start it flash color on the center of the screen and shut down, though the input power indicator is still on but can't start
Jestine Yong
December 7, 2016 at 8:19 pm
Hi Chris,
Have you checked if the power supply output producing good and stable output voltages?
Jestine
Rohit Mallhan
December 11, 2016 at 10:57 pm
sir my Sony Trinitron 21c inch crt top half screen is not working and bottom half is working.sir pls help me
Jestine Yong
December 13, 2016 at 1:52 pm
Hi Rohit,
Check the negative/positive dc supply to the vertical output ic. It may be low due to bad e-caps.
Jestine
G.S.Sonu
December 23, 2016 at 10:22 pm
I have problem with my crt slim tv led satable but not on no picture no sound led sutable please solution
Jestine Yong
December 28, 2016 at 2:23 pm
Hi G.S. Sonu,
Does the TV have high voltage? What is the color of the power LED?
Jestine
arun
January 3, 2017 at 8:01 am
Hi sir my samsung CRT TV getting horizontal section flickering when change the picture not more flickering just the lines only
Jestine Yong
January 6, 2017 at 4:38 pm
Hi Arun,
Have you checked if the power supply and vertical IC dc supply receiving good and stable input?
Jestine
GEORGE GOLLAN
December 31, 2016 at 1:53 am
Dear sir,the customer has brought the crt tv phillips,saying that it was working ok but abruptly no display only black screen but there is high voltage due to chaa sound,also the bulb is lightening orange ,i think the heater is not problm,but i get the rgb amplifier with 184vdc and 1.4 or 1.4 vdc to other leg,i have resoldered the whole circuit for this crt philips tv but nothing ,
help me what should be the suspect
Jestine Yong
January 6, 2017 at 4:42 pm
HI George,
R, G and B amplifier should have about the same voltages. If you got big differences in the RGB voltages, this means something has gone wrong. Have you checked the screen G2 voltage? If yea then what is the voltage?
Jestine
manoj kumar
January 3, 2017 at 2:22 pm
hi sir
I 've a problem with 21pt2443 model Philips crt color tv.actuall problem was half picture & ifound a shorted vertical ic & replaced it.but accidentally the picture tube base board has shortened with the heat zink while I was checking the board.areddish color appeared in the screen a tv switch offs.Now tv switch ons but no osd(screen is blank) no sound(thru AV)after a while the voltages dropped in the bas board.Pls give some tips.thank u
Jestine Yong
January 6, 2017 at 4:37 pm
Hi manoj,
It is usually hard to locate the fault when it was accidentally created by us and not by nature that it has its own fault. In your case, probably could be the IC fault since there were so many problems. Only the ICs (jungle IC) or some other ICs that can controls so many functions.
Jestine
boaz
March 24, 2019 at 5:17 pm
sir my lg crt tv no picture or sound
Manoj
January 8, 2017 at 9:22 pm
Hi,sir I have sansui 21 inch TV,no picture,but only blue screen display,
Jestine Yong
January 18, 2017 at 10:29 am
Hi Manoj,
Have you tested it with dvd player? any sound?
Jestine
Sukhjinder Singh
January 22, 2017 at 2:23 pm
hi sir
I have a monitor of samsung compony
there ia b+ is 50v when a connect with pc it becones 60 for a second and then again 50v all supply is ik but EHT not make high voltage
Jestine Yong
January 24, 2017 at 4:13 pm
Hi Sukhjinder,
Have you checked if the base pin of HOT have any pulse?
Jestine
Sukhjinder Singh
January 26, 2017 at 8:25 pm
start up pulse come for one second only and then no pulse
Jestine Yong
January 27, 2017 at 9:23 am
Hi Sukjinder,
If the pulse comes for one second and gone this means you have to track backward to the IC that producing the pulse. It can be the IC fault or something that has triggered the IC to stop producing the pulse.
Jestine
Sukhjinder Singh
January 27, 2017 at 9:58 pm
hout pin votage is 12v
is 12v right voltage
Jestine Yong
January 30, 2017 at 1:39 pm
Hi Sukhjinder,
Should check the waveform and not the voltage.
Jestine
dawit lulu
February 17, 2017 at 10:23 pm
hi .....i am from Ethiopia. ..i have Samsung 15inch crt tv ...no display and i chang hot but not done ..the filament is not worker ...then before i Chang the fly back what i shall do plz help me.i want knows more and more on electronic repair tnx so much
Jestine Yong
February 20, 2017 at 8:50 pm
Hi Dawit,
In order for the filament to work the flyback has to energize first. For flyback to energize, it needs B+ dc supply voltage and a pulse to the base of HOT.
Jestine
jagan
February 18, 2017 at 12:19 pm
Eht get 110v but during on time this reduce to 80v and then take more time to on. Is this eht problem?
Jestine Yong
February 18, 2017 at 4:49 pm
Hi Jagan,
Yes it can be due to bad flyback, corresponding circuit or even the B+ supply line itself that can't sustain current draw.
Jestine
geri
February 23, 2017 at 1:14 am
hello my tv is beko my tv have problem scren pincushion distortion is like this image
https://www.google.ro/search?q=pincushion+distortion+crt+tv&biw=1280&bih=691&source=lnms&tbm=isch&sa=X&sqi=2&ved=0ahUKEwj3g7fzmaTSAhWCjCwKHVuKBzAQ_AUIBigB#imgrc=LPp9sXfQlJ-zBM:
can please where is the problem tranzistor or what.
Jestine Yong
February 24, 2017 at 7:48 am
Hi Geri,
It can be due to low B+ voltage or defective pincushion transistor or shorted modulation diode.
Jestine
BROWNCY
March 10, 2017 at 12:49 am
Hi sir, my samsung tv it power on but, it don't display even the filament don't light too.
I have increase the current but no lighting (filament) and i have read the filament and its okay..
What will I do next?
Jestine Yong
March 13, 2017 at 8:12 pm
Hi Browncy,
Is the flyback energized?
Jestine
jonas
March 19, 2017 at 8:44 pm
my crt tv picture images has been mirror like view what is the solution on it please help
Jestine Yong
March 24, 2017 at 4:22 pm
Hi Jonas,
I can't get your description of picture images has been mirror. Can you elaborate?
Jestine
Rupak Bhowmik
April 13, 2017 at 8:43 pm
I have found that my Ultra slim LG 21FU8VGE having pincushion distortion problem. I would say one more thing that I have faced the same problem before and I have changed a pf 22n 630V St horizontal section, which was connected ground to snubber capacitor 18n 2kV. The same was connected with horizontal output collector pin. After changing the said pf my TV found in order. After running 2 days one linear coil became damage which was connected to the 26V output pin of flyback transformer. After replacing the linear coil I have watched my television for few days. Now I am again facing the same pincushion problem (screen full but pincushion problem). So kindly suggest me how to repair my LG TV???
Jestine Yong
April 19, 2017 at 4:51 pm
Hi Rupak,
Did you replace with original coil? Have you checked all the corresponding components? Is the B+ voltage good and stable?
Jestine
Badri
April 28, 2017 at 4:27 am
Hi sir my CRT TV has blue screen but no vedio and audio I also check in DVD but problem is still ...PL.suggest me
Jestine Yong
May 2, 2017 at 11:02 am
Hi Badri,
Have you checked and replace the jungle IC? what about the dc supply voltage to the IC and eeprom ic?
Jestine
Harrison
May 9, 2017 at 7:35 am
Thanx have really enjoyd your class,the many questions with possible solutions
Joy mnqandi
May 28, 2017 at 5:31 am
Lg CRT TV Rt-54na21t switches on but no picture or sound . had a burning smell when it did this what can i do where can i fix it ,?
Jestine Yong
May 29, 2017 at 9:12 am
Hi Joy,
You need to open the tv up and find out the burning smell. It can be arcing by the flyback that produced the smell.
Jestine
Avishek
June 7, 2017 at 4:14 pm
Sir, The colour of my LG CRT TV some time turns reddish on AV mode what's the problem
Jestine Yong
June 12, 2017 at 10:03 am
Hi Avishek,
What have you checked in the TV?
Jestine
ajin
June 20, 2017 at 7:01 pm
My TV was showing only a horizontal line...how can I repair that..Its LG CRT TV
Jestine Yong
June 22, 2017 at 10:54 am
Hi Ajin,
You can visit the link below for more information:
https://jestineyong.com/tv-single-horizontal-line-repair/
Jestine
subair
June 24, 2017 at 7:55 am
Sir, at ON time my tv picture is not clear. After few minutes it should be clear. What is the problem , pls help me
Jestine Yong
June 24, 2017 at 11:45 am
Hi Subair,
It can be due to bad flyback or weak pc tube
Jestine
Alok Kushwaha
June 28, 2017 at 10:08 am
hello sir
my lg crt monitor 700e shows top half screen and not work properly plz help me si....
Jestine Yong
June 29, 2017 at 5:18 pm
Hi Alok,
Check the vertical output ic section for dry joints or improper dc supply voltage.
Jestine
WISTY
July 14, 2017 at 2:15 pm
Sir,
i also have funu CRT TV which power on with sound but no pictures.
what are the process i should pass through?
Jestine Yong
July 15, 2017 at 5:47 pm
Hi Wisty,
No picture can be caused by lots of factor. Is your TV has high voltage? If no high voltage then you need to check the B+ supply to flyback and a pulse signal to the base of HOT. If have high voltage then check the G2 scree voltage and make sure the heater in the tube is lighted up.
Jestine
jhon marc bares
July 25, 2017 at 6:07 pm
Good day sir, I have problem to my sanyo model st-21ms22, pop up screen display text (clr) and ratle menu option..if i use remote or manual button it doesn't work how should i do sir..
Jestine Yong
July 27, 2017 at 10:42 pm
Hi Jhon,
Without hands on assessment I would be really guessing on what might be wrong. I wish I could be of more help.
Jestine
John
August 19, 2017 at 1:44 pm
Hello, my 14" crt sharp TV (P69 14-inch) has gradually flipped the display upside down. It began folding back from the bottom upwards merely a month ago. I can't figure out what the problem could be as I have little experience in TV repairs.
Any suggestions are appreciated.
Jestine Yong
August 21, 2017 at 8:39 pm
Hi JOHN,
Try check and replace the vertical oscillator/output ic and surrounding circuit.
Jestine
Viki
September 2, 2017 at 11:27 pm
Hi, my 21 inch Sony CRT TV the video just went blank while watching, OSD and sound is perfectly ok. I can see and operate all the menu but no video. I tried different cables and inputs and still the same problem.
B+ and Video board voltage (200V) is ok. Can u give me a clue where I should start troubleshooting
Thanks again n Advance
Jestine Yong
September 4, 2017 at 8:14 pm
Hi Viki,
Without hands on assessment I would be really guessing on what might be wrong. I wish I could be of more help.
Jestine
Sunil
September 13, 2017 at 5:39 pm
Reason of main board problem in my Lloyd led tv
Jestine Yong
September 21, 2017 at 11:14 am
Hi Sunil,
It can be caused by many factors. First you need to find out what is the problem and then tackle the problem using the necessary repair techniques.
Jetsine
Godfrey
September 18, 2017 at 9:44 pm
Hi,my crt 28" Telefunken tv turns on but display half screen with horizontal line, no picture and no sound what could be the problem?
Jestine Yong
September 21, 2017 at 11:08 am
Hi Godfrey,
What have you checked in the first place?
Jestine
S Dash
September 20, 2017 at 6:38 pm
My lg crt tv first goes blur for 30-40 mins after I switch on ..then works fine ..how to repair
Jestine Yong
September 21, 2017 at 11:06 am
Hi S Dash,
Replace the flyback transformer. Sometimes the pc tube can be the problem also.
Jestine
gnana sundari
September 24, 2017 at 5:10 pm
Hello sir
My onida black crt went blank while watching and a beep sound is emitted. I have been told that the picture tube has to be replaced.but I want your opinion.
Jestine Yong
September 25, 2017 at 10:35 am
Hi Gnana,
Weak or bad pc tube can cause blank screen. I do not know what kind of sound it has emitted. Without hands on assessment and PC tube checker on that tube I can't confirm if the picture tube is at fault or not.
Jestine
gnana sundari
September 25, 2017 at 9:11 pm
Thank you for the response
abet07
October 2, 2017 at 10:52 am
Hi sir i have a problem on my sanyo crt tv the picture is in the middle and small horizontal line ..
Jestine Yong
October 2, 2017 at 8:32 pm
Hi,
I suggest that you visit this link for more info:
https://jestineyong.com/tv-single-horizontal-line-repair/
Jestine
