Motherboard ASRock came back to life

By on February 12, 2015
motherboard repair



















The Motherboard of this story is an ASRock KBNF4G-SATA2 and was brought to me from a co-worker; he came very desperate because it was out of order: no video out.

motherboard repair1

Let’s have a look first, I told him.

motherboard repair2

When it was checked on, guess what?

Five bulged e-caps were seen

motherboard repairmotherboard repair4

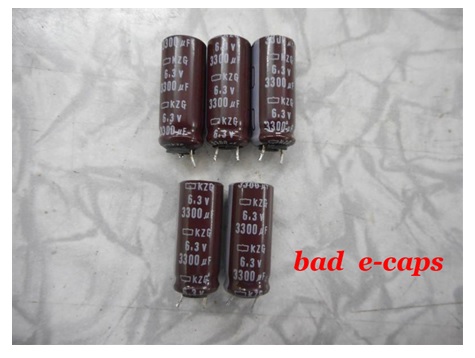

The five bulged e-caps were de-soldered from the circuit: 3300µF/6.3v.

motherboard repair5

They were substituted for similar, and when the Motherboard was turned on, look at the result below:

 motherboard repair6

As you can see the Motherboard was saved from the dump. Mission accomplished.

humbert



























This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.



Likes(179)Dislikes(4)
