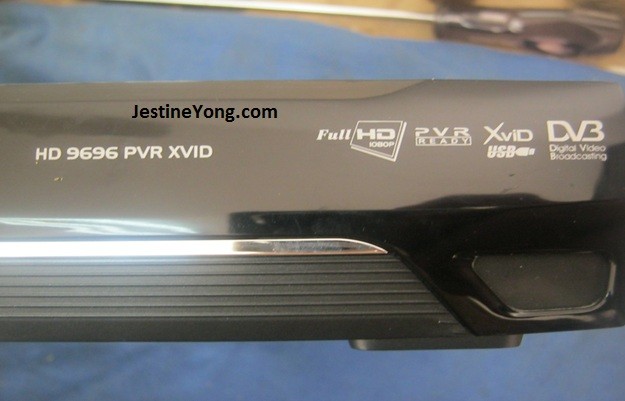

A shorted satellite receiver repaired. Model: HD9696 PVR Xvid

By on January 24, 2014
satellite-receiver-repairs















I have talked about a shorted electrical burner control board yesterday and now,



I am continuing to talk about the satellite receiver that was also shorted out due to an increase in voltage.

satellitereceiverrepair

It is a HD satellite receiver that cost about 300 dollars in my country.

satellitereceiverrepairs

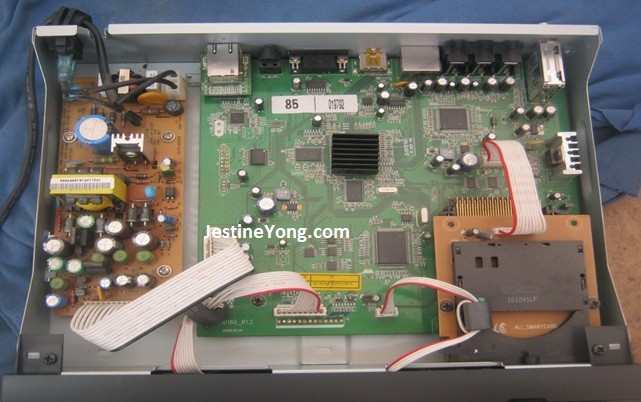

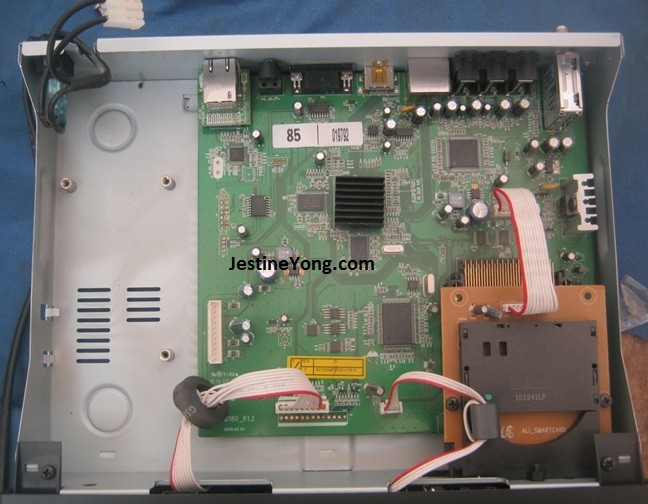

I took the power board off so I can show more in details about the blown that this machine has taken.

satellite receiver repair

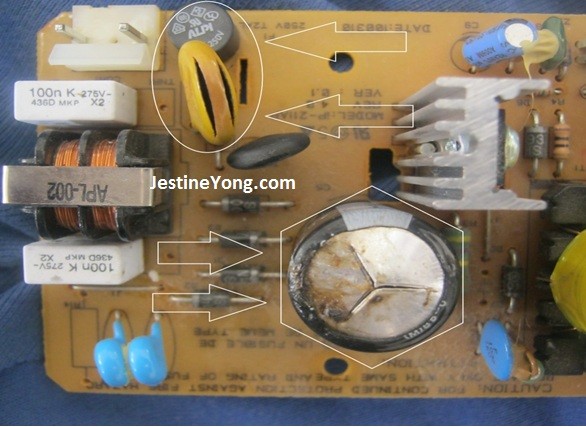

As you can see, the main capacitor, the fuse, and the varistor were all blown.

satellite receiver repairing

This machine has taken a big blow and it survived thanks to the fuse, and the varistor. Many people take the blown varistor out and do not bother to replace with a new one. If that varistor was not in this device, the whole power supply will be damaged and the cost of the repair would be more expensive. It is very important to replace with a new one.

satellite receiver repairings

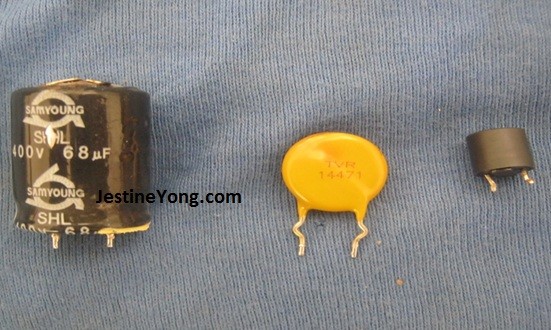

These three parts were replaced with new ones. I checked the whole power supply for more shorted component and found none. To make sure that I did not miss anything, I used the light bulb trick to confirm it. The light bulb came on very bright then it went dim and that was nice to see. I replaced the fuse and powered up the machine and it came on.

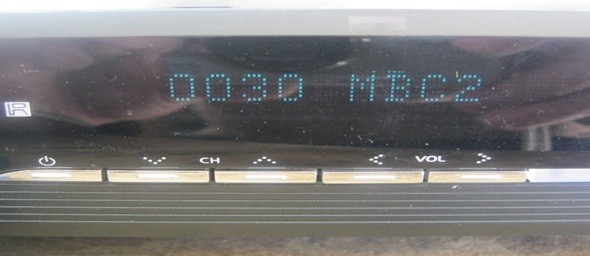

I connected it to a TV set and let it run for more than an hour. It worked perfectly.

satellitereceiverrepairing

satellitereceiverrepairings

It worked fine for a long time and the customer was happy to hear that the second machine is working fine. Mission accomplished.





Now, I moved to the third shorted machine that he brought to me. It was a power board for whirlpool brand fridge that was shorted. So I will see you soon in the next repair article.

waleed







This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
