About Optoisolator IC In Power Section

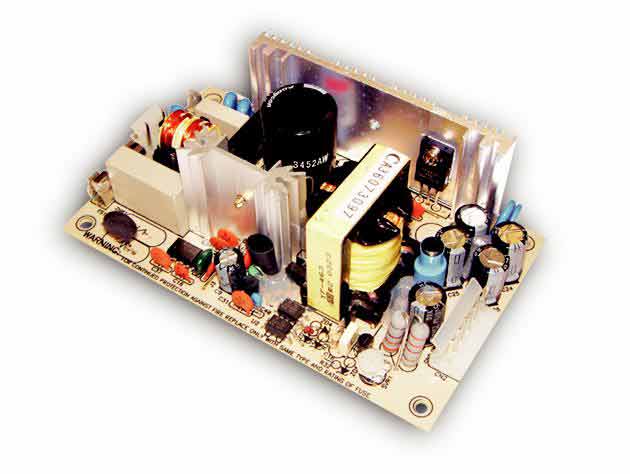

If you are repairing a power supply that do not use optoisolator IC as a feedback that means if all the secondary output voltages read zero volt then i can say that the primary section have problem. It could be a dry joints, ciruit track broken, bad FET and power IC, leaky or shorted diode and transistor, cap that have high ESR or even an open circuit in resistor (start up resistor). However if the power supply use optoisolator IC then there is chances the secondary side components that corresponding to the optoisolator may have problem. If you concentrate only on the primary section, i can say you may not find out the culprit. A shorted optoisolator IC and TL431 IC could cause no power symptom (zero output voltage) and you may thought that it was the primary section fault.

Understanding the power supply design is one of the key to successful power supply repair.  Practice, practice and practice on different type of power supply repair (don’t just repair-you have to understand how it works) will make you better in solving  any type of power supply problems.

Likes(9)Dislikes(1)

18 Comments

1.

   Songre

   December 19, 2010 at 5:40 pm

   Thanks Jestine, always a pleasure to read your comments. I am actually dealing with a problem like the above for weeks and this info open my mind quite a bit...appreciate it. We'll let you know if I solve this one...Cheers! Sharp 21S-FX10L No power, no standby light and on the Filter capacitor I get 69volts dc. no secondary voltages uses optoisolator # PC1213Y82.

   Likes(0)Dislikes(0)

   Reply
2.

   admin

   December 20, 2010 at 6:30 am

   HI Songre,

   The filter cap dc voltage is too low. Try trace backward till the bridge rectifier stage.

   Jestine

   Likes(0)Dislikes(0)

   Reply
3.

   Marulitua Hutabarat

   February 12, 2011 at 5:59 am

   Hi Jestine, glad to see you again.
   Did you ever repair InFocus Projector?
   I found it, no power, no standby light.
   I attempt to repair it, but I can't solve it.
   I just found the voltage at bridge rectifier stage 307 Volts.
   I ask you what is still go wrong? I found no broken fuses or mosfets.
   Thanks in advance.

   Likes(0)Dislikes(0)

   Reply
4.

   admin

   February 12, 2011 at 10:54 pm

   HI Marulitua,

   No i do not repair focus projector but just like any electronic equipment troubleshooting the power supply is the same. Have you replace the power IC after you found no bad components in the power side? Sometimes a shorted component in the secondary side circuit could cause no power symptom.

   Jestine

   Likes(0)Dislikes(0)

   Reply
5.

   Songre Osmenep

   August 25, 2011 at 4:34 am

   Jestine, I did repair this Tv it was the regulator in the power supply once I changed it works perfectly up till this day! Thanks my friend.

   Likes(0)Dislikes(0)

   Reply
6.

   admin

   August 25, 2011 at 6:46 am

   HI Songre,

   Congratulation!

   Jestine

   Likes(0)Dislikes(0)

   Reply
7.

   mike

   July 14, 2012 at 3:52 am

   it was a blessing getting your site and i appreciate the knowledge you impart on people who are interested in electronics especially myself.
   Keep it up Jestine

   Likes(0)Dislikes(0)

   Reply
   •

     Jestine Yong

     July 14, 2012 at 9:41 pm

     Hi Mike,

     You are welcome.

     Jestine

     Likes(0)Dislikes(0)

     Reply
8.

   victor

   August 13, 2012 at 1:15 am

   Hi Jestine,
   I can't thank u enough for the hints I get from ur site. u've really transformed my repair skills. Really bad that i've not bought ur books. I do repairs for fun. Could pls tell me how to test the optoisolator in a SMPS(s). Thanks in advance.
   Victor, Lagos Nigeria

   Likes(0)Dislikes(0)

   Reply
   •

     Jestine Yong

     August 14, 2012 at 2:57 am

     Hi Victor,

     Try this link:

     https://www.jestineyong.com/testing-optoisolator-pc123/

     Jestine

     Likes(1)Dislikes(0)

     Reply
9.

   TANA

   August 16, 2012 at 8:13 am

   Dear Jestine,
   You are surounded by a whole world of electronic.. And your notes and tips will have helped many readers. You are not only gifted but also very heplful and genrous.

   Likes(0)Dislikes(0)

   Reply
   •

     Jestine Yong

     August 16, 2012 at 10:50 pm

     Hi Tana,

     YOU are welcome!

     Jestine

     Likes(0)Dislikes(0)

     Reply
10.

    Elaine

    August 26, 2012 at 5:19 pm

    My coby LCD tv get power through the power cord but not coming on. What is the problem

    Likes(0)Dislikes(0)

    Reply
    •

      Jestine Yong

      August 27, 2012 at 11:03 pm

      Hi Elaine,

      It could be the power supply have problem. You may need to check the internal fuse and start troubleshooting the primary side components. If you do not have experience on electronics repair I suggest that you send to your local electronics repair shop.

      Jestine

      Likes(0)Dislikes(0)

      Reply
11.

    victor

    September 22, 2012 at 2:49 pm

    Thanks 2 u jestine for all ur effort  2 practice & compiled all dis 4 us & thanks 2 that kenya man 4 his breakthrough on opening of  adapter enclosures ; it works like magic

    Likes(0)Dislikes(0)

    Reply
    •

      Jestine Yong

      September 22, 2012 at 8:45 pm

      Hi Victor,
      You are welcome!

      Jestine

      Likes(0)Dislikes(1)

      Reply
12.

    alberto catindig

    June 5, 2015 at 6:11 pm

    Hi sir, i have a sony audio component, have -v but no +v secondary output . The display also tells protect e03. I need your advice and idea. Thanks

    Likes(0)Dislikes(0)

    Reply
    •

      Jestine Yong

      June 8, 2015 at 8:58 pm

      HI Alberto,

      Try trace the +v line and see if there is any bad component. It can be bad filter cap, bad diode and etc.

      Jestine

      Likes(1)Dislikes(0)

      Reply
