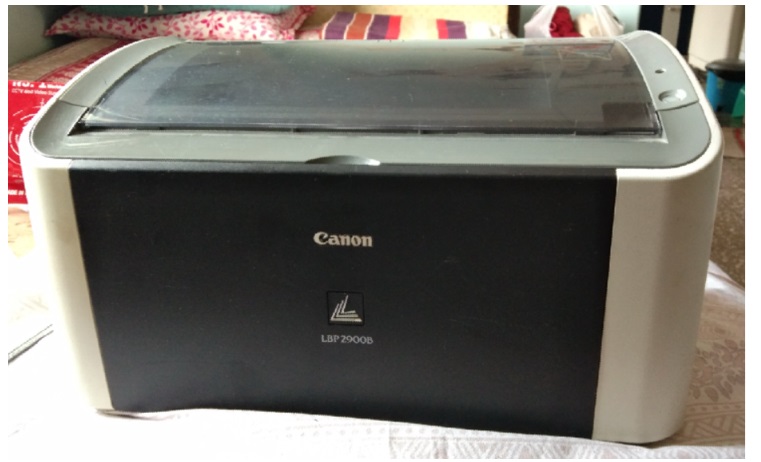

CANON LBP2900 Laser Printer Unit Error
Revisited this printer for Unit error. Previous repair I replaced Broken Fuser heating element.
https://jestineyong.com/canon-lbp2900-laser-printer-unit-error/

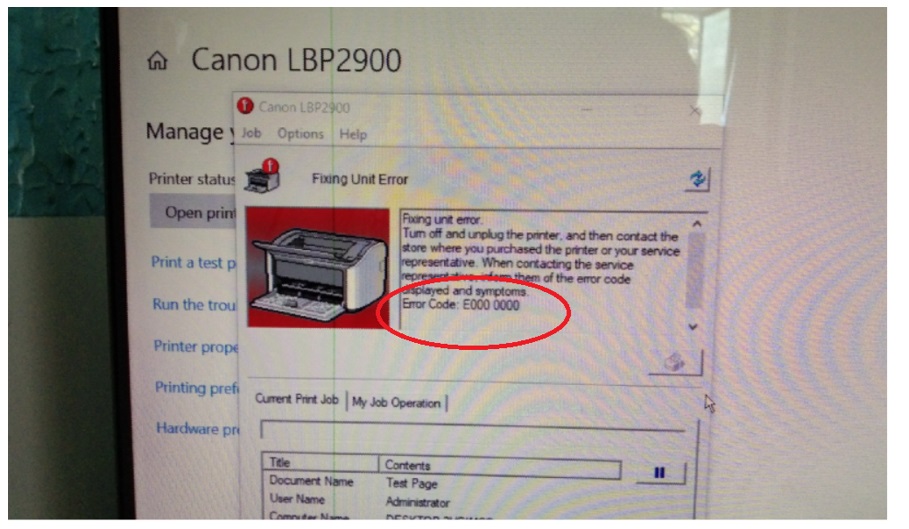

Problem Symptom: While Printing it gives error on computer screen, Error code is E000 0000 & paper stuck form end side in fuser unit.
First removed the toner cartridge to see the condition & why Page is stuck.

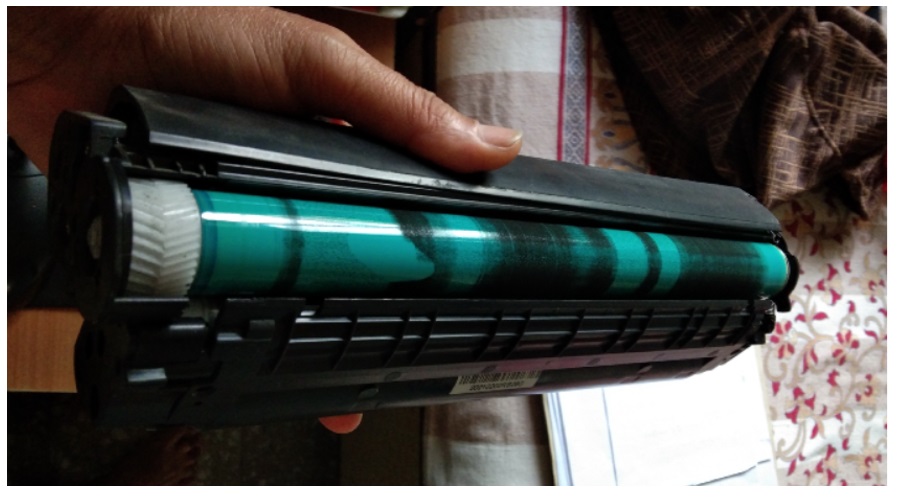

Found cartridge is in very bad condition looks toner powder is leak, but this is not related to the error symptom.

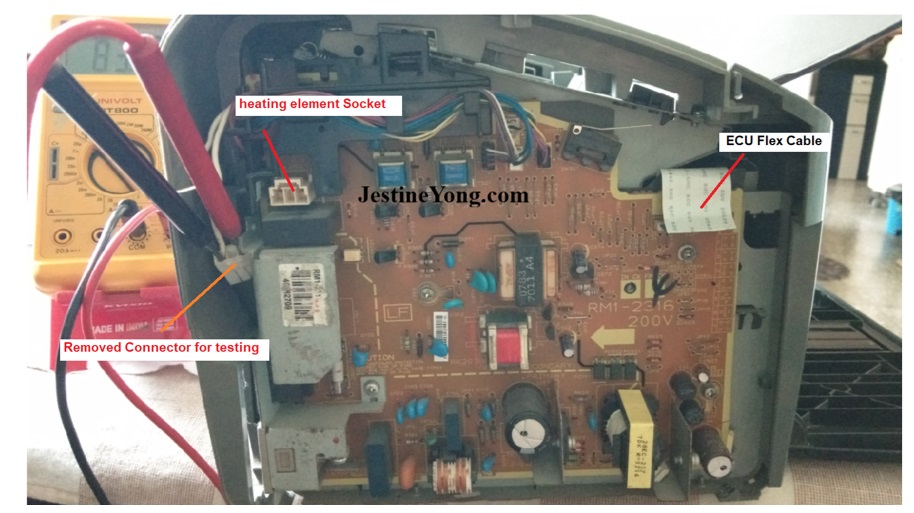

Therefore, the side panel of the printer was opened to check the circuit side and confirm whether the fuser heating element was working correctly. Removed Heating element connector from the cable & measured the resistance of the heating coil.

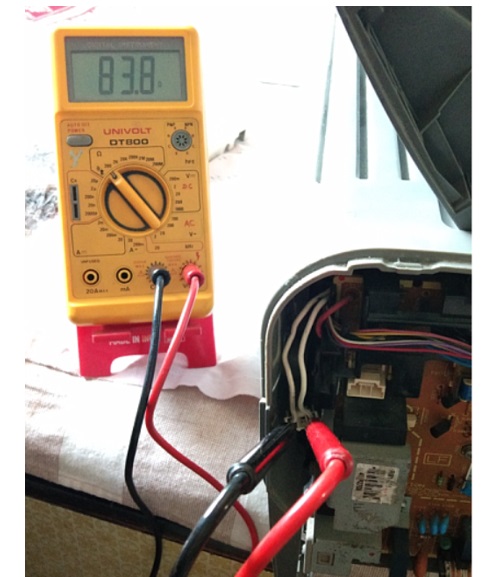

On testing I got 83Ω indicates heating element is OK.
Now time to check ECU (Engine controller Unit) Flex strip cable.

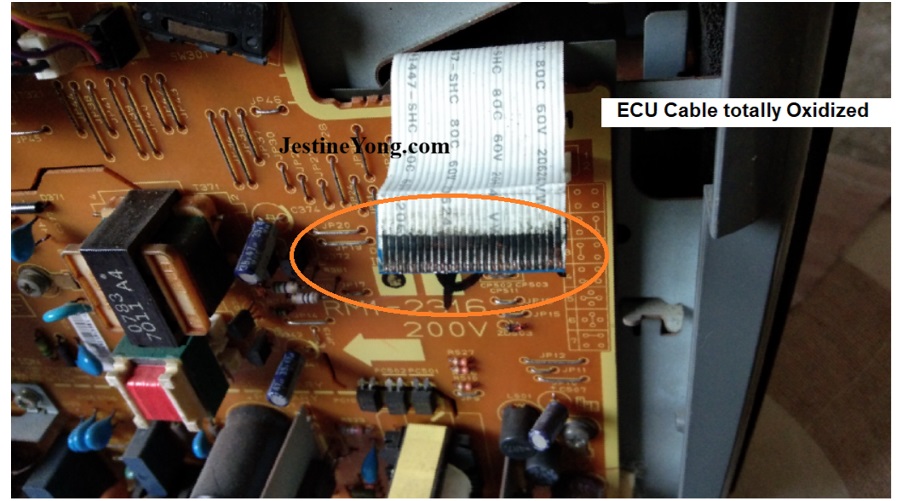

Found cable contacts are badly oxidized.

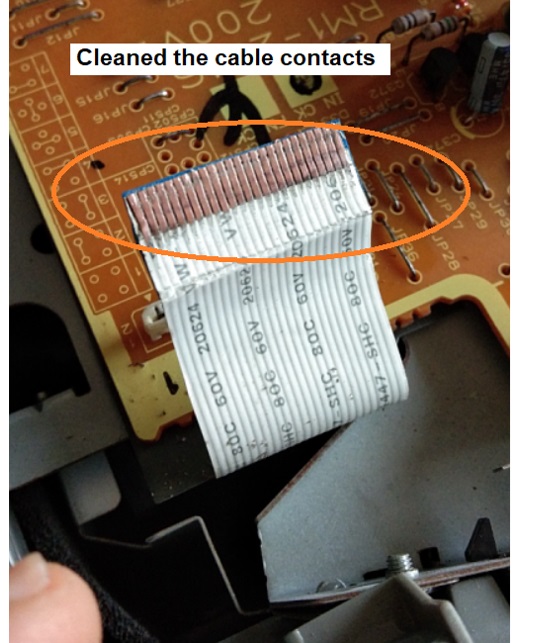

Cleaned the cable using eraser & Blade. be very careful while cleaning ECU Flex cable because on other side it is directly soldered on ECU circuit & it is very difficult task without the microscope.

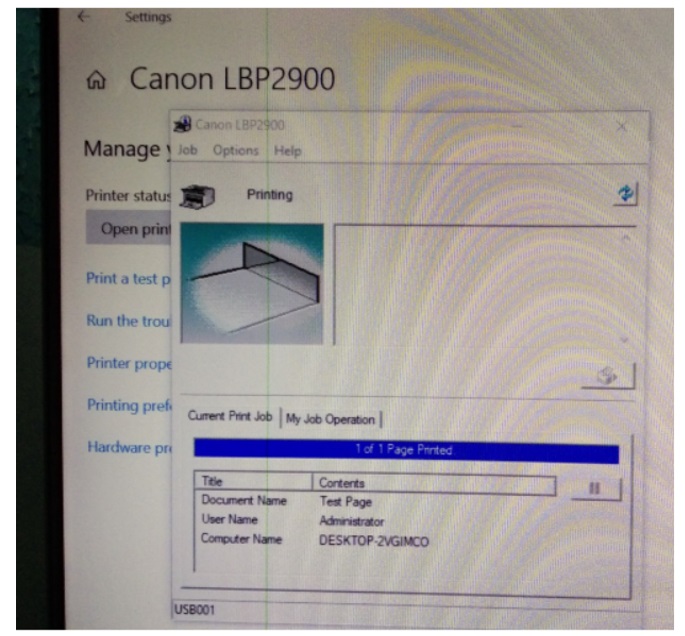

After connecting back to its place, connected printer to power & hit the Test page from the computer.
& found print out comes very smoothly without stuck-up or any error on the computer.
As print copy is not clear & having Vertical Bars this is problem of the toner cartridge, When I spoke to the customer about the toner cartridge, he told me that he knew the toner cartridge was faulty, so he thought he would get the printer repaired first and then buy a new toner cartridge later. & I told him printer is repaired he can collect it.
This single error can have several causes like Bad SMPS, Fuser Unit, ECU unit or Bad Logic board & related cables.
This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.
