CREATIVE SBS 240 – Computer 2.0 Stereo Speakers Repair

By on February 7, 2014
computerspeakersystemrepair3















Problem: Sound does not come out from one speaker

speaker



One of my customers sent to me his computer speakers with the complaint of no sound in one side. I tested the computer speaker and indeed the left speaker does not produce any sound.

The troubleshooting begins by comparing (sight) the components between the right and the left channel. All of the components seem to be in good condition. This led me to check the components in the left speaker circuitry. By the way both speakers rated at 4 Ohms checked to be good also.

speakerrepair

 computerspeakersystemrepair1

Note: The above schematic diagram does not reflect the true circuitry found in the computer speakers. It is just for your reference purpose.

When I placed my meter probe between point A and ground (above schematic) the meter buzzer sound indicated short circuit. It can be shorted components or the IC. I removed all the corresponding components and found that the short circuit was still present. I then removed pin 2 of the IC and the short circuit gone and the buzzer was silent. When I soldered back pin 2 and powered On the IC, it was quite hot. I should have test the IC first with my finger. A replacement of new IC solved the no sound problem in the left speaker.

computer speaker system repairsTip 1- For a working unit, when you touch Vin 1 or Vin 2 with your bare finger you will hear humming sound from the speakers. If you did not hear any sound means that particular channel have problem.

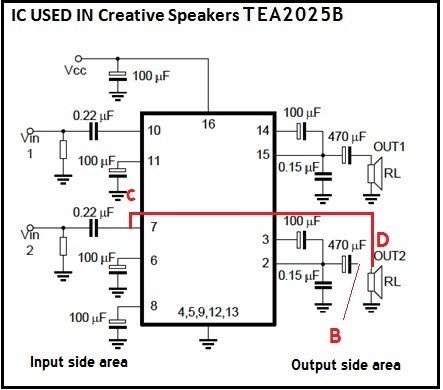

Tip 2- Refer to the below schematic. In order to know if the input side or the output side have problem simply disconnect the speaker cable at point B. Then joint point C and D. If you could hear some sound means the input side is good. If you did not hear any sound then the output side is the cause of the problem.

computerspeakersystemrepair2

This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.



Likes(16)Dislikes(0)

7 Comments

  1. Rajesh

    November 28, 2015 at 4:08 pm

    Sir,
    I have a creative SBS 370 Speaker which i use with my computer. The Adaptor is an AC power Adaptor. The rating is 11.5V 1600mA 18.4V .I opened the cover and found that it is having only a transformer inside(so, i suppose it is a step down transformer). The circuitry for converting it to DC might be inside the Woofer Assembly as its input jack is showing 11.5V AC . I searched the loacl market and found that none are having transformer with the same ratings. I would like to know if i an put a 12V 2A Transformer in place of the 11.5V 1600mA because almost all shops have that transformer. Also, none of them is showing the VA rating on them.What would be the VA Rating of such a transformer. Please help me out

    Likes(0)Dislikes(0)
  2. Utkarsh Verma

    February 11, 2017 at 11:06 pm

    Hello, I am facing a strange problem with this circuit. The whole circuit wired up this way results in one working speaker while the speaker connected to pin 2 and 3 doesn't work. I am powering this circuit 12v just so you know. When I was tinkering with the circuit, I found that removing the 470uF capacitor connected to non working speaker and shorting the wire, the speaker starts receiving sound but now the output is way too noisy. I tried replacing the capacitor but nothing happened. Do you have any idea?

    Likes(0)Dislikes(0)
  3. Ashutosh

    May 19, 2018 at 1:21 pm

    Hey how to open the bigger subwoofer speaker

    Likes(0)Dislikes(0)
  4. harmeet singh

    May 7, 2019 at 8:29 pm

    i have the same set of speakers but my speakers were repair not the circuit components.so connected big samsung ps630e it is written that it is 6ohms speaker and max output is 130 watts.so i have taken the left and right speaker out wire of the creative speaker and connected those big speaker. but i have doubt that can i do it.will it cause any problem to my circuit components?

    Likes(1)Dislikes(0)
  5. jamam

    July 14, 2019 at 1:59 am

    i have creative sbs a 250 2.1 speaker, now my (right speaker with volume control with on/off switch) speakers not working anymore no sound nothing .i dont know how to open speaker because it is sealed no screw please can you help me....thanks

    Likes(3)Dislikes(0)
  6. Chris

    May 20, 2020 at 8:10 am

    Hello, I'm trying to make my old pc speakers work (first step) to build a diy guitar amp (second step).
    I'm stuck at the start because I couldn't understand how much and where to apply power and what is the couple wires for the second speaker. Can I ask you to give me an email where I can send you some pics if you can gently help me? Would be lovely to have any kind of help. Thank you.
    Chris

    Likes(0)Dislikes(0)
    • sameh

      April 19, 2022 at 2:32 pm

      Hello.. if u have a220 creative.. if u need to know what the wiring connection. .....
      ....
      Form the left point
      Point 1 red wire
      Point2 no connection
      Point3 Brown vcc
      Point8 blue
      Point4 grey
      Point5 wight

      Likes(0)Dislikes(0)
