GEDEME Fridge protection repaired

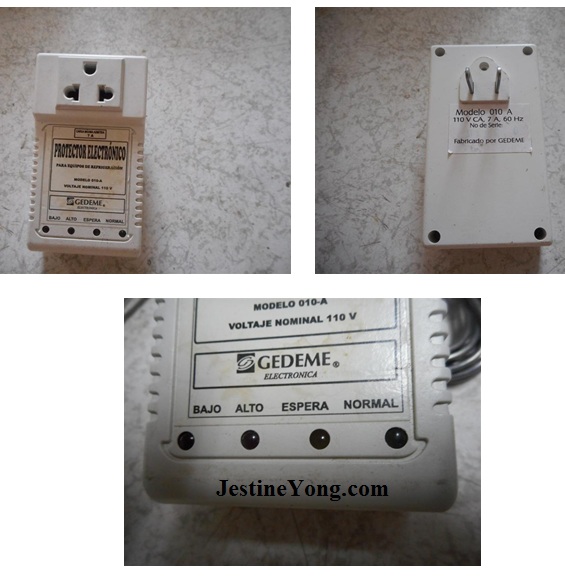

This Fridge Protector brand GEDEME (Cuba made) Model 010A was brought to me by a fellow worker with the complaint of always in Low (Bajo) voltage, even if the voltage in the AC line was ok.

GEDEME Fridge Protection Repaired

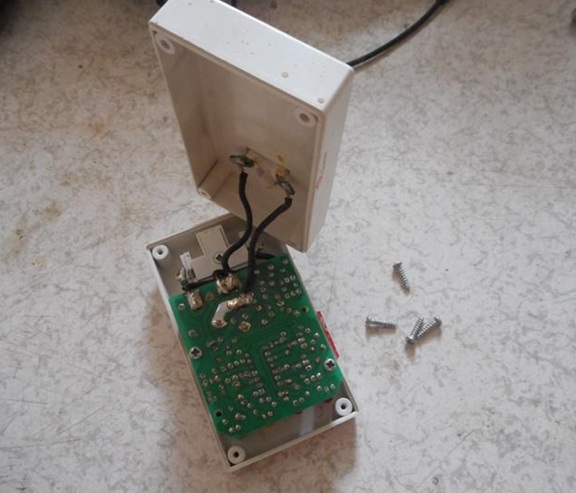

First thing done was to dismantle the box by unscrewing four screws.

open ac protector

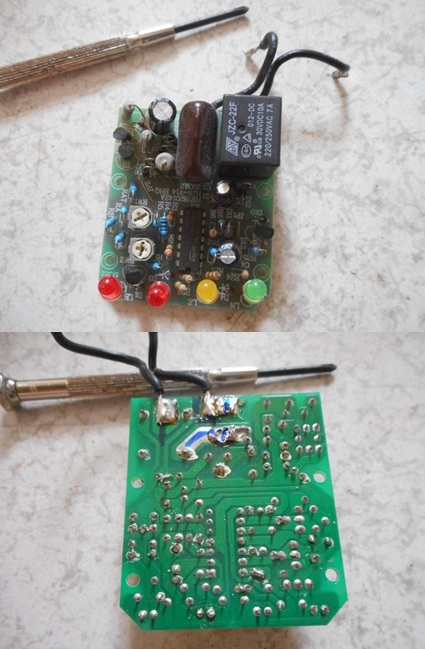

The PCB was de-soldered from the In and Out voltage cables and unscrewed from the plastic box, only two screws this time.

ac protector repair

First thing done was to check on the capacitor in the AC-IN.

capacitor tester

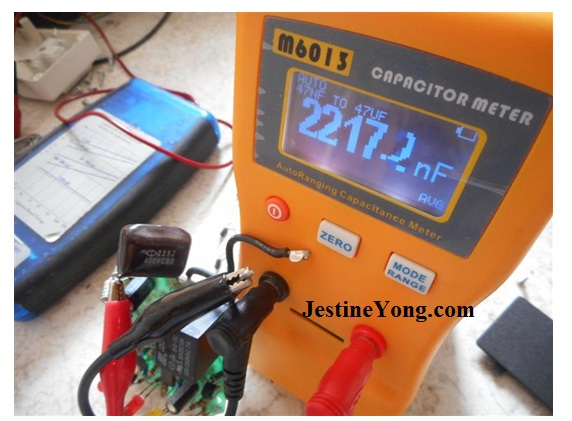

As you can see in the photo above, its value is 225J (similar to 2200nF) and as you can see the result given by my capacitor meter was ok.

Secondly the transistors (BC337 and BC 327) and the rectifiers diodes were checked with the DMM (Digital Multi Meter), the result?

  • The transistor BC337 had leakage between Emitter and Collector junctions.
  • Three of the four diodes (1N4007) had leakage too.

I decided to replace both transistors for similar ones. The four diodes were replaced too.

Note: If I only replace three diodes, I’m afraid the remaining one will breakdown soon. So replacing all the diodes will avoid call back.

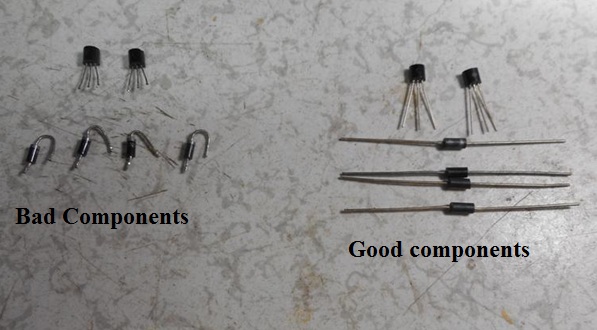

bad diodes

When the new components were soldered into the circuit, it was tested in the AC-Mains and look at the result.

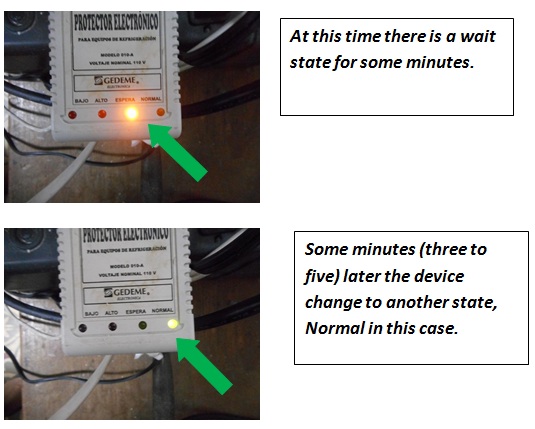

ac protector repaired

Now it’s time to check on the AC output voltage (V out) to make sure the Relay is working fine too.

ac voltage testing

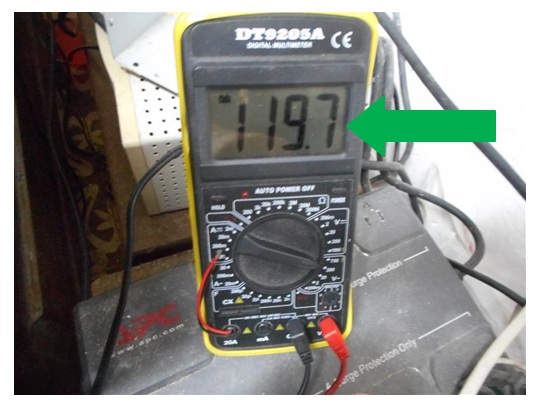

As you can see in the above photo, 119.7 vac output was measured. Mission accomplished.
