Matsutec Active Speaker System Repaired

By on July 28, 2015
speaker system repair















speaker repair

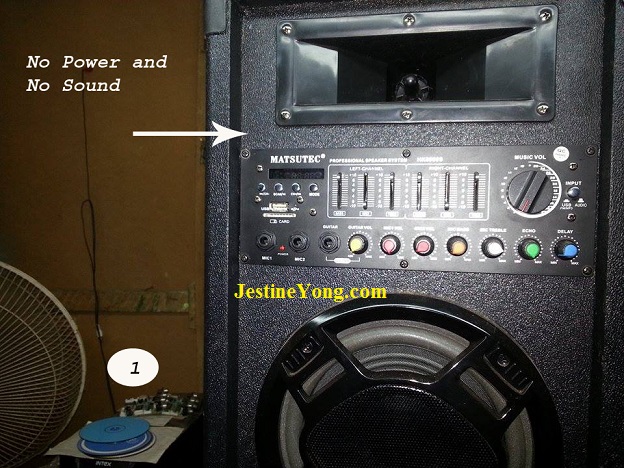

A customer brought this Matsutec Active Speaker System for repair with the complaint of no power/no sound.

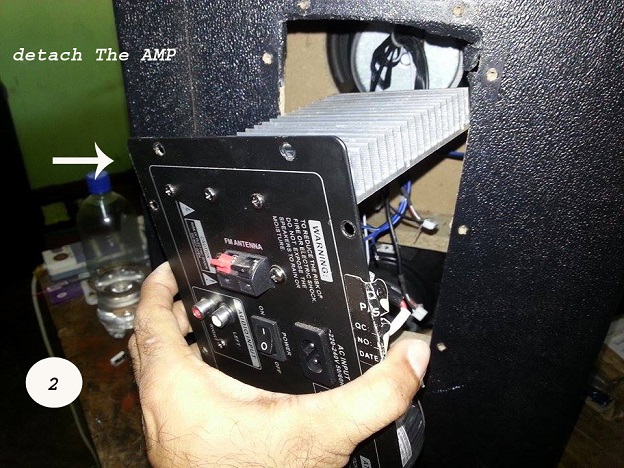

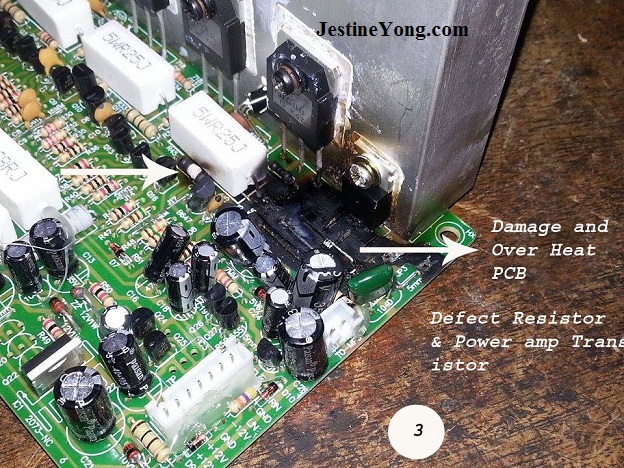

Once the cover was removed I could clearly see the burnt area on the circuit board.

AMP 2

repairing amp speaker

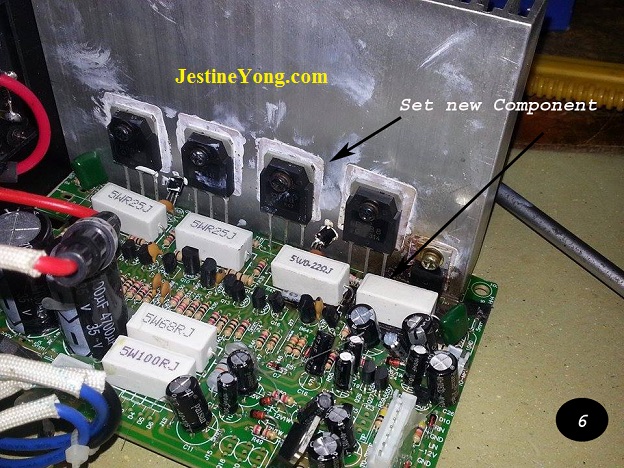

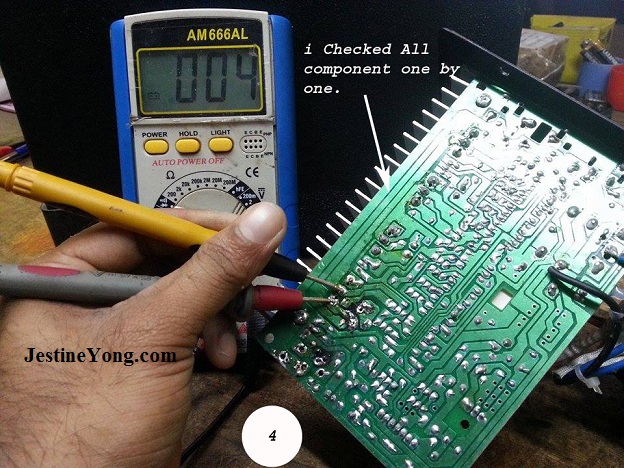

I had to remove the bad parts and test all the corresponding parts and had to clean the area with chemical.

AMP 4

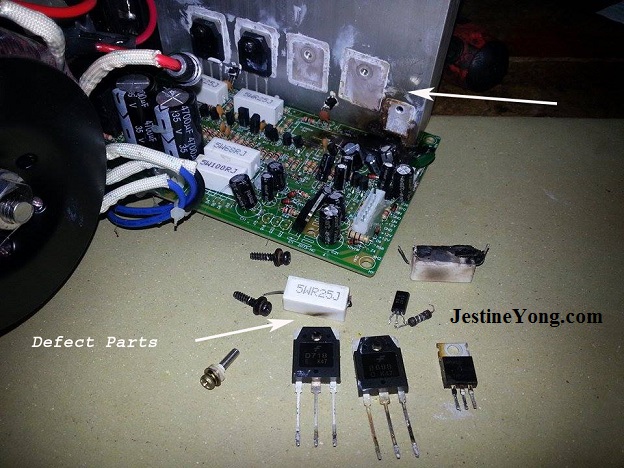

There are couple of transistors and resistors that were burnt and shorted. If you wish to learn how to test electronic components, you can check out this website

speaker system repair

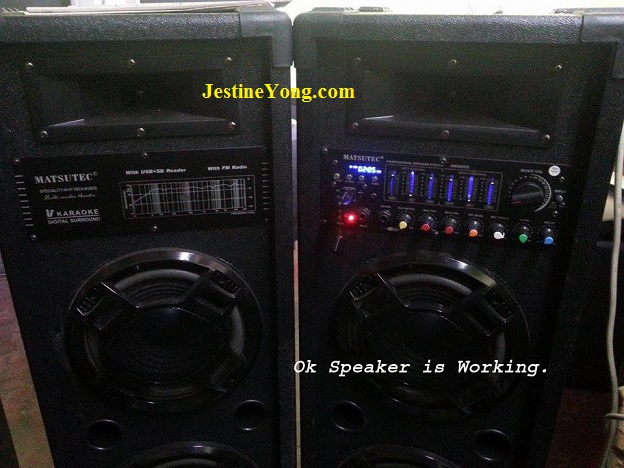

Once the replacement are fitted in and powered it On, this speaker system came back to life again.

Repairing speaker amp

amp speaker repair

This article was prepared for you by Suranga Bandara who owns an Electronics shop in Anuradapura, Sri Lanka.
