Restored SYSKA LED Tube Light Model SSK-SQ2001

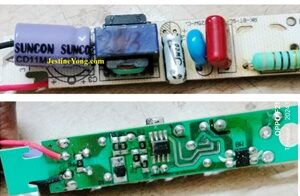

This was one among the nine items brought by a recently acquainted satisfied customer. The complaint was that the AC input wires were worn out and shorting with each other and the light was believed to be working ok. I opened the side locks and pulled the LED Driver unit out to see the condition of the board.
There were dry solders and the electrolytic capacitors were found weak on testing. So, I retouched the board with fresh solder while replacing the two electrolytic capacitors; 100uF/100V and 1uF/63V.
I replaced the worn out AC-in wires with longer and sturdy wires and put a heat shrink sleeve as protection. Then the board looked safe enough to apply power and check. After just checking it was working, I re-inserted the LED driver board to the centre and pulled out the AC-in wires and put the side locks in place.
Then applied power to see that the light was really good and the trouble taken was worth it.
Mission accomplished with satisfaction getting added to the collection, which also helped stronger bonding with the customer.
This article was prepared for you by Parasuraman Subramanian from India. He is 74 years old and has more than 30 years’ experience in handling antique equipment like Valve Radio, Amps, Reel Tape Recorders and currently studying latest tech-classes conducted by Kerala State Electronics Technicians’ Association. He has done graduation in BBA degree, private diploma in Radio Engineering and retired as MD of a USA company. Presently working as Consultant to Hospital and other institutions.
Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.
P.S-If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!
You may check on his previous article on 120V AC Input Transformer Fumed In ONKYO CD Player Model DX-C330
