Rubber Band Tied Philips Radio Model RL118/00 Saved From Its Ordeals

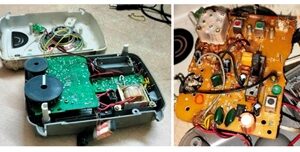

This belonged to the lady who helps us clean the house and compound and provides other aids to my wife. She brought this radio tied up with rubber bands and in a bad shape, with the complaint that it was intermittent. I removed the rubber bands and released the radio from the bondage and opened it. There were no screws as all the lugs had broken.
The Ferrite Road antenna was just hanging on its connections! But the radio was still working!!!!!
My first duty was fixing a new TRA for which I increased the hole on the rear cover and inserted it in place and fixed it with a screw and soldered the antenna wire to a washer.
Fixed the Ferrite antenna in place with cable ties and applied Fevibond (a type of rubberized gum) and retouched the boards with fresh solder and cleaned it thoroughly.
Cleaned and lubricated the band switch, internal/external power supply switch and volume control. Replaced the mains cord as it was having intermittent contact problems. The Radio was working so well that I could not believe myself how it survived in spite of all the damages suffered. Then fixed one lug with superglue and inserted pins with soldering iron for standing properly to hold a screw.
Then fixed that screw and used strong paper tapes to hold the covers together without any vibration when the speaker works. I was happy to have been able to restore the radio to an acceptable standard removing all these rubber band sacred threads! (LOL) Double satisfaction found its way to the collection bag!
This article was prepared for you by Parasuraman Subramanian from India. He is 74 years old and has more than 30 years’ experience in handling antique equipment like Valve Radio, Amps, Reel Tape Recorders and currently studying latest tech-classes conducted by Kerala State Electronics Technicians’ Association. He has done graduation in BBA degree, private diploma in Radio Engineering and retired as MD of a USA company. Presently working as Consultant to Hospital and other institutions.
Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.
P.S-If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!
You may check on his previous article on Dry Solder Caused Lead Of EMI Filter Coil Getting Charred In LG DVD Player Model DV692
