Set Top Box Repaired

By on June 11, 2015
set top box repairing

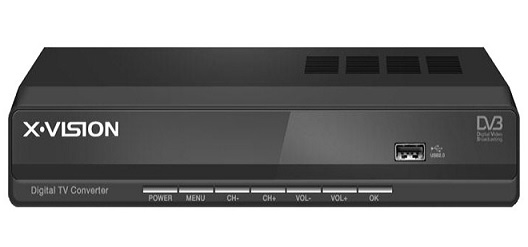

The complaint of this X.Vision set top box was it can’t boot thus no video and audio from the output port: A/V and HDMI.

set top box repair

I opened the cover and checked on the important voltage test points.

set top box repairs

The output of power supply were good  : 5V , 12 V. So the focus now was on the mainboard. The first voltage test point that I checked was the Flash IC (W25Q32(SO8)) pin 7,8 and it reads only 2.01 volt. It should be 3.3 volt.

Below are the measurements of the output voltages from the SMD voltage regulator ICs: U1, U3 and U4.

set top box repairings

Output of U3 is 5v for mainboard. Output of U4 is 1.8 v for CPU but now it was zero volts. This means the IC have problem and need to replace. I wanted to replace the U4 IC (AB3F1) but I can’t find it in electronic stores so I used a substitute part number SY8009A/SY8009B. You can check out the IC data below:

set top boxrepair

Therefore, I replaced U4 with SY8009B/2A/6PIN , and VCC output of W25Q32(SO8) became: 3.3 v and the set top box came back to life again.

m.reza















This article was contributed by M.Reza from Iran.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!



Likes(109)Dislikes(9)

22 Comments

  1. farhad rigi

    June 11, 2015 at 12:32 pm

    m.reza tanks.

    Likes(5)Dislikes(0)
  2. Albert

    June 11, 2015 at 1:30 pm

    Thank you M.Reza. Short but also very interesting repair. These power ic's are always good to know for equivalent replacements. Especially when you do not have Service manual available like in comparable devices such as Dreambox Sat recievers,etc.
    Albert.

    Likes(9)Dislikes(0)
  3. Luciano

    June 11, 2015 at 2:13 pm

    Hi M. Reza,
    this is a very educative and informative repair article. Keep it up!
    Luciano

    Likes(7)Dislikes(0)
  4. Humberto

    June 11, 2015 at 8:07 pm

    Good repair Mr. Reza, congratulations and keep up.

    Likes(7)Dislikes(1)
  5. Waleed Rishmawi

    June 12, 2015 at 12:39 am

    thanks for the repair info. keep up the good work

    Likes(5)Dislikes(1)
  6. Andre Gopee

    June 12, 2015 at 2:02 am

    Thanks for the article Mr. Reza. Nice job and well done.

    Likes(4)Dislikes(0)
  7. Debirt Maynard

    June 12, 2015 at 8:41 am

    Your article addresses an area in which I have a keen interest. A lot of the clone STBs out of China develop the same problem sooner or later. Good work.

    Likes(5)Dislikes(0)
  8. Yogesh Panchal

    June 12, 2015 at 2:55 pm

    Good attempt thanks for sharing.

    Likes(5)Dislikes(0)
  9. reza

    June 13, 2015 at 1:06 pm

    Hello to all
    I am sorry the U1 is defective.
    I replace U1 and the set top box came back to life again.
    thank u very much.

    Likes(4)Dislikes(0)
  10. parminder singh

    June 13, 2015 at 10:42 pm

    ya this is good knowledgeable article
    i also repaired my airtel dth setup box their was problem of detction of
    viewing card.

    Likes(1)Dislikes(0)
  11. Anand Palkar

    June 15, 2015 at 12:38 am

    Excellent article and good logic how did you get the substitute that's also important moreover the voltage that has been pulled to zero could be by two reasons one is as you have pointed out that U1 is defective and the other reason is shorted component in the output. Its sometimes a gamble and you are not lucky always thats why i think a leak detector becomes useful.
    Thanks for sharing

    Likes(3)Dislikes(0)
