20 inch TRC TV repaired

By on May 6, 2015
eltectvrepairing

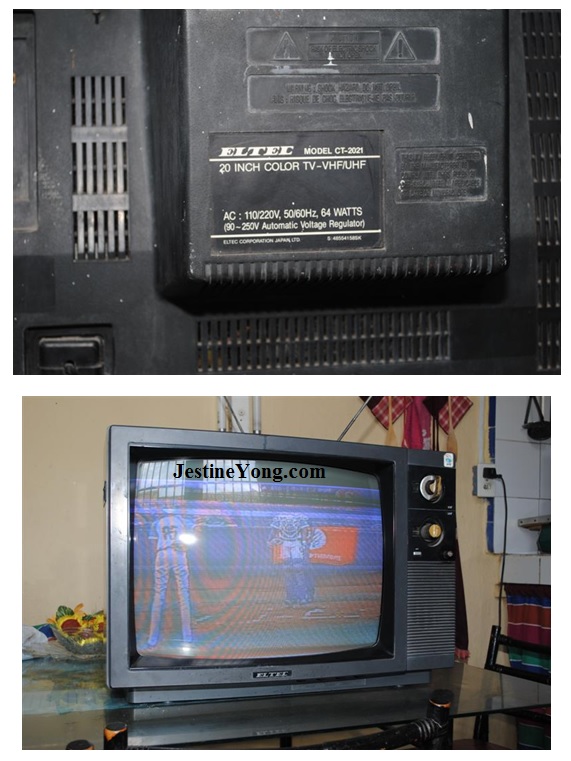

I went to my friend’s house for a visit and he asked me to take a look at his old TV which was not working properly. It was an old 20 inches TRC TV-VHF/UHF brand ELTEC Model CT-2021, Japan made TV.



He told me this TV set already worked for more than 20 years and this was the first time it had problem. My first thought was, if the ELTEC engineer knew about this they would be glad to have designed such a good TV.

eltec tv repair

As you can see from the above pictures it seems that there was a visual malfunction. The device was disarmed, an easy job; only some screws.

eltec tv repairs

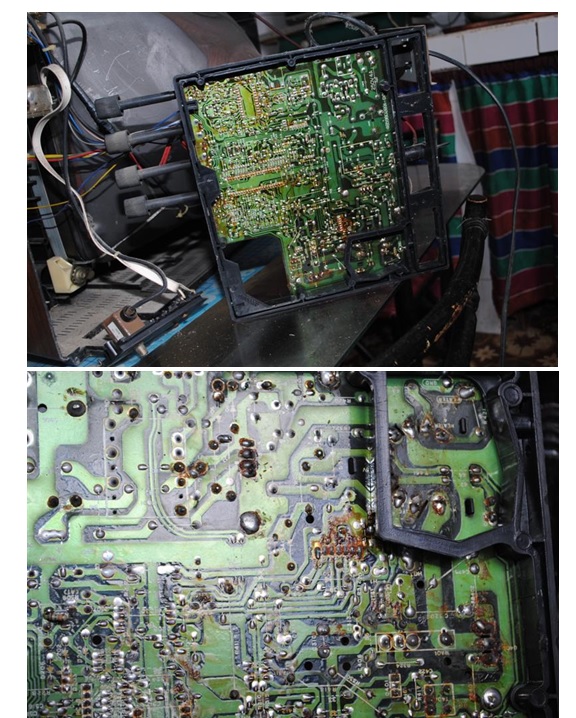

As you can see in the photos above there was a great amount of dust inside the equipment. The PCB was fully extracted for servicing.

eltectvrepair

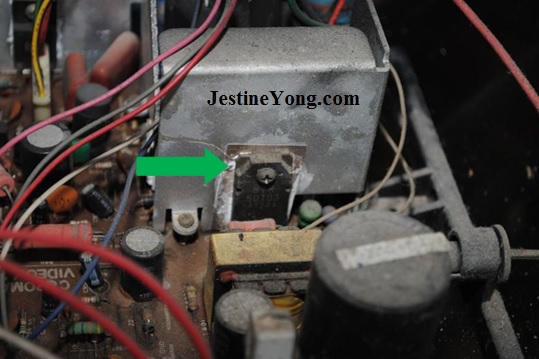

The worst part I saw in the PCB was the circuitry around the STR50103 IC (Voltage Regulator) because there were many cold solder joints.

eltectvrepairs

The IC was re-soldered together with all the corresponding components. The device was connected back into the AC-mains and when it was turned on, the picture was in perfect condition. The device was cleaned too with air pressure.

eltec tv repairing

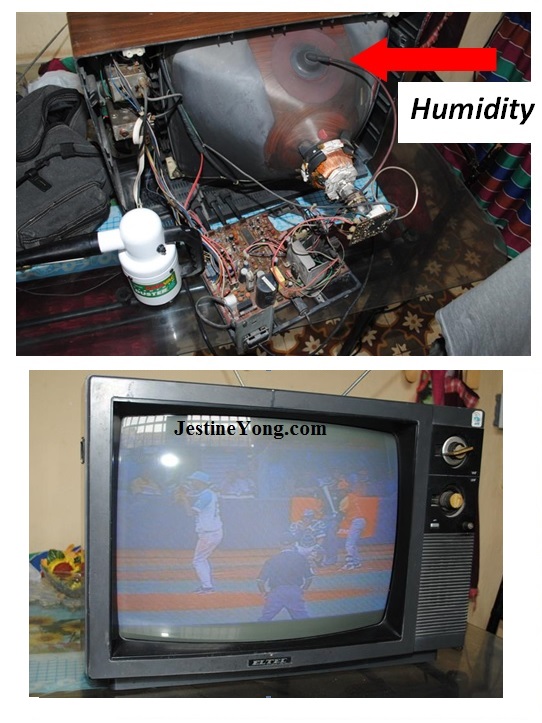

I gave him an advice to take out the rear plastic cover and put the TV set in the garden of his house to take a sun bath for some hours (it’s a traditional method in my country) Why? Because a lot of humidity was seen in the TRC and in the PCB too. Some people use Hair Dryer, but I prefer the sun bath: it’s a natural source of heat. Another old model saved from the dump.

humbertophoto

This article was prepared for you by Humberto Rodriguez, one of our ‘Master Authors’ from Cuba.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S-  If you enjoyed reading this, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!



Likes(128)Dislikes(1)

11 Comments

  1. gcharal

    May 6, 2015 at 10:28 pm

    Good repair!!!

    Can you tell us what was the cause of humidity?
    I observed humidity in a tv-set that i repaired last year
    but i can not explain what was the cause.
    Keep on the good job.
    Save the planet!
    George from Greece

    Likes(2)Dislikes(0)
  2. Albert

    May 6, 2015 at 11:31 pm

    Hi Humberto,
    Repair is one thing, but cleaning a twenty year old dusty tv is something that is not a nice job. Sadly we can't leave the cleaning to the customer. I also use a compressor (13 euro for 1 dm3/liter for the special compressor oil, because not oil free use) if I occasionally need to clean stuff, like personal computers and so on, but I always wait for a good sunny day to do this outside (and they are rather short in Holland. We can have all types of season in one day).
    I've got some old tv's here too, 6 or 7, and some crt-monitors but nobody wants them. Not even for free! And the main thing is that here in the Netherlands you can't recieve any programs on them anymore with the beginning of DVB-T transmission (Digital tv).
    I take it that in Cuba the tv signals are unchanged as they were decades earlier? The only way to watch tv in our country on old tv's is to transmit it yourself at home with your own analog transmitter.
    By reverse engineering I've made a schematic of an UHF color tv transmitter that I already build several times. If you want it I can send the DIY information to you so you can build one yourself?

    With a Yagi antenna you can transmit over longer distances, but with a normal wire antenne about 50 to 100 meters.

    The hard part is making the little audio transformer coil. The 4 transistors are not expensive and shouldn't be hard to get?
    And 12 Volt, and a videosignal from DVD or VCR is all you need.

    Greetings,
    Albert.

    Likes(2)Dislikes(0)
    • Rey

      May 8, 2015 at 2:13 am

      Albert, goede middag. Do you mind to send me a copy of the schematics with parts list? It looks like an interesting project to build. I would appreciate it.

      Dank u wel
      Thank you,
      Rey

      Likes(1)Dislikes(0)
  3. Robert Calk

    May 7, 2015 at 1:24 am

    Good job Humberto.

    Likes(0)Dislikes(0)
  4. Bernie Scott

    May 7, 2015 at 1:45 am

    Great job......I have an old RCA floor model color tv here that was made in the 1980's aside from having a weak picture tube it works great....that cannot be said about modern day electronics......and it is very sad indeed as most shops will just write the stuff off and throw it out.....it is too bad there is no market for used electronic components....keep up the great work.....
    Cheers,
    Bernie

    Likes(1)Dislikes(0)
  5. Andre Gopee

    May 7, 2015 at 7:28 am

    Great Job Humberto... A perfectly Good Set would of been wasted if you did not take a look at it. Keep up the good work.

    Likes(1)Dislikes(0)
  6. reza

    May 7, 2015 at 9:19 pm

    hi
    thank u for share this article

    Likes(1)Dislikes(0)
  7. Albert Hoekman

    May 8, 2015 at 5:13 am

    Nice job Humberto

    Likes(0)Dislikes(0)
  8. aziz

    May 8, 2015 at 7:21 pm

    hi mr. jestine yong your website is very good. thank you i am from Afghanistan

    Likes(2)Dislikes(0)
    • Jestine Yong

      May 8, 2015 at 8:32 pm

      Hi Aziz,

      You are welcome.

      Jestine

      Likes(0)Dislikes(0)
  9. Florin

    May 10, 2015 at 6:58 pm

    You can't get so much humidity in a TV unless a flower vase/pot sit ON the TV and it was bumped over spilling water inside. I saw that many times because women think a TV is not looking pretty enough...

    Likes(0)Dislikes(0)
