About LCD Backlight

By on January 14, 2011

 backlight

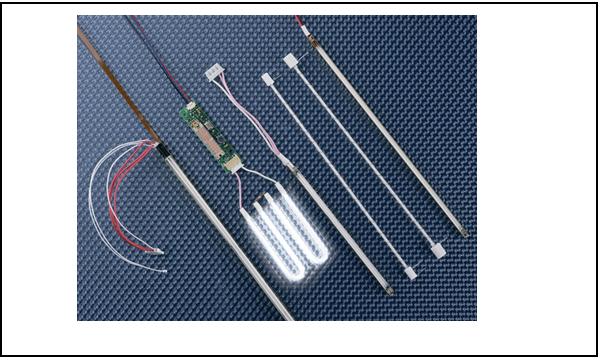

If you want to convert the ccfl backlight using LEDs, you may click on the photo for more information.

Likes(2)Dislikes(1)

10 Comments

  1. Bernard

    January 14, 2011 at 11:30 pm

    Hi Jestine,

    A very interesting information, HOPING to try it out. Wishing the members will try it and give us some feedback.

    Likes(0)Dislikes(0)
  2. admin

    January 15, 2011 at 8:56 am

    Hi Bernard,
    That's how a basic LED backlight work.

    Jestine

    Likes(0)Dislikes(0)
  3. mg zinaung

    February 14, 2011 at 11:53 am

    Hi Jestin,

    I am electronic mechanic teacher from Myanmar but I don't know LCD TV function & block diagram . You help me to know it. I am interesting
    your web.

    Likes(0)Dislikes(0)
  4. admin

    February 14, 2011 at 11:16 pm

    HI Mg,

    Try this link:

    https://www.jestineyong.com/?p=2707

    jestine

    Likes(0)Dislikes(0)
  5. sunil

    May 10, 2012 at 4:12 am

    why dont you try with some flat smd led bulbs (for no drilling) which comes in various electronic gadgets you will get them in your country too! i had done them with my laptop some 2 yrs back, and the idea work fine with good luminence and visibality just get a saperate power supply for the led's panel you make and  you are with led back light for your lcd panel.

    Likes(0)Dislikes(0)
    • Jestine Yong

      May 11, 2012 at 12:52 am

      Hi Sunil,
      It works because I have seen someone have done it in Youtube.

      Jestine

      Likes(0)Dislikes(0)
  6. Wimpie

    November 2, 2012 at 7:47 pm

    Hi Jestine
    My monitor has feedback circuit and if i would use leds how will i defeat the feedback circuit without the display shutting down?
    Wimpie

    Likes(0)Dislikes(0)
    • Jestine Yong

      November 2, 2012 at 9:22 pm

      Hi Wimpie,

      Do you mean you remove the backlight and replace it with LEDs?

      Jestine

      Likes(0)Dislikes(0)
  7. Wimpie

    November 3, 2012 at 6:23 am

    Hi Jestine
    Yes cause backlight is bad and reddish and cause the lcd to shutdown in one second
    Thanks Wimpie

    Likes(0)Dislikes(0)
    • Jestine Yong

      November 3, 2012 at 9:44 am

      HI Wimpie,

      I have not done such modification before.If you are using LED then you do not need inverter board. You need a LED driver board.

      Jestine

      Likes(0)Dislikes(0)
