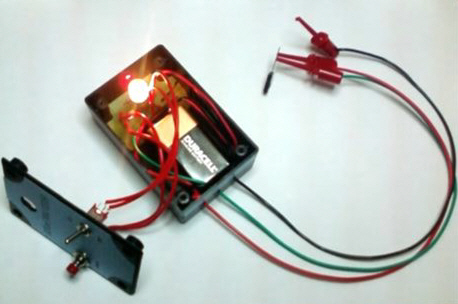

One of my ERG members sent to me these two photos below about the SCR tester that he had built. It was nicely done-congratulation!

scr tester

 scr tester

Likes(3)Dislikes(1)

7 Comments

  1. beh

    June 27, 2010 at 1:37 pm

    congartulations

    but jestine how this scr tester works because one of the hook that i do not know is A OR K OR G is not conected to scr is conected to air
    but the bulb is on?? or may be is a new invention in scr tester?!
    thanks
    beh

    Likes(0)Dislikes(0)
  2. beh

    June 27, 2010 at 1:51 pm

    THE BLACK WIRE IN BOTH PICTURES IS FREE AND NOT CONECTED TO SCR
    BLACK MUST BE CATHOD WIRE THAT GOES TO HOOK AND HOOK GOES TO SCR ?

    Likes(0)Dislikes(0)
  3. Waleed

    June 28, 2010 at 2:21 am

    I built it but the main problem is I can not find test probs for the project..could you please tell me where can I order them from? thanks

    Likes(0)Dislikes(0)
  4. admin

    June 28, 2010 at 5:20 am

    H Beh,

    Actually once the scr is triggered, you can remove the gate pin and the bulb will still light.

    Jestine

    Likes(0)Dislikes(0)
  5. admin

    June 28, 2010 at 5:29 am

    HI Waleed,

    Try this link:

    http://www.maplin.co.uk/module.aspx?moduleno=46225

    Jestine

    Likes(0)Dislikes(0)
  6. beh

    June 28, 2010 at 7:09 am

    DEAR JESTINE
    any way i do not share my prize with this ERG member
    thax
    beh

    Likes(0)Dislikes(0)
  7. admin

    June 29, 2010 at 7:58 am

    HI Beh,

    There is no prize for this project. If there is a prize i will let all know about it.

    Jestine

    Likes(0)Dislikes(0)
