ATX Power Supply Repaired















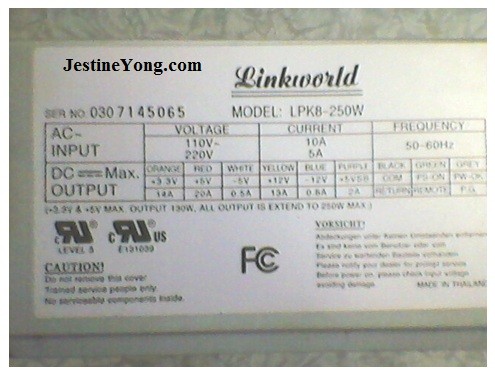

Last week my boss brought to me an ATX power supply for repair.



The complaint was no display when connected to the CPU Motherboard.

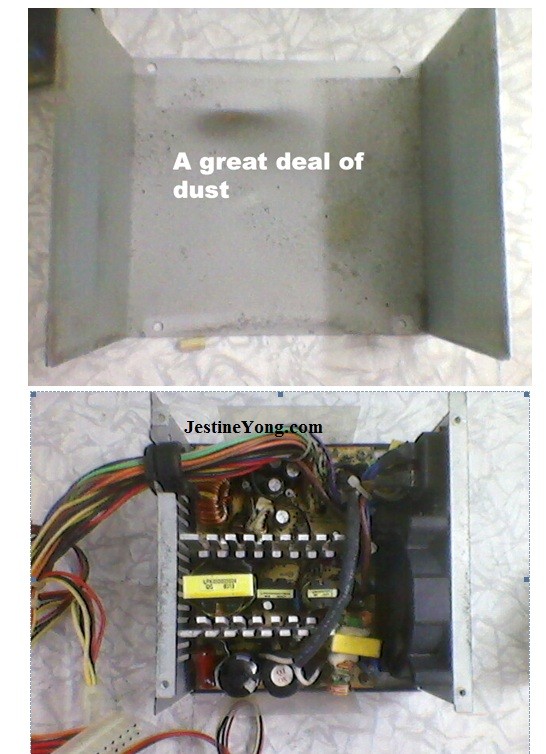

I found the power supply was very dirty internally once the cover was opened.

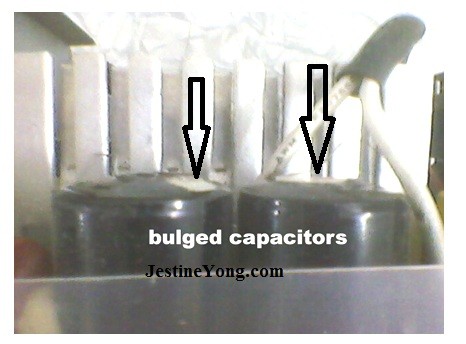

The first thing to do is to scan around for any bad component. I saw two bulged main filter capacitors and I believe this was the cause of the problem.

I cleaned the dust and dirt first before replacing the two bulged electrolytic capacitors.





Both the capacitors value was 680uf/200volt. The display appeared once the power supply was connected to the CPU Motherboard. It was an easy repair and does not take much time to finish the job.
