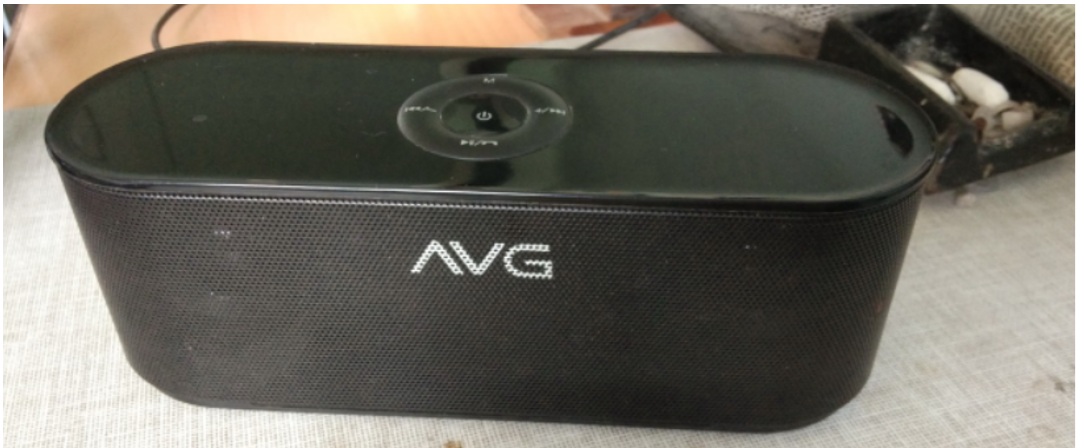

AVG F3 – Black Portable Bluetooth Speaker

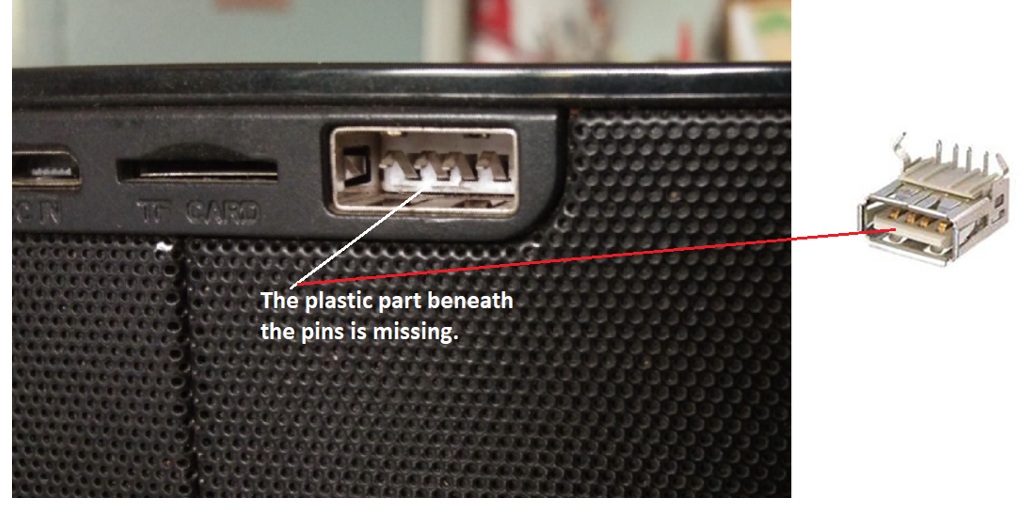

I came across a Bluetooth speaker with a non-functional USB port. Upon inspection, I discovered that the USB connector was damaged internally; the plastic piece inside the port that holds the pins in place was missing.

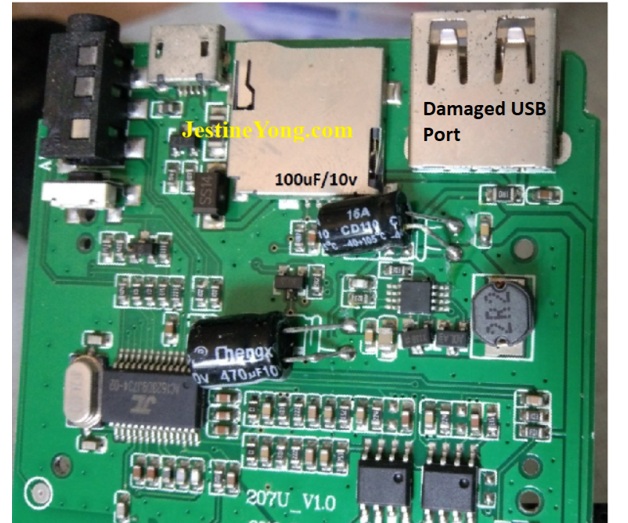

First, the PCB must be checked for any further damage; replacing the socket on the PCB is an easy task once the inspection is done.

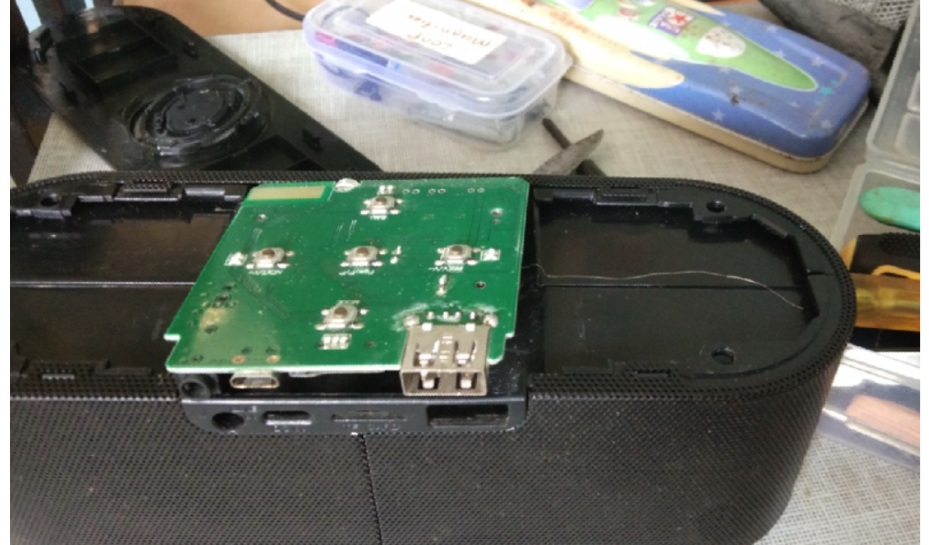

Therefore, remove the top cover carefully, as it is secured by plastic locking.

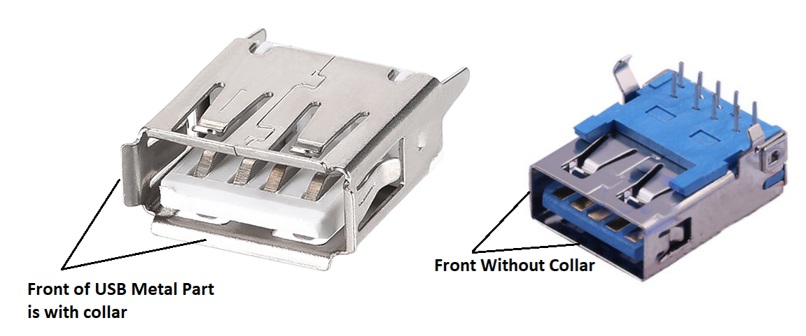

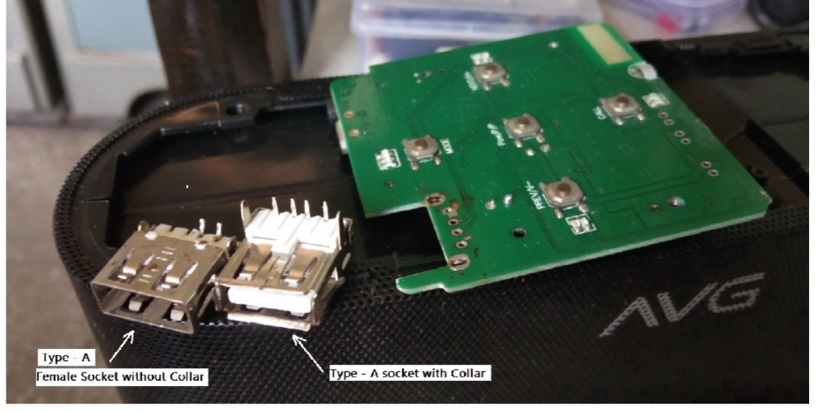

I desoldered the USB socket and replaced it with one of the spare sockets I had bought for a computer; however, I ran into a problem—it wouldn’t fit into the cabinet. Because its physical shape at the front was different, it wouldn’t fit into the opening.
I can’t find this type of USB socket in the local market. I searched online too, but I’m only coming across sockets with different configurations—like vertical mounts, L-shapes, and so on. What seemed like a simple task has now stalled. I don’t want to damage the plastic housing where the socket fits because the lining is very thin; if it breaks while I’m trying to reshape it, I’ll be in trouble. So, I’ve put this repair on hold until I can source the right parts.
I put the repair on hold until I could source the right parts. A few days later, I visited the electronics market; I searched extensively but couldn’t find the specific socket. one shopkeeper told me he could arrange it if I ordered a certain quantity. I didn’t need a large quantity, so he suggested I leave a sample with him, promising to deliver the part as soon as it arrived. I left the part with him. Upon returning, I asked some technician friends if they needed it, and they were all willing to buy it in small quantities.

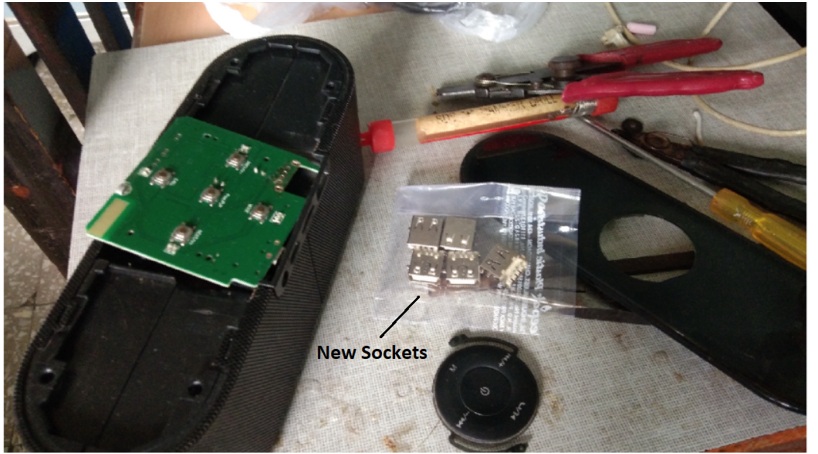

I placed the order the next day, and the items reached me after seven days. I received a total of 25 pieces and distributed 5 pieces each to the technicians according to their requirements.
On arrival I started the work again.

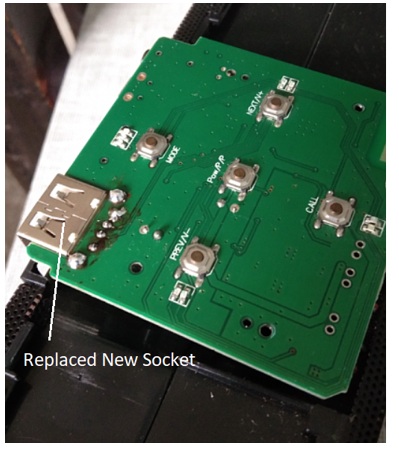

Replaced the new Socket.

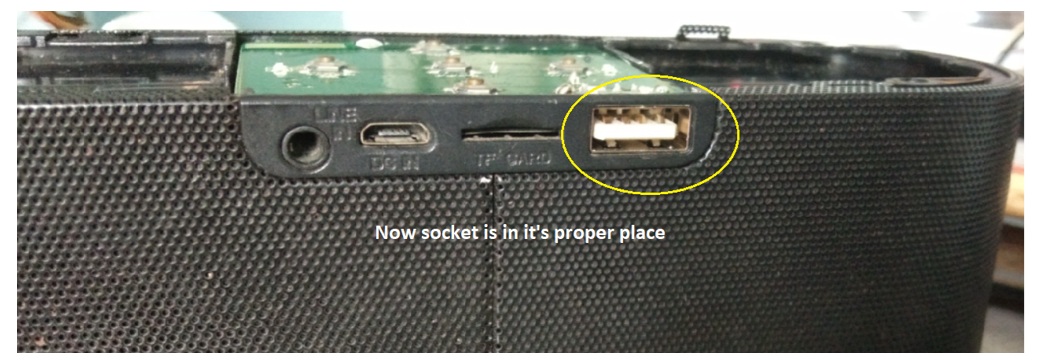

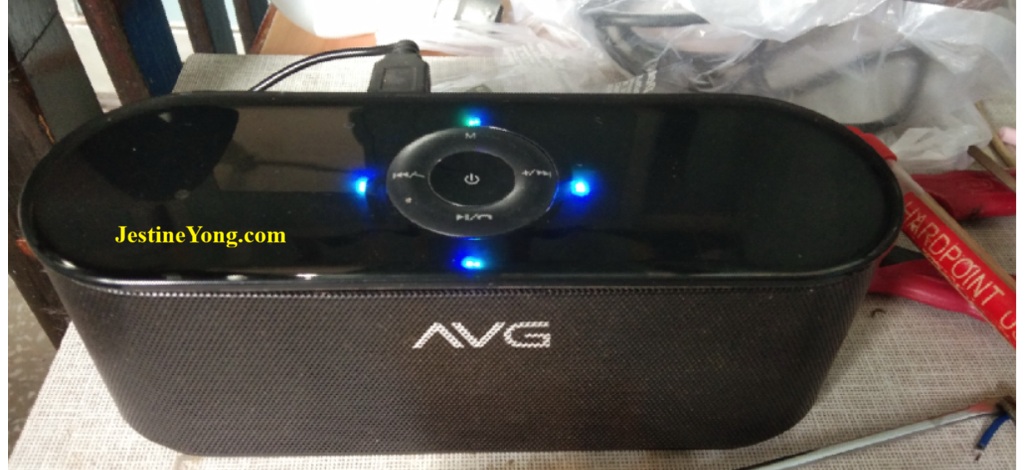

Fitted top plastic Cover in its place & tested for working, now device is ready for the pickup.
It is good practice to stock the material in small quantity when parts locally not available.
This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.
