Circuit Burnt Beyond Recognition

By on December 22, 2014
dead lizard in monitors

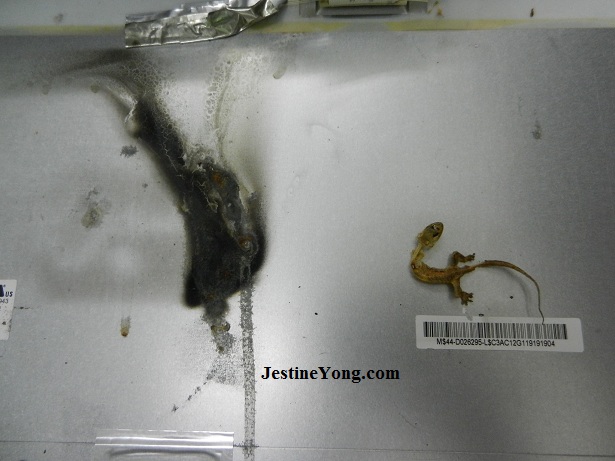

A customer sent to me a LCD Monitor with the complaint of no power. The moment the metal cover is removed guess what I saw? Two burnt dead lizard yike!

dead lizard in lcd monitor

dead lizard

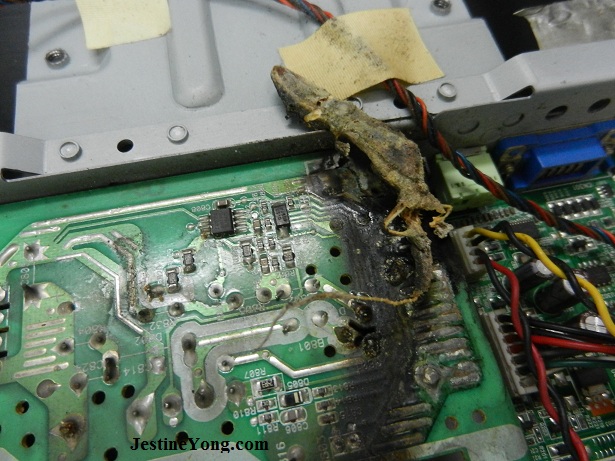

Judging by the badly burnt circuit area I had called the customer telling him that the LCD Monitor was beyond repair.

Even if you have cleaned up the circuit board and replaced all the bad power components the chances for it to work again would be slim because the mainboard could be affected as well.

dead lizard in monitor

I was wondering how these two lizards managed to go into the power board. After I had closed the Monitor I could see there was a small gap at the right side of the back cover and this is the reason why both the lizards could entered.

Likes(38)Dislikes(0)

8 Comments

  1. Waleed Rishmawi

    December 23, 2014 at 5:04 am

    i have seen it happen in many electronic devices like remote control power board, an LCD screen and a electrical power board circuit. it is shocking how they manage to get in and make it hard on us electronic technicians,

    Likes(0)Dislikes(0)
    • admin

      December 23, 2014 at 9:14 pm

      Hi Waleed,

      I have seen many blown dot matrix printer power supplies due to the lizard problem too.

      Jestine

      Likes(0)Dislikes(0)
  2. Amir Mukhtar

    December 23, 2014 at 2:24 pm

    Good Job

    Thanks you
    Amir Mukhtar

    Likes(0)Dislikes(0)
  3. Robert

    December 24, 2014 at 1:15 am

    Poor lizards!

    Likes(1)Dislikes(0)
  4. Tito

    January 14, 2015 at 6:13 pm

    Jestine,i don't understand how these lizards are made. They are always a trouble with electronic power supplies. May be they go inside in search of coackroches.

    Likes(0)Dislikes(0)
    • admin

      January 14, 2015 at 8:02 pm

      Hi Tito,

      Probably the heat or finding new place.

      Jestine

      Likes(0)Dislikes(0)
  5. AKASH GUNJAL

    July 13, 2015 at 1:05 pm

    why can't the boards be repaired

    Likes(1)Dislikes(0)
  6. Blackideas

    January 19, 2017 at 9:46 pm

    In France exists a common expression that says "there's no lizards" when everything is OK, perhaps it comes from this kind of problem! 😉

    Likes(1)Dislikes(0)
