Circuit Track Problem In B.P.M

By on January 20, 2015
blood pressure monitor repair























blood pressure monitor repair8

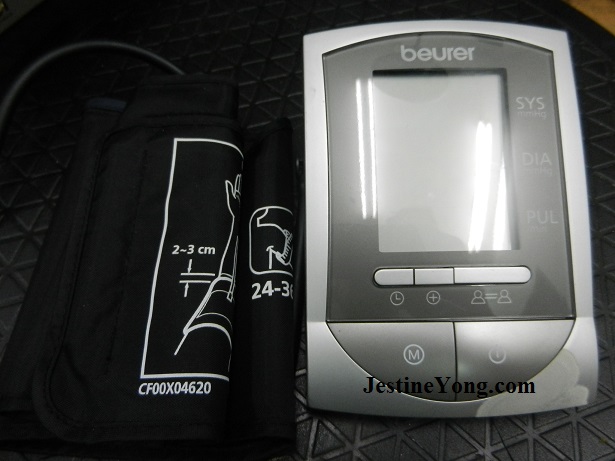

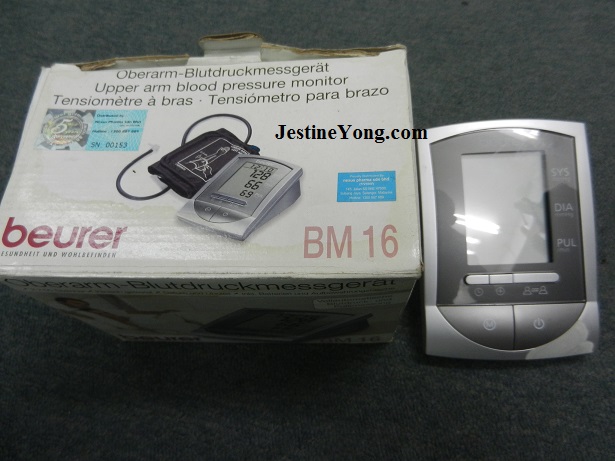

I have a blood pressure monitor (B.P.M) with the brand name of Beurer.  I use it to check my blood pressure. Due to the busy schedule (last year) I have forgotten to use the device until my wife reminded me to use it.

The moment I pressed on the power button, the display would appear and then shutdown (totally blank in the LCD display).

blood pressure monitor repairNo display

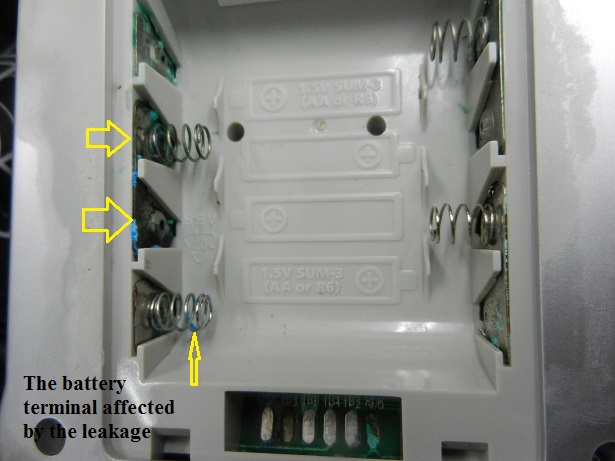

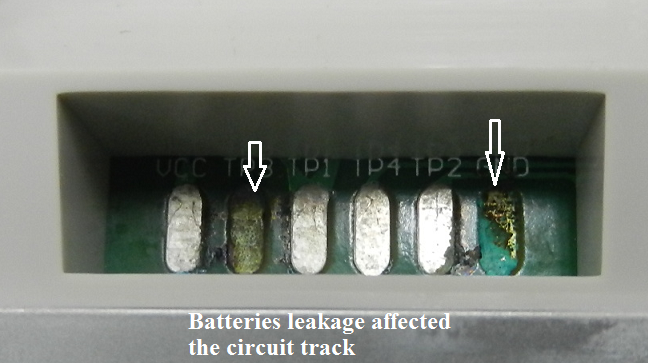

Once the batteries cover was opened I saw the batteries already leaked. The leakage did affect the circuit line/track as seen from the photo below.

blood pressure monitor repair7

blood pressure monitor repairs

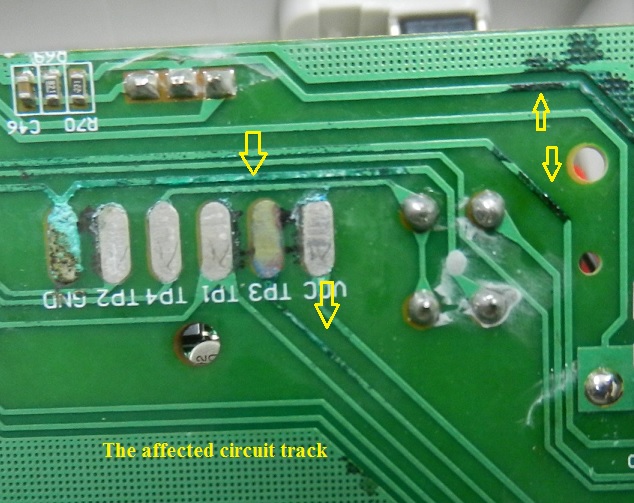

I had to open up the cover and check for any broken circuit line. I found one of the circuit tracks was broken and had to clean the area with Thinner before using a wire to make the connection.

blood pressure monitor repair3

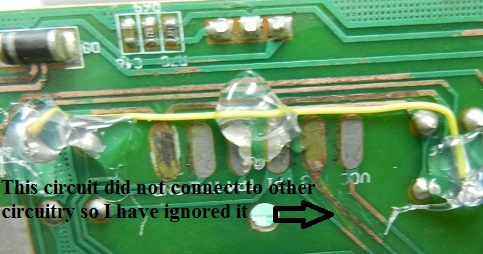

Once done I tested it and no more shutting down. I applied some hot glue on the wire and closed back the cover.

blood pressure monitor repair6

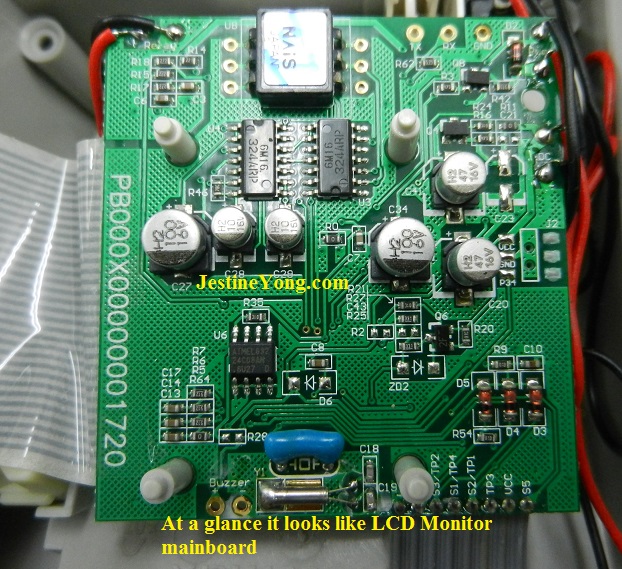

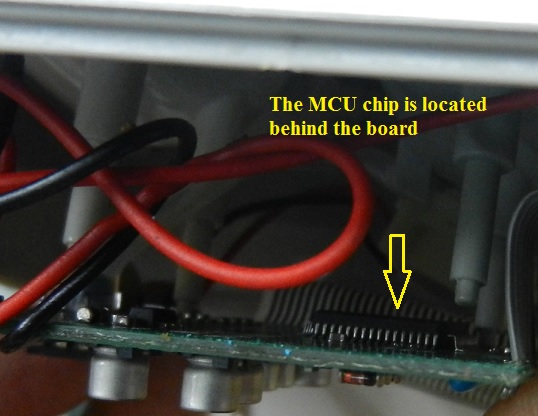

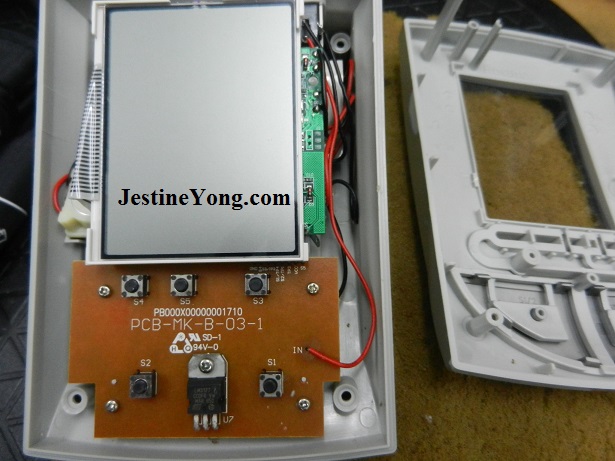

This is how the internal part look like:

blood pressure monitor repair1

blood pressure monitor repair2

blood pressure monitor repair4

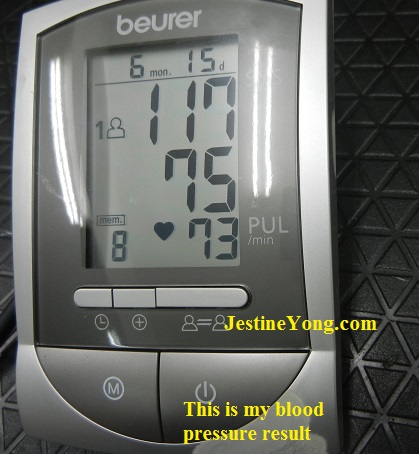

I turned the set On and checked on my blood pressure. Below is the result that I got. What do you think about the result?

blood pressure monitor repair5

The price of this tester is about USD100+. With a simple repair work, this device was brought back to life.
