Dead Battery And Bulgy Cap Replaced In BOAT PARTYPAL60 Portable Amplispeaker
This was brought by a customer, to whom I had serviced and given a Sony 5.1 Speaker System long back. The complaint reported was that the charger port was not working and it has been spoiled by many people handling it for use in parties! Since Christmas was at the doors, he wanted it to be repaired on priority, which I obliged, keeping away my other pending works just to keep up his spirit. I opened the top control panel by removing four screws.
The four connectors of the speaker wires were all pasted and I had to really struggle to remove the bonding without causing damages. Let us see the inside on dismantling the boards one by one:

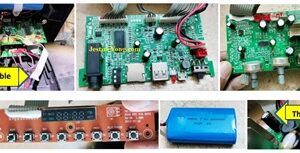

One flexible cable of a four pin connector was found cut (see yellow arrow in the first picture above) and probably someone had tried to open the unit without knowing how to do it and tore the cable that was going into the bottom unit for illumination of LEDs surrounding the speakers. I noticed that the battery was totally discharged and it had reached an irrecoverable stage. One 1000uF/16V Cap was found bulgy.
Replaced the cap and obtained an equal type battery, which was slightly better rated and fixed it in place. Since the battery had its own charging protection circuit, I ensured that it was the same that I bought. But the polarity was differently positioned. So, slid the pins out and put it in right place. Let us have a look at these:
If we do not take care of the polarity when replacing a battery, we may end up blowing up the unit. Then I checked all press to on buttons and ensured that there was no leakage and all were making proper contacts. Then switched on the unit and found it to be working very well. I used USB and Bluetooth connection from my mobile and also used FM Radio. It worked very well on all modes.
Having ensured that the set was working well, I dismantled the boards again and checked the charging port and found it to be defective, as the voltage was not detected at the PCB side. So replaced the port. The replacement port had only two legs in place of four in the original. So, I soldered the two pins and added two cut leads of components and soldered it on top to enable strength as this has to withstand hand pressure applied by the users. The port was using only two pins (+ and -), the first and last. So, I removed the pins from the middle of the new port so as to enable easy soldering without much struggle. The charging was taking place after I replaced the port. Let us have a look:
Then assembled the boards back and allowed the set to run for some more time before fixing the top portion back. As for the torn cable, I could not do anything as the screw holes were all blocked by potter wasps with mud and in all probability there might be living worms inside. If we try to open these, the screw drivers would not get a grip due to the greasy fluid. Nothing can clean up the holes thoroughly as these were deep inside.
Moreover, excess cleaning fluids would enter speakers and spoil it. I explained this to the customer and told him to wait for these to fly off after attaining full growth. He took delivery of the unit after paying my fees and thanked me to have attended to the set on the same day of admission. Mission accomplished with double satisfaction getting added to the collection.
