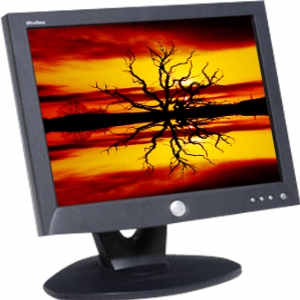

Dell 1504FP Using The Same Board As Samsung 153V

By on September 17, 2008

 dell1504fp

A buyer of mine emailed me this:

Jestine,

I recently bought your book and am working on two Dell 1504FP LCD
monitors. After working through the problems and solutions outlined I
have found that one of them has a shorted IC on the inverter board.
(This monitor is made by Samsung and is identical internally to the 153V
shown in your book.) In the book you list the IC as a 4532m, AD4E10, or
BBD3N13. The IC on my board has two lines of characters: 4600 and
AD4G33. Have you found a replacement part number for this IC. I am
having some trouble in locating one.

Thanks,
James

P.S. You may want to post on your blog that the Dell 1504FP LCD is the
same internally as the Samsung 153V.

And here is my replied to him:

Hi James,
Thanks for the support on my ebook. In fact you can get the original part from http://www.bluestar-online.com . The company provide a very good service. Okay i will post your info into my blog. Thanks!

Best regards,
jestine

Likes(1)Dislikes(0)

5 Comments

  1. zic

    September 20, 2008 at 10:31 pm

    hello jestine.
    very glad to read your article..and i want to tell you that i will copy your article for my blog.cause it's important in indonesia.sory if my english is bad ,i'm indonesian.
    I ussualy open your blog for search of a new tips and trik.it's help me for reader of indonesian.
    thank's very much.and if you don't want i copy your article with my blog, so tell me for my email.
    all the best
    ZIC

    Likes(0)Dislikes(0)
  2. admin

    September 21, 2008 at 8:29 am

    Hi Zic,
    You may channel your visitor to my blog but not copy from it. Thanks again for reading my blog! have a good day!

    Jestine

    Likes(0)Dislikes(0)
  3. Mujahid

    April 19, 2010 at 10:30 am

    Dear Friend

    I have samsung 153v lcd moniter its power is on but pic is not show brightly.its topo much dark brightness is not working
    having one ic is too hot and changed the board color. be311p ic
    i try to find in market no avaiable can u tell me compatible of this ic having 4 legs
    regards and thanks

    Likes(0)Dislikes(0)
  4. admin

    April 20, 2010 at 8:19 am

    Hi Mujahid,

    I have not seen this part number before as i believe Samsung may have few different version of board. May i know where is this IC located and can you please confirm if this IC is 4 legs or 8 legs?

    Jestine

    Likes(0)Dislikes(0)
  5. moniem

    March 25, 2014 at 3:15 pm

    good job

    Likes(0)Dislikes(0)
