Discussion Forum For Anatek’s Products

By on February 5, 2009

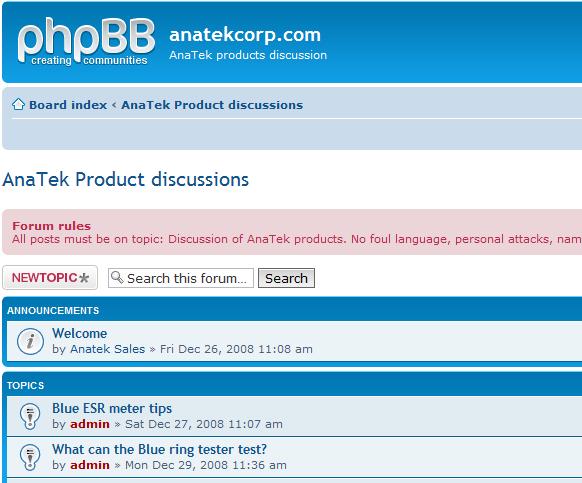

If you wish to ask question and learn more tips about the kitset of Blue ESR and Blue Ring Tester please click on the photo to visit the Forum.

anatek forum

Likes(1)Dislikes(0)

4 Comments

  1. jgmanza

    November 18, 2009 at 10:11 pm

    Hello Jestine, I got my component analyser from John.

    When I tested aa N channel Fet the component anlayser gave the pinout, leakage currentand voltage. It did not say short circuit. Does this mean that the mosfet is good? or do I have to compare the values form the analyser to the Datasheet?

    I tested 2 HOT that tested bad with my analog meter and it said short circuit. This means the 2 HOT were not good.

    Does this means that if the mosfet was bad, it would say short circuit also?

    Thanks
    Jorge

    Likes(0)Dislikes(0)
  2. admin

    November 19, 2009 at 7:24 am

    HI Jorge,

    When I tested aa N channel Fet the component anlayser gave the pinout, leakage currentand voltage. It did not say short circuit. Does this mean that the mosfet is good? or do I have to compare the values form the analyser to the Datasheet?

    YES IT IS GOOD

    ==================

    I tested 2 HOT that tested bad with my analog meter and it said short circuit. This means the 2 HOT were not good.

    YES, BUT I GUESS THIS METER CAN'T TEST HOT THAT HAVE DAMPER DIODE BUILT IN.

    ==================

    Does this means that if the mosfet was bad, it would say short circuit also?

    YES

    ===================

    Jestine

    Likes(0)Dislikes(0)
  3. Austin

    October 21, 2016 at 9:26 am

    Pls i nid help,i am repairing a peavey mark iii series when i insert plug in the input it begins to humm with the control volume please how do i stop the humming

    Likes(0)Dislikes(0)
    • Jestine Yong

      October 21, 2016 at 4:03 pm

      Hi Austin,

      Check the electrolytic capacitor for high ESR value.

      Jestine

      Likes(0)Dislikes(0)
