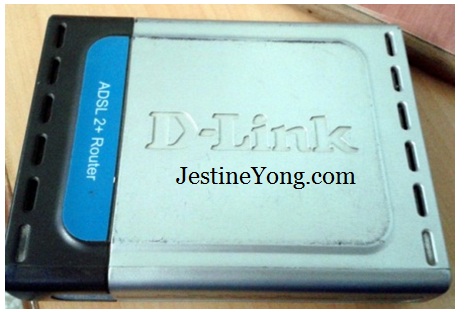

DLINK GLB 802C ADSL Internet Router Repaired

By on August 1, 2014
dlink router repair





















dlink router repair

There was a phone call from a customer saying there was problem with the Internet connection. He had already called internet service provider and after troubleshooting the guy concluded the line was good and the problem was on the hardware. So I went to visit my customer office and started troubleshooting.

dlink router repairing

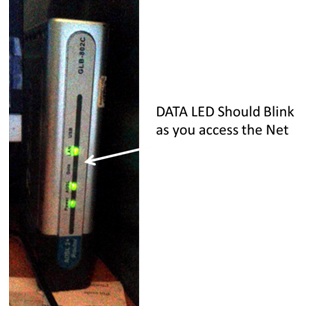

First I have checked if there is any loose connection between PC and Router – but everything was ok. Now checked the Modem Router Light indication I am able to see Power light is on, ADSL Light is on, Now the problem I found is DATA light is “off ‘in online it should Blink as you access net, further checked LAN light that is also on. So I have found the location of fault that is router itself. This type of problem arises when Router is not configured properly hence I have checked router setting as per internet service provider guideline I found everything was ok as per their requirement.



Now what I asked myself.  I have decided to take the router to my service station for further diagnosis. I opened the router and took out the PCB for physical analyzing for burnout or any other physical damage but I have found nothing wrong on component side.

 dlink router repairs

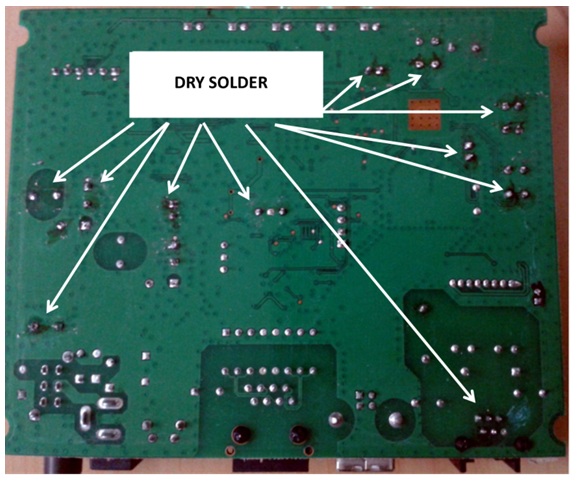

But as I turned the PCB on the solder side I found many dry joints.  I started to revive the dry joint by applying new solder. I cleaned the PCB with isopropyl alcohol and applied new solder on suspected joints .

 dlinkrouterrepair

After applying fresh solder I connected the router to my setup and now I can see the Light of hope yes Data Light is now blinking and I can able to access the internet.

This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.

Please give a support by clicking  on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.





Likes(36)Dislikes(1)

5 Comments

  1. Robert

    August 1, 2014 at 8:25 am

    Good job Yogesh. Thanks for the article.

    Likes(1)Dislikes(0)
  2. Waleed Rishmawi

    August 1, 2014 at 3:29 pm

    I have worked so many times on such routers and often the case was cold soldering joints. one time i have faced a problem in the port itself but also have to do with cold soldering joints. good job on the repair. keep up the good work

    Likes(0)Dislikes(0)
  3. beh

    August 1, 2014 at 4:30 pm

    YOGESH: one time more you solved the problem thanks for sharing this with us

    Likes(1)Dislikes(0)
  4. Humberto

    August 19, 2014 at 9:54 pm

    Good repair Yogesh Panchal, keep up the good work.

    Likes(0)Dislikes(0)
  5. Amir Mukhtar

    May 20, 2015 at 2:05 pm

    Mr. Yogesh Panchal Thanks you for your nice work Sharing.

    Good Job

    Amir Mukhtar Ashrafi
    Pakistan

    Likes(0)Dislikes(0)
