Dual Schottky Diodes Package Replacement

By on November 8, 2012

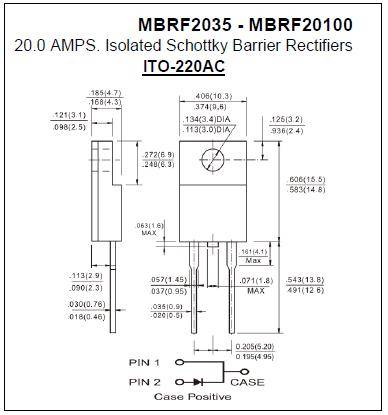

Yesterday I have posted about using a single universal Schottky diode for replacement. Today is the dual Schottky diode Universal replacement. The number I'm using is MBRF20100 and it is rated as 20 amp 100 volt. Assuming if the secondary diode is a single Schottky diode, you can always modify this dual schottky diode but you need to add in a heatsink. I have done this modification and it worked perfectly good. Check out the spec of the MBRF20 series SChottky diode by clicking on the photo.

schottky diodes

Likes(1)Dislikes(0)

6 Comments

  1. beh

    November 9, 2012 at 2:46 am

    HI MR YONG
    thanks for good info.
    beh

    Likes(0)Dislikes(0)
    • Jestine Yong

      November 9, 2012 at 6:42 am

      HI Beh,

      You are welcome!

      Jestine

      Likes(0)Dislikes(0)
  2. Abdul Haleem

    November 9, 2012 at 7:46 pm

    What about MBRF20150 that I came across in a circuit? Is it rated 150V??
    Is there MBRF 20200 as well?

    Likes(0)Dislikes(0)
    • Jestine Yong

      November 9, 2012 at 8:20 pm

      Hi Abdul,

      Yes you are right please check the link below:

      http://pdf1.alldatasheet.com/datasheet-pdf/view/201363/TSC/MBRF20150.html

      Jestine

      Likes(0)Dislikes(0)
  3. Hem

    November 11, 2012 at 12:54 pm

    Samsung LCD  Model: LA40D550K7WXMV ,TV have sound & video but white line on screen.

    Likes(0)Dislikes(0)
    • Jestine Yong

      November 12, 2012 at 8:23 pm

      Hi Hem,

      It could be the t-con or the lcd panel fault. Try call out the osd menu. If the osd menu also have white lines across it then chances the lcd panel is the problem. Check also for the LVDS cable.

      jestine

      Likes(0)Dislikes(0)
