How To Remove SMD IC

By on May 10, 2009

smd

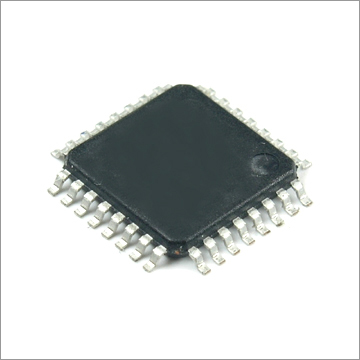

I have a repair friend who does not have SMD rework station so what he did was he made sure that the SMD IC is at fault then he use a cutter to cut out all the SMD IC pins. He then clean the circuit line with the help of soldering paste. Once done he put the new SMD IC on the board and carefully solder it with the help of solder wick. The result was as good as if someone use a rework station. He could do that because he was very sure the SMD IC was infact faulty and he has the part.

If you have a junk board, you could follow the way he used in removing and putting back SMD IC. Now who says without SMD Rework station one cannot replace SMD IC? He already done that and you could do it too.

Likes(4)Dislikes(1)

4 Comments

  1. Bill Kesler

    May 26, 2009 at 1:05 am

    I used to use a small butane powered soldering iron (weller) with a hot air tip and trusty dental pick to remove these SMD devices, then I discovered the joys of "Chip Quik". The kit consists of a small tube of flux and a coil of special solder that stays liquid for about 10 seconds before solidifying. To remove a device; wick the pins of the device to remove most of the solder, apply the flux, then melt the "Chip Quick" solder on all of the pins. When all of the pins have been treated, heat the solder again, and pry the device from the board, it should take only a few seconds to do this, and all of the solder will still be liquid allowing easy removal; be sure that you have noted the orientation of the device before removal so the new device can be properly installed; sometimes the "pin 1" identifier can be hard to see on these SMD devices. After removal, wick the solder off of the pads and clean with the supplied wipes and you are now ready to install the new device. This product was designed for SMD removal, but I have found it very useful for removing some through hole devices as well, flyback transformers with the grommets for example, it can be difficult to free up the pins without an expensive re-work station, or lots of wick and time, but "Chip Quik" makes fast work of these difficult removal jobs. Go to http://www.chipquikinc.com and check it out.
