Laptop, LCD TV and Monitor Backlight Tester

By on October 1, 2011

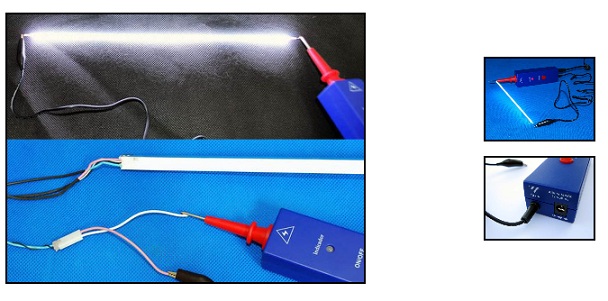

ccfl backlight tester

Found this tester in ebay and the tester can be used to test a backlight up to 1000mm. The price is quite reasonable. For more information you can visit the website and check from the seller. Please click on the photo to visit the ebay website.

Likes(7)Dislikes(0)

16 Comments

  1. IMOH

    October 13, 2011 at 4:29 am

    My LCD back light is not on,the screen display fainting images, so i guess the back light is bad. Pls how can i fix this, (2) what voltage powers the LCD back light. thanks

    Likes(0)Dislikes(0)
  2. admin

    October 13, 2011 at 12:13 pm

    HI Imoh,

    Make sure there is supply voltage to inverter ic. No voltage the display will become faint. The ac voltage to the backlight is about 450vac to 1000vac depending on the model.

    Jestine

    Likes(0)Dislikes(0)
  3. IMOH

    October 14, 2011 at 9:27 am

    Thank sir for ur reply. Have tested it,12volt dc is supplied to d inverter circuit,fuse is ok stil screen is dark. You can only know dat the screen is displaying if u point a flash light touch on it. Pls sir what could b d problem n solution. Tanks

    Likes(0)Dislikes(0)
  4. admin

    October 15, 2011 at 2:32 am

    HI Imoh,

    If there is supply voltage to the inverter ic. Then you need to check if there is any output waveform or not. If do not have you need to replace the inverter ic.

    Jestine

    Likes(0)Dislikes(0)
  5. e-rool

    October 20, 2011 at 1:45 am

    salam...
    boleh tak bgtau camne nk idupkan LED yg guna 3 bateri AA 1.5V m'gunakan bateri 12V? tlg bgtau caranya dgn details sbb klau kita sambung terus LED akan terbakar sbb arus yg tggi...terima kasih..

    Likes(0)Dislikes(0)
  6. admin

    October 21, 2011 at 2:17 am

    HI,

    Sambungkan 330ohm resistor secara siri dgn bekalan kuasa.

    Jestine

    Likes(0)Dislikes(0)
  7. dave

    May 22, 2012 at 1:26 am

    sir jestine hi

    I have a problem in my computer power supply  no switch, I check the puse, bridge diode it is working fine
    and when i connect to the power
    then i switch still not switching  what is the sir? can I ask you help? thank you
    dave


    Likes(0)Dislikes(0)
    • Jestine Yong

      May 27, 2012 at 4:09 am

      Hi Dave,

      Have you check all the components i9n the primary side? What about secondary diodes and filter cap?

      Jestine

      Likes(0)Dislikes(0)
  8. Matt

    June 1, 2012 at 3:55 am

    Hi,
    Do you know of anywhere in Singapore that sells 2mm diameter x 85mm backlight lamp for LCD montior. Have been trying to find a supplier but no one has that small a size. Monitor is 4inch by 4inch.
    Any help be appreciated
    Matt

    Likes(0)Dislikes(0)
    • Jestine Yong

      June 1, 2012 at 8:05 am

      Hi Matt,

      Sorry no info on this. Try ICCFL.com

      Jestine

      Likes(0)Dislikes(0)
  9. Toni

    June 4, 2012 at 9:38 am

    Hi Jestine.

    I’m looking for a ccfl tester and I see the same tester that you say above.
    I have one question to solve before I order. How this tester can regulate the voltage/current at different lengths of lamps.

    Toni

    Likes(0)Dislikes(0)
    • Jestine Yong

      June 5, 2012 at 6:01 am

      HI Tony,

      For more information I suggest that you check with the seller. They should have the info of the tester spec.

      Jestine

      Likes(0)Dislikes(0)
  10. Andrew

    February 18, 2019 at 6:19 pm

    My Sony Bravia Led Tv -KDL60EX700 blinks 5 times. No picture & audio. Did try to restart.. goes green then after a few seconds back to standby red blinking 5 times.. Whay may be the problrm sir? tq

    Likes(0)Dislikes(0)
    • Jestine Yong

      February 20, 2019 at 2:29 pm

      Hi Andrew,
      Possible the memory IC could have corrupted if all the dc supply voltage to the ICs are good.

      Jestine

      Likes(0)Dislikes(0)
  11. DOĞAN

    September 4, 2019 at 8:00 pm

    Merhaba. Türkiyeden selamlar olsun. Siteniz ve siz harikasınız.
    ccfl lambalara giden ac voltajın frekansı 50 hz mi? teşekkürler.
    ===================================================
    Hello there. Whether Greetings from Turkey. Your site and you are great.
    Is the frequency of ac voltage to ccfl lamps 50 Hz? thanks.

    Likes(0)Dislikes(0)
    • Jestine Yong

      September 5, 2019 at 8:01 am

      Hi Dogan,

      It is usually more than 50Khz.

      Jestine

      Likes(0)Dislikes(0)
